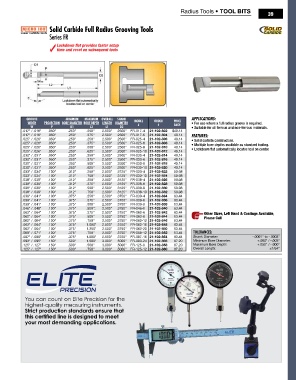

Radius Tools • TOOL BITS
39
Solid Carbide Full Radius Grooving Tools
Series FR
Lockdown flat provides faster setup
time and reset on subsequent tools
GRoove MiniMuM MaxiMuM oveRall Shank Model oRdeR PRiCe APPLICATIONS:
WidTh PRojeCTion BoRe diaMeTeR BoRe dePTh lenGTh diaMeTeR # # eaCh • For use where a full radius groove is required.
W P d1 l2 l1 d2 • Suitable for all ferrous and non-ferrous materials.
.017" / .018" .050" .250" .250" 2.500" .2500" FR-017-4 21-102-802 $40.14
.017" / .018" .050" .250" .375" 2.500" .2500" FR-017-6 21-102-804 40.14 FeATureS:
.025" / .026" .050" .250" .250" 2.500" .2500" FR-025-4 21-102-806 40.14 • Solid carbide construction.
.025" / .026" .050" .250" .375" 2.500" .2500" FR-025-6 21-102-808 40.14 • Multiple bore depths available as standard tooling.
.025" / .026" .050" .250" .500" 2.500" .2500" FR-025-8 21-102-810 40.14 • Lockdown flat automatically locates tool on center.
.025" / .026" .050" .250" .625" 2.500" .2500" FR-025-10 21-102-812 40.14
.030" / .031" .050" .250" .250" 2.500" .2500" FR-030-4 21-102-814 40.14
.030" / .031" .050" .250" .375" 2.500" .2500" FR-030-6 21-102-816 40.14
.030" / .031" .050" .250" .500" 2.500" .2500" FR-030-8 21-102-818 40.14
.030" / .031" .050" .250" .625" 2.500" .2500" FR-030-10 21-102-820 40.14
.033" / .034" .100" .312" .250" 2.500" .3125" FR-033-4 21-102-822 50.08
.033" / .034" .100" .312" .750" 2.500" .3125" FR-033-10 21-102-824 50.08
.038" / .039" .100" .312" .250" 2.500" .3125" FR-038-4 21-102-826 50.08
.038" / .039" .100" .312" .375" 2.500" .3125" FR-038-6 21-102-828 50.08
.038" / .039" .100" .312" .500" 2.500" .3125" FR-038-8 21-102-830 50.08
.038" / .039" .100" .312" .750" 2.500" .3125" FR-038-10 21-102-832 50.08
.039" / .041" .100" .375" .250" 2.500" .3750" FR-039-4 21-102-834 63.44
.039" / .041" .100" .375" .375" 2.500" .3750" FR-039-6 21-102-836 63.44
.039" / .041" .100" .375" .500" 2.500" .3750" FR-039-8 21-102-838 63.44
.046" / .048" .100" .375" .500": 2.500" .3750" FR-046-8 21-102-840 63.44
.062" / .064" .100" .375" .375" 2.500" .3750" FR-062-6 21-102-842 63.44 Other Sizes, Left Hand & Coatings Available,
.062" / .064" .100" .375" .500" 2.500" .3750" FR-062-8 21-102-844 63.44 Please Call
.062" / .064" .100" .375" .750" 2.500" .3750" FR-062-12 21-102-846 63.44
.062" / .064" .100" .375" 1.000" 2.500" .3750" FR-062-16 21-102-848 63.44
.062" / .064" .100" .375" 1.250" 2.500" .3750" FR-062-20 21-102-850 63.44
.069" / .071" .100" .375" .750" 2.500" .3750" FR-069-12 21-102-852 63.44 ToleRanCeS:
.087" / .089" .100" .375" 1.000" 2.500" .3750" FR-087-16 21-102-854 63.44 Shank Diameter: -.0001" to -.0003"
.093" / .095" .150" .500" 1.500" 3.000" .5000" FR-093-24 21-102-856 87.20 Minimum Bore Diameter: +.000" / -.005"
.125" / .127" .150" .500" .500" 3.000" .5000" FR-125-8 21-102-858 87.20 Maximum Bore Depth: +.050" / -.000"
.125" / .127" .150" .500" .750" 3.000" .5000" FR-125-12 21-102-860 87.20 Overall Length: ±1/64"
