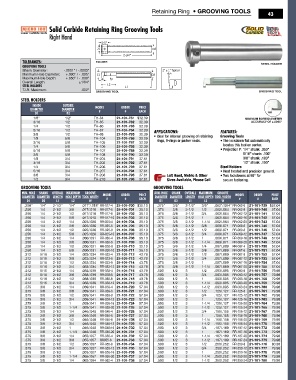

Page 45 - All Industrial Tool Supply | General Catalog

Retaining Ring • GROOVING TOOLS
43

Solid Carbide Retaining Ring Grooving Tools
Right Hand

ToleRanCeS: HOLDER STEEL HOLDER
GRoovinG ToolS
Shank Diameter: -.0001" / -.0003"
Minimum Hole Diameter: +.000" / - .005"
Maximum Hole Depth: +.050" / - .000"
Overall Length: ±1/64"
STeel HoldeRS
T.I.R. Maximum: .002"
GROOVING TOOL GROOVING TOOL
STeel HoldeRS
inSide ouTSide
diameTeR diameTeR model oRdeR PRiCe
eaCH
#
#
d1 d2
1/8" 1/2" TH-84 21-101-781 $32.39 mINImum bORE DIamETER
3/16 1/2 TH-85 21-101-782 32.39 accuRacy Of ±.0005"
1/4 1/2 TH-86 21-101-783 32.39
5/16 1/2 TH-87 21-101-784 32.39 APPLICATIONS: FeATureS:
3/8 1/2 TH-88 21-101-785 32.39 • Ideal for internal grooving of retaining Grooving Tools
1/8 5/8 TH-104 21-101-786 32.39
3/16 5/8 TH-105 21-101-787 32.39 rings, O-rings or parker seals. • The lockdown flat automatically
1/4 5/8 TH-106 21-101-788 32.39 locates this tool on center.
5/16 5/8 TH-107 21-101-789 32.39 • Projection P: 1/4" shank: .050"
3/8 5/8 TH-108 21-101-790 32.39 5/16" shank: .100"
1/8 3/4 TH-204 21-101-791 37.61 3/8" shank: .100"
3/16 3/4 TH-205 21-101-792 37.61 1/2" shank: .150"
1/4 3/4 TH-206 21-101-793 37.61 Steel Holders
5/16 3/4 TH-207 21-101-794 37.61 • Heat treated and precision ground.
3/8 3/4 TH-208 21-101-795 37.61 Left Hand, Metric & Other • Two lockdowns at 90° for
1/2 3/4 TH-210 21-101-796 37.61 Sizes Available, Please Call secure fastening.
GRoovinG ToolS GRoovinG ToolS
min. Hole SHank oveRall maximum GRoove model oRdeR PRiCe min. Hole SHank oveRall maximum GRoove model oRdeR PRiCe
diameTeR diameTeR lenGTH Hole dePTH Tool WidTH # # eaCH diameTeR diameTeR lenGTH Hole dePTH Tool WidTH # # eaCH
d1 d2 l1 l2 W d1 d2 l1 l2 W
.250" 1/4" 2-1/2" 1/4" .017"/.018" RR-017-4 21-101-700 $35.10 .375" 3/8" 2-1/2" 3/8" .062"/.064" RR-062-6 21-101-739 $57.04
.250 1/4 2-1/2 3/8 .017/.018 RR-017-6 21-101-701 35.10 .375 3/8 2-1/2 1/2 .062/.064 RR-062-8 21-101-740 57.04
.250 1/4 2-1/2 1/2 .017/.018 RR-017-8 21-101-702 35.10 .375 3/8 2-1/2 3/4 .062/.064 RR-062-12 21-101-741 57.04
.250 1/4 2-1/2 5/8 .017/.018 RR-017-10 21-101-703 35.10 .375 3/8 2-1/2 1 .062/.064 RR-062-16 21-101-742 57.04
.250 1/4 2-1/2 1/4 .025/.026 RR-025-4 21-101-704 35.10 .375 3/8 2-1/2 1-1/4 .062/.064 RR-062-20 21-101-743 57.04
.250 1/4 2-1/2 3/8 .025/.026 RR-025-6 21-101-705 35.10 .375 3/8 2-1/2 3/8 .069/.071 RR-069-6 21-101-745 57.04
.250 1/4 2-1/2 1/2 .025/.026 RR-025-8 21-101-706 35.10 .375 3/8 2-1/2 1/2 .069/.071 RR-069-8 21-101-746 57.04
.250 1/4 2-1/2 5/8 .025/.026 RR-025-10 21-101-707 35.10 .375 3/8 2-1/2 3/4 .069/.071 RR-069-12 21-101-747 57.04
.250 1/4 2-1/2 1/4 .030/.031 RR-030-4 21-101-708 35.10 .375 3/8 2-1/2 1 .069/.071 RR-069-16 21-101-748 57.04
.250 1/4 2-1/2 3/8 .030/.031 RR-030-6 21-101-709 35.10 .375 3/8 2-1/2 1-1/4 .069/.071 RR-069-20 21-101-749 57.04
.250 1/4 2-1/2 1/2 .030/.031 RR-030-8 21-101-710 35.10 .375 3/8 2-1/2 1/4 .087/.089 RR-087-4 21-101-750 57.04
.250 1/4 2-1/2 5/8 .030/.031 RR-030-10 21-101-711 35.10 .375 3/8 2-1/2 3/8 .087/.089 RR-087-6 21-101-751 57.04
.312 5/16 2-1/2 1/4 .033/.034 RR-033-4 21-101-712 43.78 .375 3/8 2-1/2 1/2 .087/.089 RR-087-8 21-101-752 57.04
.312 5/16 2-1/2 3/8 .033/.034 RR-033-6 21-101-713 43.78 .375 3/8 2-1/2 3/4 .087/.089 RR-087-12 21-101-753 57.04
.312 5/16 2-1/2 1/2 .033/.034 RR-033-8 21-101-714 43.78 .375 3/8 2-1/2 1 .087/.089 RR-087-16 21-101-754 57.04
.312 5/16 2-1/2 3/4 .033/.034 RR-033-12 21-101-715 43.78 .375 3/8 2-1/2 1-1/4 .087/.089 RR-087-20 21-101-755 57.04
.312 5/16 2-1/2 1/4 .038/.039 RR-038-4 21-101-716 43.78 .500 1/2 3 1/2 .093/.095 RR-093-8 21-101-756 79.98
.312 5/16 2-1/2 3/8 .038/.039 RR-038-6 21-101-717 43.78 .500 1/2 3 3/4 .093/.095 RR-093-12 21-101-757 79.98
.312 5/16 2-1/2 1/2 .038/.039 RR-038-8 21-101-718 43.78 .500 1/2 3 1 .093/.095 RR-093-16 21-101-758 79.98
.312 5/16 2-1/2 3/4 .038/.039 RR-038-12 21-101-719 43.78 .500 1/2 3 1-1/4 .093/.095 RR-093-20 21-101-759 79.98
.375 3/8 2-1/2 1/4 .039/.041 RR-039-4 21-101-720 57.04 .500 1/2 3 1-1/2 .093/.095 RR-093-24 21-101-760 79.98
.375 3/8 2-1/2 3/8 .039/.041 RR-039-6 21-101-721 57.04 .500 1/2 3 1/2 .125/.127 RR-125-8 21-101-761 79.98
.375 3/8 2-1/2 1/2 .039/.041 RR-039-8 21-101-722 57.04 .500 1/2 3 3/4 .125/.127 RR-125-12 21-101-762 79.98
.375 3/8 2-1/2 3/4 .039/.041 RR-039-12 21-101-723 57.04 .500 1/2 3 1 .125/.127 RR-125-16 21-101-763 79.98
.375 3/8 2-1/2 1 .039/.041 RR-039-16 21-101-724 57.04 .500 1/2 3 1-1/4 .125/.127 RR-125-20 21-101-764 79.98
.375 3/8 2-1/2 1-1/4 .039/.041 RR-039-20 21-101-725 57.04 .500 1/2 3 1-1/2 .125/.127 RR-125-24 21-101-765 79.98
.375 3/8 2-1/2 1/4 .046/.048 RR-046-4 21-101-726 57.04 .500 1/2 3 3/4 .156/.158 RR-156-12 21-101-767 79.98
.375 3/8 2-1/2 3/8 .046/.048 RR-046-6 21-101-727 57.04 .500 1/2 3 1 .156/.158 RR-156-16 21-101-768 79.98
.375 3/8 2-1/2 1/2 .046/.048 RR-046-8 21-101-728 57.04 .500 1/2 3 1-1/4 .156/.158 RR-156-20 21-101-769 79.98
.375 3/8 2-1/2 3/4 .046/.048 RR-046-12 21-101-729 57.04 .500 1/2 3 1-1/2 .156/.158 RR-156-24 21-101-770 79.98
.375 3/8 2-1/2 1 .046/.048 RR-046-16 21-101-730 57.04 .500 1/2 3 3/4 .187/.189 RR-187-12 21-101-772 79.98
.375 3/8 2-1/2 1-1/4 .046/.048 RR-046-20 21-101-731 57.04 .500 1/2 3 1 .187/.189 RR-187-16 21-101-773 79.98
.375 3/8 2-1/2 1/4 .055/.057 RR-055-4 21-101-732 57.04 .500 1/2 3 1-1/4 .187/.189 RR-187-20 21-101-774 79.98
.375 3/8 2-1/2 3/8 .055/.057 RR055-6 21-101-733 57.04 .500 1/2 3 1-1/2 .187/.189 RR-187-24 21-101-775 79.98
.375 3/8 2-1/2 1/2 .055/.057 RR-055-8 21-101-734 57.04 .500 1/2 3 1/2 .250/.252 RR-250-8 21-101-776 80.38
.375 3/8 2-1/2 3/4 .055/.057 RR-055-12 21-101-735 57.04 .500 1/2 3 3/4 .250/.252 RR-250-12 21-101-777 79.98
.375 3/8 2-1/2 1 .055/.057 RR-055-16 21-101-736 57.04 .500 1/2 3 1 .250/.252 RR-250-16 21-101-778 79.98
.375 3/8 2-1/2 1-1/4 .055/.057 RR-055-20 21-101-737 57.04 .500 1/2 3 1-1/4 .250/.252 RR-250-20 21-101-779 79.98
.375 3/8 2-1/2 1/4 .062/.064 RR-062-4 21-101-738 57.04 .500 1/2 3 1-1/2 .250/.252 RR-250-24 21-101-780 79.98
