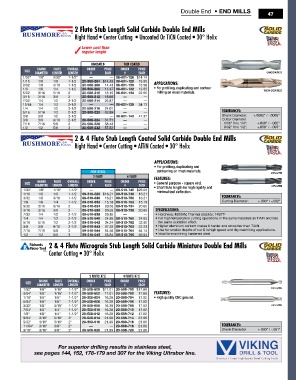

Page 49 - All Industrial Tool Supply | General Catalog

Double End • END MILLS
47

2 Flute Stub Length Solid Carbide Double End Mills
Right Hand • Center Cutting • Uncoated Or TiCN Coated • 30° Helix

Lower cost than
regular length

unCoaTED TiCn CoaTED
Shank FLuTE ovEraLL orDEr priCE orDEr priCE
SizE uNcoatED
DiaMETEr LEngTh LEngTh # EaCh # EaCh
1/32" 1/8" 3/32" 1-1/2" — — 08-601-126 $14.14
1/16 1/8 1/8 1-1/2 20-508-204 $14.43 08-601-128 15.95 APPLICATIONS:
3/32 1/8 3/16 1-1/2 20-508-206 14.43 08-601-130 15.58
1/8 1/8 1/4 1-1/2 20-508-208 11.47 08-601-132 13.65 • For profiling, duplicating and contour ticN coatED
5/32 3/16 5/16 2 20-508-210 18.15 08-601-134 22.65 milling on most materials.
3/16 3/16 3/8 2 20-508-212 18.66 — —
7/32 1/4 1/2 2-1/2 20-508-214 26.87 — —
15/64 1/4 1/2 2-1/2 — — 08-601-139 34.13
1/4 1/4 1/2 2-1/2 20-508-216 24.01 — — ToLEranCES:
5/16 5/16 1/2 2-1/2 20-508-220 32.99 — —
3/8 3/8 1/2 2-1/2 — — 08-601-143 47.37 Shank Diameter: +.0000" / -.0005"
3/8 3/8 9/16 2-1/2 20-508-224 31.71 — — Cutter Diameter
7/16 7/16 5/8 3 20-508-228 58.43 — — 1/16" thru 1/4": +.000" / -.002"
1/2 1/2 5/8 3 20-508-232 57.52 — — 9/32" thru 1/2": +.000" / -.003"
2 & 4 Flute Stub Length Coated Solid Carbide Double End Mills
Right Hand • Center Cutting • AlTiN Coated • 30° Helix

APPLICATIONS:
• For profiling, duplicating and
For Steel contouring on most materials. 2 FLutE
2 FLuTE 4 FLuTE FeATureS:
Shank FLuTE ovEraLL orDEr priCE orDEr priCE
SizE • General purpose - square end.
DiaMETEr LEngTh LEngTh # EaCh # EaCh • Short flute length for high rigidity and 4 FLutE
1/32" 1/8" 1/16" 1-1/2" — — 09-510-746 $26.05 minimal tool deflection.
1/16 1/8 1/8 1-1/2 09-510-828 $16.21 09-510-748 16.21 ToLEranCES:
3/32 1/8 3/16 1-1/2 09-510-830 16.21 09-510-750 16.21
1/8 1/8 1/4 1-1/2 09-510-832 15.18 09-510-752 15.18 Cutting Diameter: +.000" / -.002"
5/32 3/16 5/16 2 09-510-834 20.65 09-510-754 20.65
3/16 3/16 3/8 2 09-510-836 20.65 09-510-756 20.65 SpECiFiCaTionS:
7/32 1/4 1/2 2-1/2 09-510-838 29.85 — — • Hardness: 4500HV, Thermal stability: 1450°F
1/4 1/4 1/2 2-1/2 09-510-840 24.85 09-510-760 24.85 • For high temperature cutting operations in the same materials as TiAlN and has
5/16 5/16 1/2 2-1/2 09-510-842 34.24 09-510-762 32.90 the same oxidation effect.
3/8 3/8 9/16 2-1/2 09-510-843 37.23 09-510-763 37.23 • Higher aluminum content makes it harder and smoother than TiAlN.
7/16 7/16 5/8 3 09-510-844 64.58 09-510-764 64.15 • Use for smaller depths of cut & in high speed and dry machining applications.
1/2 1/2 5/8 3 09-510-845 65.84 09-510-765 65.84 • Ideal for machining hardened steel.
2 & 4 Flute Micrograin Stub Length Solid Carbide Miniature Double End Mills
Center Cutting • 30° Helix

2 FLuTE [872] 4 FLuTE [873]

Shank FLuTE ovEraLL orDEr priCE orDEr priCE
SizE
DiaMETEr LEngTh LEngTh # EaCh # EaCh
1/32" 1/8" 1/16" 1-1/2" 20-508-600 $17.01 20-508-700 $17.89 2 FLutE
3/64" 1/8" 1/16" 1-1/2" 20-508-602 17.01 20-508-702 17.89 FeATureS:
1/16" 1/8" 1/8" 1-1/2" 20-508-604 16.20 20-508-704 17.02 • High quality CNC ground.
5/64" 1/8" 1/8" 1-1/2" 20-508-606 16.20 20-508-706 17.02
3/32" 1/8" 3/16" 1-1/2" 20-508-608 16.20 20-508-708 17.02 4 FLutE
7/64" 1/8" 1/4" 1-1/2" 20-508-610 16.20 20-508-710 17.02
1/8" 1/8" 1/4" 1-1/2" 20-508-612 16.20 20-508-712 17.02
9/64" 3/16" 5/16" 2" 20-508-614 21.99 20-508-714 23.06
5/32" 3/16" 5/16" 2" 20-508-616 21.99 20-508-716 23.06
11/64" 3/16" 3/8" 2" — — 20-508-718 23.06 ToLEranCES:
3/16" 3/16" 3/8" 2" 20-508-620 21.99 20-508-720 23.06 Shank Diameter +.000" / -.001"
For superior drilling results in stainless steel,
see pages 144, 152, 178-179 and 307 for the Viking Ultrabor line.
