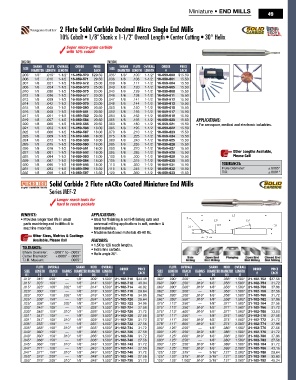

Page 51 - All Industrial Tool Supply | General Catalog

Miniature • END MILLS
49

2 Flute Solid Carbide Decimal Micro Single End Mills
10% Cobalt • 1/8" Shank x 1-1/2" Overall Length • Center Cutting • 30° Helix

Super micro-grain carbide
with 10% cobalt
[ME230] [ME230]
Shank FluTE ovErall orDEr PriCE Shank FluTE ovErall orDEr PriCE
SizE SizE
DiaMETEr lEngTh lEngTh # EaCh DiaMETEr lEngTh lEngTh # EaCh
.005" 1/8" .015" 1-1/2" 16-059-570 $29.50 .035" 1/8" .105" 1-1/2" 16-059-600 $15.50
.006 1/8 .018 1-1/2 16-059-571 29.50 .036 1/8 .108 1-1/2 16-059-601 15.50
.007 1/8 .021 1-1/2 16-059-572 25.00 .039 1/8 .117 1-1/2 16-059-604 15.50
.008 1/8 .024 1-1/2 16-059-573 25.00 .040 1/8 .120 1-1/2 16-059-605 15.50
.010 1/8 .030 1-1/2 16-059-575 23.00 .043 1/8 .129 1-1/2 16-059-608 15.50
.012 1/8 .036 1-1/2 16-059-577 23.00 .046 1/8 .138 1-1/2 16-059-611 15.50
.013 1/8 .039 1-1/2 16-059-578 23.00 .047 1/8 .141 1-1/2 16-059-612 15.50
.014 1/8 .042 1-1/2 16-059-579 23.00 .048 1/8 .144 1-1/2 16-059-613 15.50
.015 1/8 .045 1-1/2 16-059-580 20.50 .050 1/8 .150 1-1/2 16-059-615 15.50
.016 1/8 .048 1-1/2 16-059-581 20.50 .052 1/8 .156 1-1/2 16-059-617 15.50
.017 1/8 .051 1-1/2 16-059-582 20.50 .054 1/8 .162 1-1/2 16-059-619 15.50
.019 1/8 .057 1-1/2 16-059-584 20.50 .055 1/8 .165 1-1/2 16-059-620 15.50 APPLICATIONS:
.020 1/8 .060 1-1/2 16-059-585 20.50 .060 1/8 .180 1-1/2 16-059-621 15.50 • For aerospace, medical and electronic industries.
.021 1/8 .063 1-1/2 16-059-586 18.00 .065 1/8 .195 1-1/2 16-059-622 15.50
.022 1/8 .066 1-1/2 16-059-587 18.00 .070 1/8 .210 1-1/2 16-059-623 15.50
.023 1/8 .069 1-1/2 16-059-588 18.00 .075 1/8 .225 1-1/2 16-059-624 15.50
.024 1/8 .072 1-1/2 16-059-589 18.00 .080 1/8 .240 1-1/2 16-059-625 15.50
.025 1/8 .075 1-1/2 16-059-590 18.00 .085 1/8 .255 1-1/2 16-059-626 15.50
.026 1/8 .078 1-1/2 16-059-591 18.00 .090 1/8 .270 1-1/2 16-059-627 15.50
.027 1/8 .081 1-1/2 16-059-592 18.00 .095 1/8 .285 1-1/2 16-059-628 15.50 Other Lengths Available,
.028 1/8 .084 1-1/2 16-059-593 18.00 .100 1/8 .300 1-1/2 16-059-629 15.50 Please Call
.029 1/8 .087 1-1/2 16-059-594 18.00 .105 1/8 .315 1-1/2 16-059-630 15.50
.030 1/8 .090 1-1/2 16-059-595 18.00 .110 1/8 .330 1-1/2 16-059-631 15.50 TolEranCES:
.031 1/8 .093 1-1/2 16-059-596 15.50 .115 1/8 .345 1-1/2 16-059-632 15.50 Flute Diameter: ±.0005"
.032 1/8 .096 1-1/2 16-059-597 15.50 .120 1/8 .360 1-1/2 16-059-633 15.50 TIR: ±.0001"
Solid Carbide 2 Flute naCro Coated Miniature End Mills
Series MEF-2

Longer reach tools for
hard to reach pockets

BeNefITS: APPLICATIONS:
• Provides longer tool life in small • Ideal for finishing & semi-finishing cuts and
parts machining and in difficult to universal milling applications in soft, medium &
machine materials. hard materials.
• Machine hardened materials 45-68 Rc.
Other Sizes, Metrics & Coatings
Available, Please Call feATureS:
• 1.5X to 12X reach lengths.
TolEranCES: • Extra fine carbide.
Shank Diameter: -.0001" to -.0003" • Helix angle 20°.
Cutter Diameter: +.0000" - .0005"
T.I.R. Maxium: .0005"
FluTE ovErall Shank nECk ovErall FluTE ovErall Shank nECk ovErall
SizE lEngTh rEaCh raDiuS DiaMETEr DiaMETEr lEngTh orDEr PriCE SizE lEngTh rEaCh raDiuS DiaMETEr DiaMETEr lEngTh orDEr PriCE
EaCh
#
EaCh
#
D1 l2 l3 r D2 D3 l1 D1 l2 l3 r D2 D3 l1
.010" .015" .050" — 1/8" .009" 1.500" 21-102-710 $44.46 .060" .090" .200" — 1/8" .056" 1.500" 21-102-752 $27.56
.015" .023" .100" — 1/8" .014" 1.500" 21-102-712 40.04 .060" .090" .200" .010" 1/8" .056" 1.500" 21-102-754 31.72
.015" .023" .100" .002" 1/8" .014" 1.500" 21-102-714 46.02 .060" .090" .500" .010" 1/8" .056" 1.500" 21-102-756 37.96
.020" .030" .150" — 1/8" .019" 1.500" 21-102-716 29.64 .062" .093" .200" — 1/8" .058" 1.500" 21-102-758 27.56
.020" .030" .150" .002" 1/8" .019" 1.500" 21-102-718 34.06 .062" .093" .200" .010" 1/8" .058" 1.500" 21-102-760 31.72
.025" .038" .150" — 1/8" .024" 1.500" 21-102-720 29.64 .062" .093" .550" .010" 1/8" .058" 1.500" 21-102-762 37.96
.025" .038" .150" .003" 1/8" .024" 1.500" 21-102-722 34.06 .075" .113" .250" — 1/8" .071" 1.500" 21-102-764 27.56
.030" .045" .100" — 1/8" .028" 1.500" 21-102-724 27.56 .075" .113" .250" .010" 1/8" .071" 1.500" 21-102-766 31.72
.030" .045" .100" .010" 1/8" .028" 1.500" 21-102-726 31.72 .075" .113" .400" .010" 1/8" .071" 1.500" 21-102-768 33.80
.031" .047" .100" — 1/8" .029" 1.500" 21-102-728 27.56 .078" .117" .250" — 1/8" .074" 1.500" 21-102-770 27.56
.031" .047" .100" .010" 1/8" .029" 1.500" 21-102-730 31.72 .078" .117" .250" .010" 1/8" .074" 1.500" 21-102-772 31.72
.035" .053" .150" — 1/8" .033" 1.500" 21-102-732 27.56 .078" .117" .650" .010" 1/8" .074" 2.000" 21-102-774 37.96
.035" .053" .150" .010" 1/8" .033" 1.500" 21-102-734 31.72 .090" .125" .250" — 1/8" .086" 1.500" 21-102-776 27.56
.040" .060" .150" — 1/8" .038" 1.500" 21-102-736 27.56 .090" .125" .250" .010" 1/8" .086" 1.500" 21-102-778 31.72
.040" .060" .150" .010" 1/8" .038" 1.500" 21-102-738 31.72 .090" .125" .600" .010" 1/8" .086" 2.000" 21-102-780 37.96
.045" .068" .150" — 1/8" .038" 1.500" 21-102-740 27.56 .093" .125" .250" — 1/8" .089" 1.500" 21-102-782 27.56
.045" .068" .150" .010" 1/8" .043" 1.500" 21-102-742 31.72 .093" .125" .250" .010" 1/8" .089" 1.500" 21-102-784 31.72
.047" .071" .150" — 1/8" .045" 1.500" 21-102-744 27.56 .093" .125" .750" .010" 1/8" .089" 2.000" 21-102-786 43.16
.047" .071" .150" .010" 1/8" .045" 1.500" 21-102-746 31.72 .125" .125" .375" — 3/16" .121" 2.000" 21-102-788 29.64
.050" .075" .200" — 1/8" .048" 1.500" 21-102-748 27.56 .125" .125" .375" .010" 3/16" .121" 2.000" 21-102-790 33.80
.050" .075" .200" .010" 1/8" .048" 1.500" 21-102-750 31.72 .125" .125" 1.000" .010" 3/16" .121" 2.000" 21-102-792 45.24
