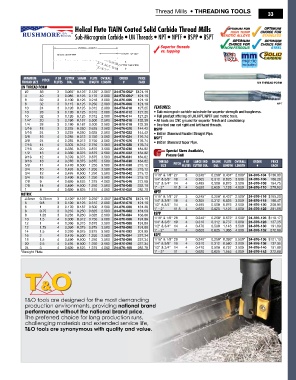

Page 35 - All Industrial Tool Supply | General Catalog
P. 35
Thread Mills • THREADING TOOLS
33
Helical Flute TiAlN Coated Solid Carbide Thread Mills
Sub-Micrograin Carbide • UN Threads • NPT • NPTF • BSPP • BSPT
Superior threads
vs. tapping
MiNiMuM # OF CuTTer SHANk FluTe OverAll Order PriCe
THreAd Size PiTCH FluTeS diA. diA. leNgTH leNgTH # eACH UN THREAD FORm
uN THreAd FOrM
#2 56 3 0.065" 0.125" 0.125" 2.000" 24-876-002* $121.19
4 40 3 0.085 0.125 0.175 2.000 24-876-004* 121.19
6 32 3 0.100 0.125 0.218 2.000 24-876-006 121.19
8 32 3 0.115 0.125 0.250 2.000 24-876-008 121.19 NPT
10 24 3 0.120 0.125 0.312 2.000 24-876-010 127.25 Features:
10 28 3 0.120 0.125 0.312 2.000 24-876-012 127.25 • Sub-micrograin carbide substrate for superior strength and toughness.
10 32 3 0.120 0.125 0.312 2.000 24-876-014 127.25 • Full product offering of UN, NPT, NPTF and metric tools.
1/4" 20 3 0.180 0.187 0.500 2.500 24-876-016 132.30 • All tools are CNC ground for superior finish and consistency.
1/4 28 3 0.180 0.187 0.500 2.500 24-876-018 132.30 • One tool can cut right and left hand threads.
5/16 18 3 0.235 0.250 0.625 2.500 24-876-020 144.42 BSPP
5/16 24 3 0.235 0.250 0.625 2.500 24-876-022 144.42 • British Standard Parallel Straight Pipe.
3/8 16 4 0.285 0.312 0.750 3.000 24-876-024 176.74 BSPT
3/8 24 4 0.285 0.312 0.750 3.000 24-876-026 176.74 • British Standard Taper Pipe.
7/16 14 4 0.305 0.312 0.750 3.000 24-876-028 176.74
7/16 20 4 0.335 0.375 0.875 3.500 24-876-030 184.82 Special Sizes Available,
1/2 13 4 0.350 0.375 0.875 3.500 24-876-032 184.82 Please Call
9/16 12 4 0.370 0.375 0.875 3.500 24-876-034 184.82
9/16 18 4 0.370 0.375 0.875 3.500 24-876-036 184.82 THreAd # OF lArge eNd SHANk FluTe OverAll Order PriCe
5/8 11 4 0.470 0.500 1.250 3.500 24-876-038 215.12 Size PiTCH FluTeS CuTTer diA. diA. leNgTH leNgTH # eACH
3/4 10 4 0.495 0.500 1.250 3.500 24-876-040 215.12 NPT
3/4 12 4 0.495 0.500 1.250 3.500 24-876-042 215.12 1/16" & 1/8" 27 3 0.245" 0.250" 0.437" 2.500" 24-876-104 $136.80
3/4 16 4 0.490 0.500 1.250 3.500 24-876-044 215.12 1/4" & 3/8" 18 4 0.305 0.312 0.625 3.000 24-876-106 166.20
7/8 9 4 0.620 0.625 1.375 4.000 24-876-046 272.69 1/2" & 3/4" 14 4 0.495 0.500 0.875 3.500 24-876-108 194.75
7/8 14 4 0.490 0.500 1.250 3.500 24-876-048 222.19 1" - 2" 11.5 4 0.620 0.625 1.125 4.000 24-876-110 270.52
1 8 4 0.620 0.625 1.375 4.000 24-876-050 282.79 NPTF
MeTriC 1/16" & 1/8" 27 3 0.245" 0.250" 0.437" 2.500" 24-876-116 $165.20
4.5mm 0.75mm 3 0.120" 0.125" 0.250" 2.000" 24-876-076 $121.19 1/4" & 3/8" 18 4 0.305 0.312 0.625 3.000 24-876-118 188.47
5 0.8 3 0.120 0.125 0.312 2.000 24-876-078 121.19 1/2" & 3/4" 14 4 0.495 0.500 0.875 3.500 24-876-120 208.95
6 1 3 0.170 0.187 0.500 2.500 24-876-080 131.29 1" - 2" 11.5 4 0.620 0.625 1.125 4.000 24-876-122 291.68
8 0.75 3 0.235 0.250 0.625 2.500 24-876-082 161.59 BSPP
8 1.25 3 0.235 0.250 0.625 2.500 24-876-084 168.66
10 1.5 4 0.300 0.312 0.750 3.000 24-876-086 191.89 1/16" & 1/8" 28 3 0.240" 0.250" 0.572" 2.500" 24-876-126 $119.17
12 1 4 0.360 0.375 0.875 3.500 24-876-088 191.89 1/4" & 3/8" 19 4 0.310 0.312 0.737 3.000 24-876-128 137.35
12 1.75 4 0.360 0.375 0.875 3.500 24-876-090 191.89 1/2" & 3/4" 14 4 0.470 0.500 1.143 3.500 24-876-130 191.89
14 1.5 4 0.370 0.375 0.875 3.500 24-876-092 201.99 1" - 2" 11 4 0.620 0.625 1.365 4.000 24-876-132 272.69
16 2 4 0.470 0.500 1.250 3.500 24-876-094 237.34 BSPT
18 1.5 4 0.490 0.500 1.250 3.500 24-876-096 237.34 1/16" & 1/8" 28 3 0.240" 0.250" 0.393" 2.500" 24-876-136 $121.19
20 2.5 4 0.495 0.500 1.250 3.500 24-876-098 237.34 1/4" & 3/8" 19 4 0.310 0.312 0.580 3.000 24-876-138 137.35
24 3 4 0.620 0.625 1.375 4.000 24-876-100 282.79 1/2" & 3/4" 14 4 0.470 0.500 0.787 3.500 24-876-140 191.89
*Straight Flute. 1" - 2" 11 4 0.620 0.625 1.546 4.000 24-876-142 272.69
