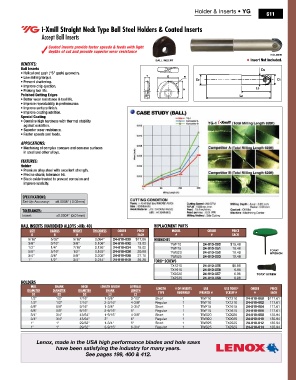

Page 613 - All Industrial Tool Supply | General Catalog

Holder & Inserts • YG
611

i-Xmill Straight Neck Type Ball Steel Holders & Coated Inserts
Accept Ball Inserts

Coated inserts provide faster speeds & feeds with light
depths of cut and provide superior wear resistance
Holder
Ball InSerT ♦ Insert Not Included.
BeneFits:
Ball Inserts
• Helical end gash (“S” gash) geometry.
• Low milling torque.
• Prevent chattering.
• Improve chip ejection.
• Prolong tool life.
Polished Cutting Edges
• Better wear resistance & tool life.
• Improve repeatability in performance.
• Improve surface finish.
• Improve coating addition.
Special Coating
• Combine high hardness with thermal stability
against oxidation.
• Superior wear resistance.
• Faster speeds and feeds.
aPPLiCatiOns:
• Machining of complex concave and concave surfaces
in steel and other alloys.
Features:
Holder
• Premium alloy steel with excellent strength.
• Precise shank; tolerance h6.
• Black oxide treated to prevent corrosion and
improve lubricity.

SpeCIfICaTIoNS:
Set-Up Accuracy: ±0.0008" ( 0.02mm)

ToleraNCeS:
Insert: ±0.0004" (0.01mm)

Ball INSerTS (HardeNed alloyS >Hrc 40) replaCemeNT parTS
SIze radIuS HeIgHT THICkNeSS order prICe model order prICe
d r H T # eaCH # # eaCH
5/16" 5/32" 5/16" 0.094" 24-810-030 $17.86 WreNCHeS
3/8" 3/16" 3/8" 0.106" 24-810-032 19.02 TWF10 24-810-050 $19.48
1/2" 1/4" 7/16" 0.126" 24-810-034 19.02 TWF15 24-810-051 19.48
5/8" 5/16" 1/2" 0.165" 24-810-036 20.88 TWB20 24-810-052 19.48 Torx ®
WrencH
3/4" 3/8" 5/8" 0.205" 24-810-038 27.15 TWB25 24-810-053 19.48
1" 1/2" 3/4" 0.244" 24-810-040 35.26 TorX SCreWS
®
TX1210 24-810-055 $6.96
TX1615 24-810-056 6.96
TX2020 24-810-057 6.96 Torx ® ScreW
TX2525 24-810-058 6.96
HolderS
mIll SHaNk NeCk leNgTH BeloW overall ®
uSe
dIameTer dIameTer dIameTer SHaNk leNgTH leNgTH # of INSerTS WreNCH # uSe TorX order prICe
SCreW #
requIred
eaCH
#
Type
d1 d2 d3 l3 l2
1/2" 1/2" 7/16" 1-3/8" 3-1/2" Short 1 TWF10 TX1210 24-810-000 $117.61
1/2" 1/2" 7/16" 2-3/16" 4-3/8" Regular 1 TWF10 TX1210 24-810-002 117.61
5/8" 5/8" 9/16" 1-3/8" 3-3/4" Short 1 TWF15 TX1615 24-810-004 117.61
5/8" 5/8" 9/16" 2-9/16" 5" Regular 1 TWF15 TX1615 24-810-006 117.61
3/4" 3/4" 43/64" 1-9/16" 4-3/8" Short 1 TWB20 TX2020 24-810-008 135.94
3/4" 3/4" 43/64" 3" 6" Regular 1 TWB20 TX2020 24-810-010 135.94
1" 1" 29/32" 1-3/4" 5" Short 1 TWB25 TX2525 24-810-012 135.94
1" 1" 29/32" 3-9/16" 6-3/4" Regular 1 TWB25 TX2525 24-810-014 135.94
