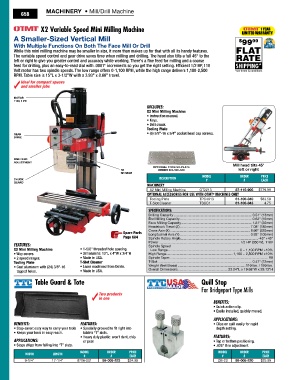

X2 Variable Speed Mini Milling Machine
A Smaller-Sized Vertical Mill
With Multiple Functions On Both The Face Mill Or Drill
While this mini milling machine may be smaller in size, it more than makes up for that with all its handy features.
The variable speed control and gear drive saves time when milling and drilling. The head also tilts a full 45° to the
left or right to give you greater control and accuracy while working. There's a fine feed for milling and a coarse
feed for drilling, plus an easy-to-read dial with .0001" increments so you get the right setting. Efficient 1/2 HP, 110
Volt motor has two spindle speeds. The low range offers 0-1,100 RPM, while the high range delivers 1,100-2,500
RPM. Table size is 15"L x 3-1/2"W with a 3.93" x 8.66" travel.
Ideal for compact spaces
and smaller jobs
MOTOR
110V, 1 PH
Includes:
X2 Mini Milling Machine
• Instruction manual.
• Keys.
• Drill chuck.
Tooling Plate
GEAR • (6) 3/8"-16 x 3/4" socket head cap screws.
DRIVE
FINE FEED
ADJUSTMENT
OpTiOnAl TOOling plATe Mill head tilts 45°
R8 OrDer #61-100-040 left or right
SPINDLE
CHUCK DeScription MoDel orDer price
#
each
#
GUARD
Machinery
X2 Mini Milling Machine OT2213 87-115-905 $779.99
optional acceSSorieS for USe With otMt MachineS only
®
Tooling Plate TPC4X13 61-100-040 $83.50
T-Slot Cleaner TSCC1 61-100-043 4.75
SpecificationS:
Drilling Capacity ...................................................................................0.51" (13mm)
End Milling Capacity .............................................................................0.62" (16mm)
Face Milling Capacity ...........................................................................1.81" (30mm)
Headstock Travel (Z) ...........................................................................7.08" (180mm)
Spare Parts Cross Axis (X) .....................................................................................8.66" (220mm)
Longitudinal Axis (Y) ...........................................................................3.93" (100mm)
Page 684 Spindle Rotary Angle .................................................................................. -45° +45°
Power ...................................................................................... 1/2 HP (350 W), 110V
Features: Spindle Speed
X2 Mini Milling Machine • 1-5/8" threaded hole spacing. Low Range ............................................................................0 ~ 1,100 RPM ±10%
• Way covers. • Dimensions: 13"L x 4"W x 3/4"H High Range .......................................................................1,100 ~ 2,500 RPM ±10%
• 2 speed ranges. • Made in USA. Spindle Taper ......................................................................................................... R8
Tooling Plate T-Slot Cleaner T-Slot ....................................................................................................0.47" (12mm)
• Cast aluminum with (24) 3/8"-16 • Laser machined from Delrin. Weight (Net/Gross) ........................................................................110 lbs. / 150 lbs.
tapped holes. • Made in USA. Overall Dimensions ..................................................... 22.04"L x 19.68"W x 29.13"H
table Guard & tote Quill Stop
For Bridgeport Type Mills
Two products
in one
BeneFIts:
• Quick action clip.
• Easily installed, quickly moved.
aPPlIcatIOns:
BeneFIts: Features: • Clips on quill easily for rapid
• Step-saver: easy way to carry your tools • Specially grooved to fit right into depth setting.
• Keeps your tools in easy reach. table's “T” slots.
• Heavy duty plastic: won't dent, chip Features:
aPPlIcatIOns: or peel • Top or bottom positioning.
• Stops chips from falling into “T” slots. • .020" fine adjustment.
MoDel orDer price MoDel orDer price
WiDth lenGth
# # each # # each
9-1/4" 17-1/4" 8706-001 99-008-223 $34.99 QS-20 99-008-220 $25.99
