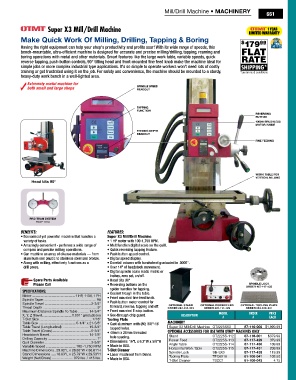

P. 663
Mill/Drill Machine • MACHINERY
661
Super X3 Mill/Drill Machine
Make Quick Work Of Milling, Drilling, Tapping & Boring
Having the right equipment can help your shop's productivity and profits soar! With its wide range of speeds, this
bench-mountable, ultra-efficient machine is designed for accurate and precise milling/drilling, tapping, reaming and
boring operations with metal and other materials. Smart features like the large work table, variable speeds, quick
reverse tapping, push-button controls, 90° tilting head and front-mounted fine feed knob make the machine ideal for
simple jobs or more complex industrial type applications. It's so simple to operate workers won't need lots of costly
training or get frustrated using it on the job. For safety and convenience, the machine should be mounted to a sturdy,
heavy-duty work bench in a well-lighted area.
Extremely useful machine for
both small and large shops SPINDLE SPEED
READOUT
TAPPING
FUNCTION
REVERSING
BUTTON
1000W BRUSHLESS
MOTOR INSIDE
FEEDING DEPTH
READOUT
FINE FEEDING
WORK TABLE FOR
VERTICAL MILLING
Head tilts 90°
pRO-TRAM sYsTEM
PAGE 1014
Benefits: features:
• Economical yet powerful machine that handles a Super X3 Mill/Drill Machine
variety of tasks. • 1 HP motor with 100-1,750 RPM.
• Amazingly convenient - performs a wide range of • Multifunction digital scale on the quill.
complex and precise milling operations. • Quick reversing tapping feature.
• Can machine an array of diverse materials — from • Push button speed control.
aluminum and plastic to stainless steel and bronze. • Digital speed display.
• Along with milling, effectively functions as a • Dovetail column with handwheel graduated in .0005".
drill press. • Over 14" of headstock movement.
• Digital spindle scale reads metric or
inches, zero set, on/off.
Spare Parts Available • Head tilts 90°
Please Call • Reversing buttons on the spINDlE lOCk
spider handles for tapping. ORDER #87-117-435
SpecificationS: • Coolant trough in the table.
Motor ..............................................1 HP, 110V, 1 PH • Front mounted fine feed knob.
Spindle Taper ........................................................ R8 • Push button motor control for
Spindle Travel .................................................2-3/4" OpTIONAl sTAND OpTIONAl pOWER fEED OpTIONAl TOOlINg plATE
Throat Depth ......................................................... 9" forward, reverse, tapping and off. ORDER #87-116-001 ORDER #87-117-429 ORDER #61-100-041
Maximum Distance Spindle To Table ............14-3/4" • Front mounted E-stop button. MoDel orDer price
X, Y, Z Travel ............................... 0.001" graduations • See-through chip guard. DeScription # # each
T-Slot Size ........................................................7/16" Tooling Plate
Table Size .......................................6-1/4" x 21-5/8" • Cast aluminum with (80) 3/8"-16 Machinery
Table Travel (Longitudinal) ............................15-3/4" tapped holes. Super X3 Mill/Drill Machine OT2225SX3 87-116-000 $1,899.99
Table Travel (Cross) .........................................5-3/4" • 40mm x 20mm threaded optional acceSSorieS for USe With otMt MachineS only
®
Headstock Travel ...........................................14-7/8" hole spacing. Stand OT2225S-112 87-116-001 $379.99
Drilling Capacity .................................................... 1" Power Feed OT2225S-113 87-117-429 379.99
Quill Diameter ..................................................2-3/8" • Dimensions: 16"L x 6.3"W x 5/8"H Angle Table OT2225S-114 87-117-430 109.99
Variable Speed ................................100~1,750 RPM • Made in USA. Horizontal Work Table OT2225S-115 87-117-431 209.99
Machine Dimensions ..29.92"L x 28.35"W x 36.61"H T-Slot Cleaner Spindle Lock SB-SX3 87-117-435 119.99
Stand Dimensions ......16.93"L x 25.79"W x 29.53"H • Laser machined from Delrin.
Weight (Net/Gross) ....................... 379 lbs. / 415 lbs. • Made in USA. Tooling Plate TPC6X16 61-100-041 103.50
4.75
61-100-043
T-Slot Cleaner
TSCC1
