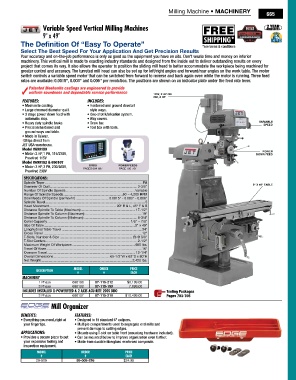

Variable Speed Vertical Milling Machines
9" x 49"
The Definition Of “Easy To Operate”
Select The Best Speed For Your Application And Get Precision Results
Your accuracy and on-the-job performance is only as good as the equipment you have on site. Don't waste time and money on inferior
machinery. This vertical mill is made to exacting industry standards and designed from the inside out to deliver outstanding results on every
project that comes its way. It also allows the operator to position the sliding mill head to better accommodate the workpiece being machined for
greater control and accuracy. The turreted mill head can also be set up for left/right angles and forward/rear angles on the work table. The motor
switch controls a variable speed motor that can be switched from forward to reverse and back again even while the motor is running. Three feed
rates are available: 0.0015", 0.003" and 0.006" per revolution. The positions are shown on an indicator plate under the feed rate lever.
Patented Meehanite castings are engineered to provide
uniform soundness and dependable service performance
115V, 2 HP OR
230, 3 HP
Features: Includes:
• Meehanite casting. • Hardened and ground dovetail
• Large chromed diameter quill. style ways.
• 3 stage power down feed with • One-shot lubrication system.
automatic stop. • Way covers.
• Heavy duty spindle brake. • Draw bar. VARIABLE
SPEED
• Precision hardened and • Tool box with tools.
ground ways and table.
• Made in Taiwan.
†Ships direct from
JET USA warehouse.
Model #690180 POWER
• Motor: 2 HP, 1 PH, 115/230V, DOWN FEED
Prewired 115V
Model #690182 & 690107
DROS
• Motor: 3 HP, 3 PH, 230/460V, PAGEs 694-697 POwERFEEDS
PAGE 700-701
Prewired 230V
SpecificationS:
spindle Taper ........................................................................................................ R8 9" X 49" TABLE
Diameter Of Quill ............................................................................................ 3-3/8"
Number Of spindle speeds .........................................................................Variable
Range Of spindle speeds ...............................................................60 ~ 4,200 RPM
Downfeeds Of spindle (per/rev/in) ................................... 0.0015" - 0.003" - 0.006"
spindle Travel ..........................................................................................................5
Head Movement ....................................................................... 90° R & L, 45° F & B
Distance spindle To Table (Maximum) ......................................................... 17-1/2"
Distance spindle To Column (Maximum) ............................................................19"
Distance spindle To Column (Minimum) ........................................................ 6-3/4"
Collet Capacity ........................................................................................1/8" ~ 7/8"
size Of Table.................................................................................................9" x 49"
Longitudinal Table Travel ....................................................................................34"
Cross Travel ........................................................................................................12"
T-slots, Number & size ............................................................................. (3) @ 5/8"
T-slot Centers ................................................................................................. 2-1/2"
Maximum Weight Of Workpiece ...................................................................660 lbs.
Travel Of Knee .....................................................................................................16"
Overarm Travel ............................................................................................. 12-1/4"
Overall Dimensions ............................................................ 65-1/2"W x 63"D x 80"H
Net Weight .................................................................................................2,420 lbs.
MoDel orDer price
DeScription
# # each
Machinery
1 Phase 690180 87-115-212 $8,199.00
3 Phase 690182 87-115-199 7,999.00
incluDeS inStalleD X-powerfeeD & 2 aXiS acu-rite 200S Dro Tooling Packages
3 Phase 690107 87-115-210 $10,499.00 Pages 703-705
Mill organizer
BeneFIts: Features:
• Everything you need, right at • Designed to fit standard 6" calipers.
your fingertips. • Multiple compartments used to segregate end mills and
prevent damage to cutting edges.
aPPlIcatIOns: • Mounts using T-slot on table front (mounting hardware included).
• Provides a secure place to put • Can be mounted below to improve organization even further.
your expensive tooling and • Made from durable fiberglass reinforced composite.
inspection equipment.
MoDel orDer price
# # each
29-000 99-008-226 $24.99
