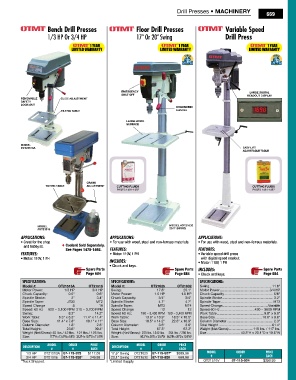

Page 671 - All Industrial Tool Supply | General Catalog

Drill Presses • MACHINERY
669

Bench Drill Presses floor Drill Presses Variable Speed
1/3 HP Or 3/4 HP 17" Or 20" Swing Drill Press

EMERGENCY LARGE DIGITAL
SHUT-OFF READOUT DISPLAY
REMOVABLE SLIDE ADJUSTMENT
SAFETY
LOCK-OUT
ERGONOMIC
TILTING TABLE HANDLE
LARGE WORK
SURFACE

MOdEl
#OT21513A EASY LIFT
ADJUSTABLE TABLE

CRANK
TILTING TABLE ADJUSTMENT CuTTING FluIdS CuTTING FluIdS
PAGES 1481-1492 PAGES 1481-1492

MOdEl MOdEl #OT21632
#OT21516 20.1" SWING
APPLICATIONS: APPLICATIONS: APPLICATIONS:
• Great for the shop • For use with wood, steel and non-ferrous materials. • For use with wood, steel and non-ferrous materials.
and hobbyist. ♦ Coolant Sold Separately.
See Pages 1470-1492. FeATureS: FeATureS:
FeATureS: • Motor: 110V, 1 PH • Variable speed drill press
• Motor: 110V, 1 PH with digital speed readout.
INCLudeS: • Motor: 110V, 1 PH
• Chuck and keys.
Spare Parts Spare Parts INCLudeS: Spare Parts
Page 684 Page 684 • Chuck and keys. Page 684
SPecificationS: SPecificationS: SPecificationS:
Model #: OT21513A OT21516 Model #: OT21625 OT21632 Swing .................................................................. 11.8"
Motor Power: 1/3 HP 3/4 HP Swing: 17.8" 20.1" Motor Power .....................................................3/4 HP
Chuck Capacity: 0.5" 0.6" Motor Power: 1.5 HP 1.5 HP Chuck Capacity .................................................... 5/8"
Spindle Stroke: 2" 3.4" Chuck Capacity: 3/4" 3/4" Spindle Stroke ...................................................... 3.2"
Spindle Taper: JT33 MT2 Spindle Stroke: 4.7" 4.7" Spindle Taper ........................................................MT2
Speed Change :5 16 Spindle Taper: MT3 MT4 Speed Change ................................................ Variable
Speed: 60 Hz 620 ~ 3,100 RPM 210 ~ 3,700 RPM Speed Change :12 12 Speed 60 Hz .....................................420 ~ 3600 RPM
Swing: 8.3" 14.2" Speed 60 Hz: 180 ~ 3,400 RPM 180 ~ 3,400 RPM Work Table ..................................................9.8" x 9.8"
Work Table: 6.3" x 6.3" 11.4" x 11.4" Work Table: 13.9" x 13.9" 18.5" x 16.5" Base Size ..................................................16.6" x 9.8"
Base Size: 11.4" x 7.8" 18.1" x 11" Base Size: 18.5" x 14.2" 22.8" x 16.9" Column Diameter ................................................. 2.3"
Column Diameter: 1.8" 2.8" Column Diameter: 3.6" 3.6" Total Height ........................................................ 61.4"
Total Height: 23.6" 39.4" Total Height: 67.3" 67.3" Weight (Net/Gross) ......................... 110 lbs. / 117 lbs.
Weight (Net/Gross): 40 lbs./ 42 lbs. 121 lbs./ 125 lbs. Weight (Net/Gross): 220 lbs. / 242 lbs. 264 lbs. / 286 lbs. Size ....................................43.3"H x 20.1"D x 10.6"W
Size: 17.7"H x 13.4"W x 9.8"D 32.3"H x 19.7"D x 11.4"W Size: 56.3"H x 26"D x 12.6"W 56.3"H x 26"D x 12.6"W
MoDel orDer Price MoDel orDer Price
DeScriPtion DeScriPtion
# # each # # each
1/3 HP OT21513A 87-115-925 $117.69 17.8" Swing OT21625 87-115-927* $589.99 MoDel orDer Price
3/4 HP OT21516 87-115-926* 349.99 20.1" Swing OT21632 87-115-928 699.99 # # each
*Truck Shipped. *Limited Supply. OT21516V 87-115-924 $399.99
