MACHINERY • Milling Machine
666

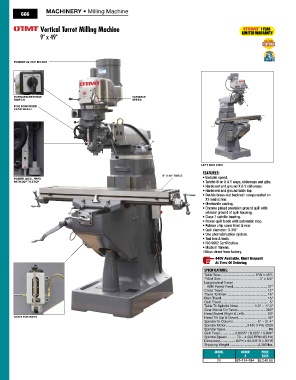

Vertical Turret Milling Machine
9" x 49"

POWERFUL 3 HP MOTOR

FORWARD/REVERSE VARIABLE
SWITCH SPEED
FINE DOWNFEED
HAND WHEEL

left side view
Features:
9" X 49" TABLE
POWER QUILL FEED • Variable speed.
WITH DEPTH STOP • Turcite-B on X & Y ways, slideways and gibs.
• Hardened and ground X & Y slideways.
• Hardened and ground table top.
• Double brass-nut backlash compensated on
XY lead screw.
• Meehanite casting.
• Chrome plated precision ground quill with
internal ground of quill housing.
• Class 7 spindle bearing.
• Power quill feeds with automatic stop.
• Rubber chip cover front & rear.
• Quill diameter: 3-3/8"
• One shot lubrication system.
• Tool box & tools.
• ISO 9002 Certification.
• Made in Taiwan.
†Ships direct from factory.
440V Available, Must Request
At Time Of Ordering
SpecificaTionS:
Table Size ..................................... 9"W x 49"L
T-Slot Size ........................................ 3" x 5/8"
Longitudinal Travel
With Power Feed ....................................37"
Cross Travel ...............................................12"
Travel To Knee ...........................................16"
Ram Travel .................................................15"
Quill Travel ...................................................5"
Table To Spindle Nose ................. 1.3" ~ 17.3"
Over Swivel On Turret ..............................360°
Head Swivel (Right & Left) .........................90°
OILER FOR WAYS Head Tilt (Up & Down) ...............................45°
Spindle To Column ......................... 6" ~ 21.4"
Spindle Motor ...................... 3 HP, 3 PH, 220V
Spindle Taper ..............................................R8
Quill Feed ................0.0015" / 0.003" / 0.006"
Spindle Speed .......... 70 ~ 4,500 RPM (60 Hz)
Dimension ................ 84"H x 63-5/8"D x 59"W
Shipping Weight ..............................2,300 lbs.
Model order price
# # each
2V 87-114-194 $8,249.99
