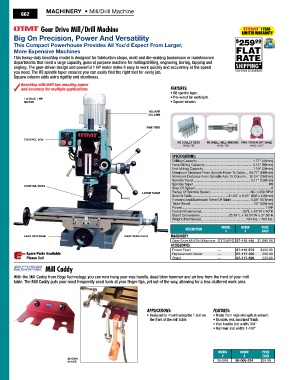

MACHINERY • Mill/Drill Machine
662

Gear Drive Mill/Drill Machine

Big On Precision, Power And Versatility
This Compact Powerhouse Provides All You'd Expect From Larger,
More Expensive Machines
This heavy-duty benchtop model is designed for fabrication shops, mold and die-making businesses or maintenance
departments that need a large capacity, general purpose machine for milling/drilling, engraving, boring, tapping and
angling. The gear-driven design and powerful 1 HP motor make it easy to work quickly and accurately at the speed
you need. The R8 spindle taper ensures you can easily find the right tool for every job.
Square column adds extra rigidity and sturdiness.
Benchtop mill/drill has amazing power
and accuracy for multiple applications Features:
• R8 spindle taper.
• Pre-wired for worklight.
110 VOLT, 1 HP
MOTOR • Square column.
SQUARE
COLUMN

FINE FEED

CONTROL BOX
R8 COLLET SETS R8 ShELL MiLL ARBORS PRO-TOuCh OFF gAgE
PAGE 787 PAGE 792 PAGE 1017
SpecificationS:
Drilling Capacity .......................................................... 1.77" (45mm)
Face Milling Capacity .................................................. 3.15" (80mm)
End Milling Capacity .................................................... 1.10" (28mm)
Maximum Distance From Spindle Nose To Table .... 26.77" (680mm)
Minimum Distance From Spindle Axis To Column .. 10.24" (260mm)
Spindle Travel ............................................................ 5.11" (130mm)
Spindle Taper ............................................................................... R8
DOVETAIL WAYS
Step Of Speed .................................................................................6
LARGE TABLE Range Of Spindle Speed ...........................................80~1,250 RPM
Size Of Table...................................... 31.50" x 9.45" (800 x 240mm)
Forward And Backward Travel Of Table .................... 6.89" (175mm)
Table Travel ................................................................... 20" (500mm)
Power ........................................................................................1 HP
Overall Dimensions ............................................33"L x 42"W x 40"H
Stand Dimensions ..............................25.19"L x 16.54"W x 27.56"H
Weight (Net/Gross) ............................................... 704 lbs. / 790 lbs.
MoDel orDer price
DeScription
# # each
CAST IRON BASE EASY READ DIALS Machinery
Gear Drive Mill/Drill Machine OT7045FG 87-115-145 $1,899.99
acceSSorieS
Power Feed — 87-115-972 $459.99
Spare Parts Available Replacement Motor — 87-117-525 259.99
Please Call Stand — 87-117-526 289.99
Mill caddy

With the Mill Caddy from Edge Technology, you can now hang your vise handle, dead blow hammer and air line from the front of your mill
table. The Mill Caddy puts your most frequently used tools at your finger tips, yet out of the way, allowing for a less cluttered work area.

aPPLICatIONs: Features:
• Designed to mount using the T-slot on • Made from high strength aluminum.
the front of the mill table. • Durable, red, anodized finish.
• Vise handle slot width: 3/4"
• Hammer slot width: 1-1/8"

MoDel orDer price
# # each
ShOwn
in uSE 06-000 99-008-224 $24.99
