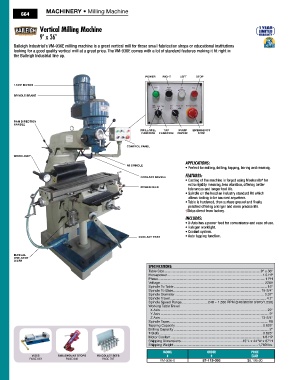

Page 666 - All Industrial Tool Supply | General Catalog

MACHINERY • Milling Machine
664

Vertical Milling Machine
9" x 36"

Baileigh Industrial's VM-936E milling machine is a great vertical mill for those small fabrication shops or educational institutions
looking for a good quality vertical mill at a great price. The VM-936E comes with a lot of standard features making it fit right in
the Baileigh Industrial line up.

POWER RIGHT LEFT STOP

1.5 HP MOTOR
SPINDLE BRAKE

RAM DIRECTION
HANDLE
DRILL/MILL TAP PUMP EMERGENCY
FUNCTION FUNCTION ON/OFF STOP

CONTROL PANEL

WORKLIGHT
APPLICATIONS:
R8 SPINDLE
• Perfect for milling, drilling, tapping, boring and reaming.
FeATureS:
COOLANT NOZZLE
• Casting of the machine is forged using Meehanite for
®
extra rigidity meaning, less vibration, offering better
POWER FEED
tolerances and longer tool life.
• Spindle on the head an industry standard R8 which
allows tooling to be sourced anywhere.
• Table is hardened, then surface ground and finally
polished offering a longer and more precise life.
†Ships direct from factory.
INCLudeS:
• X-Axis has a power feed for convenience and ease of use.
• Halogen worklight.
• Coolant system.
COOLANT TRAY • Auto tapping function.

MANUAL
ONE-SHOT
OILER
SpecificationS:
Table Size ......................................................................................................9" x 36"
Horsepower .....................................................................................................1.5 HP
Phase ..................................................................................................................1 PH
Voltage ............................................................................................................... 220V
Spindle To Table ...................................................................................................15"
Spindle To Base ............................................................................................. 15-3/4"
Spindle Diameter ...............................................................................................3.37"
Spindle Travel ......................................................................................................4.7"
Spindle Speed Range ............................240 ~ 1,550 RPM (240/380/610/970/1,550)
Working Table Travel
X Axis ..................................................................................................................22"
Y Axis ...................................................................................................................9"
Z Axis ........................................................................................................... 13-3/4"
Spindle Taper ......................................................................................................... R8
Tapping Capacity .............................................................................................0.625"
Drilling Capacity .....................................................................................................2"
T-Slots .............................................................................................................0.625"
Motor Coolant ................................................................................................ 1/8 HP
Shipping Dimensions................................................................. 45"L x 44"W x 87"H
Shipping Weight .........................................................................................1,760 lbs.
Model order price
vises tablemount stops r8 collet sets # # each
PAGE 833 PAGE 846 PAGE 787
VM-936-E 87-115-093 $6,195.00
