Mill/Drill Machine • MACHINERY
659

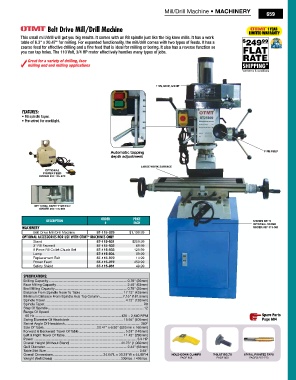

Belt Drive Mill/Drill Machine
This small mill/drill will get you big results. It comes with an R8 spindle just like the big knee mills. It has a work
table of 6.3" x 20.47" for milling. For expanded functionality, the mill/drill comes with two types of feeds. It has a
coarse feed for effective drilling and a fine feed that is ideal for milling or boring. It also has a reverse function so
you can tap holes. The 110 Volt, 3/4 HP motor effectively handles many types of jobs.
Great for a variety of drilling, face
milling and end milling applications
110V, 60HZ, 3/4 HP
Features:
• R8 spindle taper.
• Pre-wired for worklight.
Automatic tapping FINE FEED
depth adjustment
LARGE WORK SURFACE
OptIONAl
pOwER fEEd
ORdER #87-115-972
OptIONAl sAfEtY sHIEld
ORdER #87-115-961
DeScription orDer price SHOWN WITH
#
each
Machinery OPTIONAL STAND
ORDER #87-115-931
Belt Drive Mill/Drill Machine 87-115-929 $1,199.99
optional acceSSorieS for USe With otMt MachineS only
®
Stand 87-115-931 $259.99
3" R8 Facemill 87-115-932 69.99
8 Piece R8 Collet Chuck Set 87-115-933 129.99
Lamp 87-115-934 89.99
Replacement Belt 87-115-970 14.99
Power Feed 87-115-972 459.99
Safety Shield 87-115-961 49.99
SpecificationS:
Drilling Capacity ...................................................................................0.78" (20mm)
Face Milling Capacity ...........................................................................2.48" (63mm)
End Milling Capacity .............................................................................0.78" (20mm)
Distance From Spindle Nose To Table .............................................17.13" (435mm)
Minimum Distance From Spindle Axis Top Column ........................7.15" (181.5mm)
Spindle Travel .....................................................................................4.72" (120mm)
Spindle Taper ......................................................................................................... R8
Step Of Spindle ......................................................................................................12
Range Of Speed
60 Hz ............................................................................................120 ~ 2,640 RPM Spare Parts
Swing Diameter Of Headstock .........................................................15.94" (405mm) Page 684
Swivel Angle Of Headstock ................................................................................ 360°
Size Of Table.........................................................20.47" x 6.30" (520mm x 160mm)
Forward & Backward Travel Of Table .................................................5.51" (140mm)
Left & Right Travel Of Table ..............................................................11.42" (290mm)
Power ............................................................................................................. 3/4 HP
Overall Height (Without Stand) ......................................................41.73" (1,060mm)
Quill Diameter .......................................................................................2.44" (62mm)
Table Slot Size ...................................................................................................0.64"
Overall Dimensions ..................................................... 34.64"L x 30.31"W x 44.88"H HOld-dOwN ClAMps t-slOt BOlts spIRAl pOINtEd tAps
Weight (Net/Gross) .......................................................................330 lbs. / 406 lbs. PAGE 864 PAGE 860 PAGES 267-273
