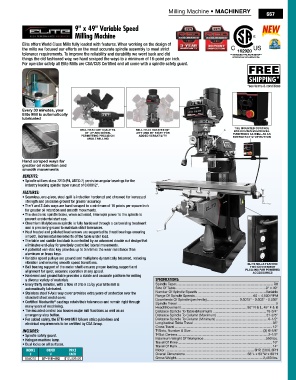

Milling Machine • MACHINERY
667

9" x 49" Variable Speed
Milling Machine

Elite offers World Class Mills fully loaded with features. When working on the design of
the mills we focused our efforts on the most accurate spindle assembly to meet strict
tolerance requirements. To improve the reliability and durability we went back and did
things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch.
For operator safety all Elite Mills are CSA/CUS Certified and all come with a spindle safety guard.

Every 30 minutes, your
Elite Mill is automatically
lubricated

THE MOUNTED CONTROL
MILL HEAD ARTICULATES MILL HEAD ROTATES 90° BOX HOUSES MAJOR MILL
45° UP AND DOWN, LEFT AND 90° RIGHT FOR FUNCTIONS AS WELL AS AN
PERMITTING PRECISION ADDED VERSATILITY EMERGENCY STOP BUTTON
ANGLE MILLING

Hand scraped ways for
greater oil retention and
smooth movements
Benefits:
• Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the
industry leading spindle taper runout of 0.00012".
features:
• Seamless, one-piece, steel quill is induction hardened and chromed for increased
strength and precision ground for greater accuracy.
• The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch
for greater oil retention and smooth movements.
• The electronic spindle brake, when activated, interrupts power to the spindle to
prevent accidental start ups.
• Chromium Molybdenum spindle is fully hardened through a carbonizing treatment
and is precisely ground to maintain strict tolerances.
• Heat treated and polished lead screws are supported by thrust bearings ensuring
smooth, incremental movements of the table under load.
• The table and saddle backlash is controlled by an advanced double nut design that
eliminates end-play for precisely controlled lateral movements.
• A patented vari-disc key provides up to ten times the wear resistance than
aluminum or brass keys.
• Variable speed pulleys are ground and multiplane dynamically balanced, reducing
vibration and ensuring smooth speed transitions. ELITE MILLS FEATURE
• Ball bearing support of the motor shaft ensures proper loading, support and TWO CONVENIENT
alignment for quiet, accurate operation at any speed. PLUG-INS FOR POWERED
ACCESSORIES
• Hardened and ground table provides a stable and accurate platform for milling
a diverse variety of materials. SpecificationS:
• Every thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is Spindle Taper ....................................................................................................... R8
automatically lubricated. Size Of Table................................................................................................9" x 49"
• Stainless steel Y-Axis way cover provides extra years of protection over the Number Of Spindle Speeds ........................................................................Variable
standard sheet metal cover. Range Of Spindle Speeds ............................................................. 60 ~ 4,500 RPM
• Certified Meehanite castings retain their tolerances and remain rigid through Downfeeds Of Spindle (per/rev/in) .................................. 0.0015" - 0.003" - 0.006"
®
Spindle Travel .........................................................................................................5
many years of machining. Head Movement ...................................................................... 90° R & L, 45° F & B
• The mounted control box houses major mill functions as well as an Distance Spindle To Table (Maximum) ........................................................ 18-3/4"
emergency stop button. Distance Spindle To Column (Maximum) .................................................... 21-2/5"
• For added safety, the ETM-949 Mill follows strict guidelines and Distance Spindle To Column (Minimum) ....................................................... 6-1/2"
electrical requirements to be certified by CSA Group. Longitudinal Table Travel ...................................................................................35"
Cross Travel .......................................................................................................12"
includes: T-Slots, Number & Size ............................................................................(3) @ 5/8"
• Spindle safety guard. T-Slot Centers ................................................................................................ 2-1/2"
• Halogen machine lamp. Maximum Weight Of Workpiece ..................................................................550 lbs.
• Dual locks on all surfaces. Travel Of Knee ....................................................................................................16"
Travel Of Ram .....................................................................................................14"
Model order price Motor ...............................................................................................3HP, 230V, 3PH
# # each Overall Dimensions .................................................................. 68"L x 63"W x 80"H
894010 87-118-492 $12,499.00 Gross Weight ............................................................................................2,450 lbs.
