Drill Presses • MACHINERY
671

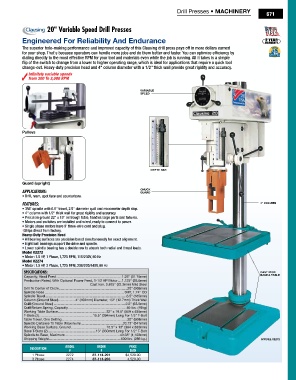

20" Variable Speed Drill Presses

Engineered For Reliability And Endurance

The superior hole-making performance and improved capacity of this Clausing drill press pays off in more dollars earned
for your shop. That's because operators can handle more jobs and do them better and faster. You can optimize efficiency by
dialing directly to the most effective RPM for your tool and materials even while the job is running. All it takes is a simple
flip of the switch to change from a lower to higher operating range, which is ideal for applications that require a quick tool
change-out. Heavy-duty precision head and 4" column diameter with a 1/2" thick wall provide great rigidity and accuracy.
Infinitely variable speeds
from 300 To 2,000 RPM

VARIABLE
SPEED

Pulleys

DEPTH BAR

Guard (upright)
APPLICATIONS: CHUCK
GUARD
• Drill, ream, spot face and counterbore.
FeATureS: 4" COLUMN
• 3MT spindle with 6.5" travel, 2.5" diameter quill and micrometer depth stop.
• 4" column with 1/2" thick wall for great rigidity and accuracy.
• Precision ground 22" x 19" oil trough table, handles large parts and fixtures.
• Motors and switches are installed and wired, ready to connect to power.
• Single phase motors have 8' three-wire cord and plug.
†Ships direct from factory.
Heavy-Duty Precision Head
• All bearing surfaces are precision bored simultaneously for exact alignment.
• Eight ball bearings support the drive and spindle.
• Lower spindle bearing has a double row to absorb both radial and thrust loads.
Model #2272
• Motor: 1.5 HP, 1 Phase, 1,725 RPM, 115/230V, 60 Hz
Model #2274
• Motor: 1.5 HP, 3 Phase, 1,725 RPM, 208/220/440V, 60 Hz
SPecificationS: CAST IRON
Capacity, Hand Feed ......................................................................1.25" (31.75mm) BASE & TABLE
Production Rated, With Optional Power Feed, 1-1/2 HP Motor ....1.125" (28.6mm)
Cast Iron, 0.875" (22.2mm) Mild Steel
Drill To Center of Circle .........................................................................20" (508mm)
Spindle Nose .................................................................................... 3MT, 1.74" OD
Spindle Travel ......................................................................................6.5" (165mm)
Column (Ground Steel) ................. 4" (102mm) Diameter, 1/2" (12.7mm) Thick Wall
Quill (Ground Steel) ............................................................................2.5" (63.5mm)
Quill Return Spring, Capacity ..............................................................40 lbs. (18kg)
Working Table Surface ................................................... 22" x 19.5" (559 x 495mm)
T-Slots (2) .........................................................15.5" (394mm) Long For 1/2" T-Bolt
Table Travel, One Setting ......................................................................20" (508mm)
Spindle Distance To Table (Maximum) ............................................33.13" (841mm)
Working Base Surface, Ground ..................................... 15.5" x 13" (394 x 330mm)
Base T-Slots (2) ..................................................13" (330mm) Long For 1/2" T-Bolt
Spindle to Base, Maximum ..........................................................43.38" (1,102mm)
Shipping Weight ............................................................................630 lbs. (286 kg.) MODEL #2272
MoDel orDer Price
DeScriPtion
# # each
1 Phase 2272 87-114-201 $4,520.00
3 Phase 2274 87-114-203 4,520.00
