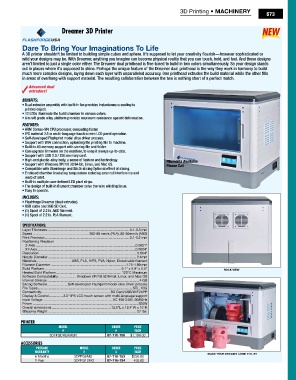

Page 675 - All Industrial Tool Supply | General Catalog

3D Printing • MACHINERY
673

Dreamer 3D Printer

Dare To Bring Your Imaginations To Life
A 3D printer shouldn't be limited to building simple cubes and sphere. It's supposed to let your creativity flourish—however sophisticated or
wild your designs may be. With Dreamer, anything you imagine can become physical reality that you can touch, hold, and feel. And these designs
aren’t limited to just a single color either. The Dreamer dual printhead is fine-tuned to build in two colors simultaneously. So your design stands
out in places where it’s supposed to shine. Perhaps the unique feature of the Dreamer dual printhead is the way they work in harmony to build
much more complex designs, laying down each layer with unparalleled accuracy. One printhead extrudes the build material while the other fills
in areas of overhang with support material. The resulting collaboration between the two is nothing short of a perfect match.
Advanced dual
extruders!
Benefits:
• Dual extruder assembly with built-in fan provides instantaneous cooling to
printed object.
• 12 LEDs illuminate the build chamber in various colors.
• Aircraft grade alloy platform provides maximum resistance against deformation.
features:
• ARM Contex-M4 CPU processor, computing faster.
• IPS material 3.5 in multi-language touch screen LCD panel operation.
• Self-developed Flashprint model slice driver process.
• Support with WiFi connection, uploading the printing file to machine.
• Built-in 4G memory support with storing file and folder.
• Can upgrade firmware on the machine, to keep it always up-to-date.
• Support with USB 2.0 / 32G memory card.
• High-end plastic-alloy body, a sense of fashion and technology. Filaments Available
• Support with Windows XP/7/8 32/64 bit, Linux, and Mac OS. Please Call
• Compatible with Skeinforge and Slic3r slicing Optional effect of slicing.
• Enclosed chamber insulating temperature reducing external interference and
warp of print.
• Built-in multiple user-defined LED pixel strips.
• The design of built-in filament chamber solve the wire winding issue.
• Easy to operate.
includes:
• Flashforge Dreamer (dual-extruder).
• USB cable and 2GB SD Card.
• (1) Spool of 2.2 lb. ABS filament.
• (1) Spool of 2.2 lb. PLA filament.
SPecificationS:
Layer Thickness........................................................................................0.1-0.5 mm
Speed ............................................................200-80 mm/s (PLA), 80-30mm/s (ABS)
Print Precision ..........................................................................................0.1-0.2 mm
Positioning Precision
Z-Axis ..........................................................................................................0.0001"
XY-Axis ........................................................................................................0.0004"
Resolution ........................................................................................................0.004"
Nozzle Diameter ..............................................................................................0.4mm
Materials .....................................ABS, PLA, HIPS, PVA, Nylon, Dissolvable filament
Filament Diameter ................................................................................1.75-1.80 mm
Build Platform ..................................................................................9.1" x 5.9" x 5.5" BACk VIEw
Heated Build Platform ..................................................................... 120°C Maximum
Software Compatability ................... Windows XP/7/8 32/64 bit, Linux, and Mac OS
Internal Storage ..................................................................................................4 GB
Slicing Software......................Self-developed Flashprint model slice driver process
File Types .....................................................................................................STL, X3G
Connectivity ......................................................................... SD Card/USB/WIFI/APP
Display & Control ...............3.5" IPS LCD touch screen with multi-language support
Input Voltage ..........................................................................AC 100-240V, 50/60Hz
Power ................................................................................................................300W
Overall dimensions ...............................................................12.6"L x 18.4"W x 15"H
Shipping Weight .............................................................................................. 27 lbs.
Printer
MoDel orDer Price
# # each
3DFFGDREAMER 87-116-156 $1,199.00
acceSSorieS
Procare MoDel orDer Price
Warranty # # each MAkE YouR DREAMs CoME To LIfE
6 Months 3DFFG6MO 87-116-153 $250.00
1 Year 3DFFG12MO 87-116-154 450.00
