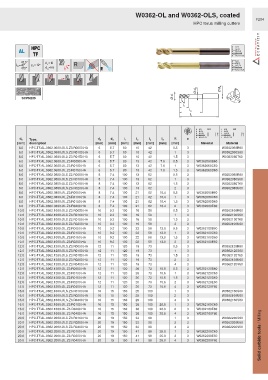

Page 1201 - Ceratizit Catalog

W0362-OL and W0362-OLS, coated
F204
HPC torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCPN235
l 4
l 2
l 3
l 1

HA HA
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material Material
6.0 HPC-TF.AL.0362.0600.OLS.Z3.R0050.HA 6 5.7 80 10 42 0.5 3 W0362060R60
6.0 HPC-TF.AL.0362.0600.OLS.Z3.R0100.HA 6 5.7 80 10 42 1 3 W0362060S60
6.0 HPC-TF.AL.0362.0600.OLS.Z3.R0150.HA 6 5.7 80 10 42 1.5 3 W0362060T60
6.0 HPC-TF.AL.0362.0600.OL.Z3.R0050.HA 6 5.7 80 13 42 7.8 0.5 3 W0362060B60
6.0 HPC-TF.AL.0362.0600.OL.Z3.R0100.HA 6 5.7 80 13 42 7.8 1 3 W0362060C60
6.0 HPC-TF.AL.0362.0600.OL.Z3.R0150.HA 6 5.7 80 13 42 7.8 1.5 3 W0362060D60
8.0 HPC-TF.AL.0362.0800.OLS.Z3.R0050.HA 8 7.4 100 13 62 0.5 3 W0362080R60
8.0 HPC-TF.AL.0362.0800.OLS.Z3.R0100.HA 8 7.4 100 13 62 1 3 W0362080S60
8.0 HPC-TF.AL.0362.0800.OLS.Z3.R0150.HA 8 7.4 100 13 62 1.5 3 W0362080T60
8.0 HPC-TF.AL.0362.0800.OLS.Z3.R0200.HA 8 7.4 100 13 62 2 3 W0362080U60
8.0 HPC-TF.AL.0362.0800.OL.Z3.R0050.HA 8 7.4 100 21 62 10.4 0.5 3 W0362080B60
8.0 HPC-TF.AL.0362.0800.OL.Z3.R0100.HA 8 7.4 100 21 62 10.4 1 3 W0362080C60
8.0 HPC-TF.AL.0362.0800.OL.Z3.R0150.HA 8 7.4 100 21 62 10.4 1.5 3 W0362080D60
8.0 HPC-TF.AL.0362.0800.OL.Z3.R0200.HA 8 7.4 100 21 62 10.4 2 3 W0362080E60
10.0 HPC-TF.AL.0362.1000.OLS.Z3.R0050.HA 10 9.2 100 16 58 0.5 3 W0362100R60
10.0 HPC-TF.AL.0362.1000.OLS.Z3.R0100.HA 10 9.2 100 16 58 1 3 W0362100S60
10.0 HPC-TF.AL.0362.1000.OLS.Z3.R0150.HA 10 9.2 100 16 58 1.5 3 W0362100T60
10.0 HPC-TF.AL.0362.1000.OLS.Z3.R0200.HA 10 9.2 100 16 58 2 3 W0362100U60
10.0 HPC-TF.AL.0362.1000.OL.Z3.R0050.HA 10 9.2 100 22 58 13.0 0.5 3 W0362100B60
10.0 HPC-TF.AL.0362.1000.OL.Z3.R0100.HA 10 9.2 100 22 58 13.0 1 3 W0362100C60
10.0 HPC-TF.AL.0362.1000.OL.Z3.R0150.HA 10 9.2 100 22 58 13.0 1.5 3 W0362100D60
10.0 HPC-TF.AL.0362.1000.OL.Z3.R0200.HA 10 9.2 100 22 58 13.0 2 3 W0362100E60
12.0 HPC-TF.AL.0362.1200.OLS.Z3.R0050.HA 12 11 120 19 73 0.5 3 W0362120R60
12.0 HPC-TF.AL.0362.1200.OLS.Z3.R0100.HA 12 11 120 19 73 1 3 W0362120S60
12.0 HPC-TF.AL.0362.1200.OLS.Z3.R0150.HA 12 11 120 19 73 1.5 3 W0362120T60
12.0 HPC-TF.AL.0362.1200.OLS.Z3.R0200.HA 12 11 120 19 73 2 3 W0362120U60
12.0 HPC-TF.AL.0362.1200.OLS.Z3.R0400.HA 12 11 120 19 73 4 3 W0362120V60
12.0 HPC-TF.AL.0362.1200.OL.Z3.R0050.HA 12 11 120 26 73 15.6 0.5 3 W0362120B60
12.0 HPC-TF.AL.0362.1200.OL.Z3.R0100.HA 12 11 120 26 73 15.6 1 3 W0362120C60
12.0 HPC-TF.AL.0362.1200.OL.Z3.R0150.HA 12 11 120 26 73 15.6 1.5 3 W0362120D60
12.0 HPC-TF.AL.0362.1200.OL.Z3.R0200.HA 12 11 120 26 73 15.6 2 3 W0362120E60
12.0 HPC-TF.AL.0362.1200.OL.Z3.R0400.HA 12 11 120 26 73 15.6 4 3 W0362120F60
16.0 HPC-TF.AL.0362.1600.OLS.Z3.R0100.HA 16 15 150 25 100 1 3 W0362160S60
16.0 HPC-TF.AL.0362.1600.OLS.Z3.R0200.HA 16 15 150 25 100 2 3 W0362160U60
16.0 HPC-TF.AL.0362.1600.OLS.Z3.R0400.HA 16 15 150 25 100 4 3 W0362160V60
16.0 HPC-TF.AL.0362.1600.OL.Z3.R0100.HA 16 15 150 36 100 20.8 1 3 W0362160C60
16.0 HPC-TF.AL.0362.1600.OL.Z3.R0200.HA 16 15 150 36 100 20.8 2 3 W0362160E60
Solid carbide tools / Milling
16.0 HPC-TF.AL.0362.1600.OL.Z3.R0400.HA 16 15 150 36 100 20.8 4 3 W0362160F60
20.0 HPC-TF.AL.0362.2000.OLS.Z3.R0100.HA 20 19 150 32 98 1 3 W0362200S60
20.0 HPC-TF.AL.0362.2000.OLS.Z3.R0200.HA 20 19 150 32 98 2 3 W0362200U60
20.0 HPC-TF.AL.0362.2000.OLS.Z3.R0400.HA 20 19 150 32 98 4 3 W0362200V60
20.0 HPC-TF.AL.0362.2000.OL.Z3.R0100.HA 20 19 150 41 98 26.0 1 3 W0362200C60
20.0 HPC-TF.AL.0362.2000.OL.Z3.R0200.HA 20 19 150 41 98 26.0 2 3 W0362200E60
20.0 HPC-TF.AL.0362.2000.OL.Z3.R0400.HA 20 19 150 41 98 26.0 4 3 W0362200F60
