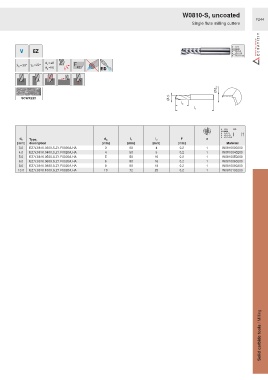

Page 1241 - Ceratizit Catalog

W0810-S, uncoated
F244
Single flute milling cutters

Ø d A
Ø d 1
SCWX225
l 2
l 1

HA
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 EZ.V.0810.0300.S.Z1.F0020A.HA 3 50 4 0.2 1 W0810030200
4.0 EZ.V.0810.0400.S.Z1.F0020A.HA 4 50 5 0.2 1 W0810040200
5.0 EZ.V.0810.0500.S.Z1.F0020A.HA 5 50 16 0.2 1 W0810050200
6.0 EZ.V.0810.0600.S.Z1.F0020A.HA 6 50 16 0.2 1 W0810060200
8.0 EZ.V.0810.0800.S.Z1.F0020A.HA 8 50 18 0.2 1 W0810080200
10.0 EZ.V.0810.1000.S.Z1.F0020A.HA 10 72 25 0.2 1 W0810100200

Solid carbide tools / Milling
