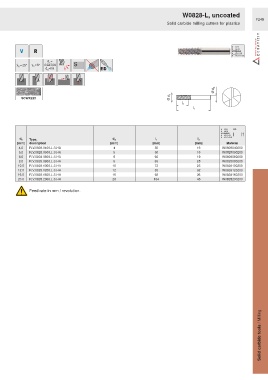

Page 1245 - Ceratizit Catalog

W0828-L, uncoated
F248
Solid carbide milling cutters for plastics

Ø d A
Ø d 1
SCWX225
l 2
l 1

HA
d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
4.0 R.V.0828.0400.L.S.HA 4 50 16 W0828040200
5.0 R.V.0828.0500.L.S.HA 5 50 16 W0828050200
6.0 R.V.0828.0600.L.S.HA 6 60 19 W0828060200
8.0 R.V.0828.0800.L.S.HA 8 63 25 W0828080200
10.0 R.V.0828.1000.L.S.HA 10 72 25 W0828100200
12.0 R.V.0828.1200.L.S.HA 12 83 32 W0828120200
16.0 R.V.0828.1600.L.S.HA 16 92 36 W0828160200
20.0 R.V.0828.2000.L.S.HA 20 104 45 W0828200200

Feed rate in mm / revolution.

Solid carbide tools / Milling
