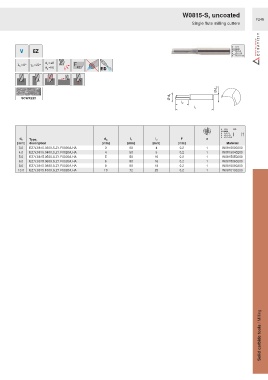

Page 1243 - Ceratizit Catalog

W0815-S, uncoated
F246
Single flute milling cutters

Ø d A
Ø d 1
SCWX225
l 2
l 1

HA
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 EZ.V.0815.0300.S.Z1.F0020A.HA 3 50 4 0.2 1 W0815030200
4.0 EZ.V.0815.0400.S.Z1.F0020A.HA 4 50 5 0.2 1 W0815040200
5.0 EZ.V.0815.0500.S.Z1.F0020A.HA 5 50 16 0.2 1 W0815050200
6.0 EZ.V.0815.0600.S.Z1.F0020A.HA 6 50 16 0.2 1 W0815060200
8.0 EZ.V.0815.0800.S.Z1.F0020A.HA 8 50 18 0.2 1 W0815080200
10.0 EZ.V.0815.1000.S.Z1.F0020A.HA 10 72 25 0.2 1 W0815100200

Solid carbide tools / Milling
