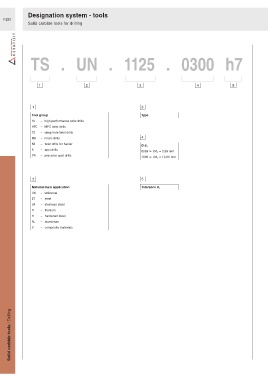

Designation system - tools
F281
Solid carbide tools for drilling

TS . UN . 1125 . 0300 h7

1 2 3 4 5

1 3

Tool group Type
HL – high-performance twist drills
HPC – HPC twist drills
TS – deep hole twist drills
MB – micro-drills 4
KS – twist drills for Kevlar
Ø d 1
A – spot drills
0399 ➢ Ød 1 = 3,99 mm
PA – precision spot drills
1000 ➢ Ød 1 = 10,00 mm

2 5

Material main application Tolerance d 1
UN – universal
ST – steel
VA – stainless steel
TI – titanium
H – hardened steel
AL – aluminium
V – composite materials

Solid carbide tools / Drilling
