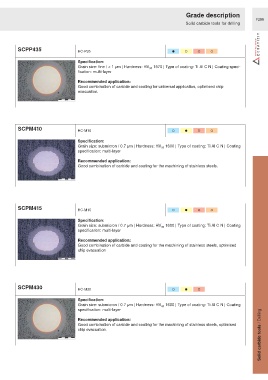

Page 1283 - Ceratizit Catalog
P. 1283
Grade description
F286
Solid carbide tools for drilling
SCPP435 HC-P35 ● ○ ○ ○
Specification:
Grain size: fine / < 1 µm | Hardness: HV 1570 | Type of coating: Ti Al C N | Coating speci-
30
fication: multi-layer
Recommended application:
Good combination of carbide and coating for universal application, optimised chip
evacuation.
SCPM410
HC-M10 ○ ● ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Type of coating: Ti Al C N | Coating
30
specification: multi-layer
Recommended application:
Good combination of carbide and coating for the machining of stainless steels.
SCPM415 HC-M15 ○ ● ○ ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Type of coating: Ti Al C N | Coating
30
specification: multi-layer
Recommended application:
Good combination of carbide and coating for the machining of stainless steels, optimised
chip evacuation
SCPM430 HC-M30 ○ ● ○
Specification:
Grain size: submicron / 0.7 µm | Hardness: HV 1600 | Type of coating: Ti Al C N | Coating
30
specification: multi-layer
Solid carbide tools / Drilling
Recommended application:
Good combination of carbide and coating for the machining of stainless steels, optimised
chip evacuation.
