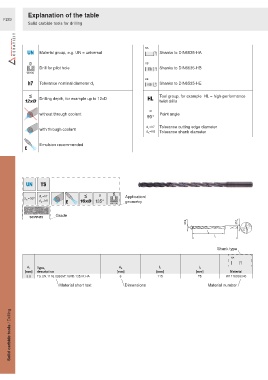

Explanation of the table
F283
Solid carbide tools for drilling

HA
Material group, e.g. UN = universal Shanks to DIN6535-HA

HB
Drill for pilot hole Shanks to DIN6535-HB
W1106

Tolerance nominal diameter d 1 Shanks to DIN6535-HE

Tool group, for example HL = high-performance
Drilling depth, for example up to 12xD
twist drills
σ
without through coolant Point angle
90°

Tolerance cutting edge diameter
with through coolant
Tolerance shank diameter

Emulsion recommended

σ Application/
135° geometry
W0108

Grade
SCPP415
Ø d 1 Ø d A
σ
l
2
l
1
Shank type

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.8 TS.UN.1116.0380h7.16XD.135.IK.HA 6 115 75 W1116038340

Material short text Dimensions Material number

Solid carbide tools / Drilling
