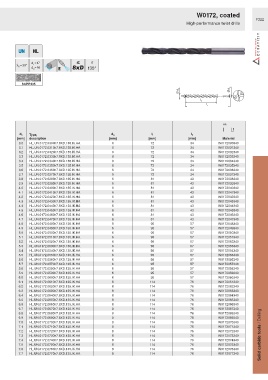

Page 1319 - Ceratizit Catalog

W0172, coated
F322
High-performance twist drills

σ
135°

SCPP435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HL.UN.0172.0300h7.8XD.135.IK.HA 6 72 34 W0172030340
3.1 HL.UN.0172.0310h7.8XD.135.IK.HA 6 72 34 W0172031340
3.2 HL.UN.0172.0320h7.8XD.135.IK.HA 6 72 34 W0172032340
3.3 HL.UN.0172.0330h7.8XD.135.IK.HA 6 72 34 W0172033340
3.4 HL.UN.0172.0340h7.8XD.135.IK.HA 6 72 34 W0172034340
3.5 HL.UN.0172.0350h7.8XD.135.IK.HA 6 72 34 W0172035340
3.6 HL.UN.0172.0360h7.8XD.135.IK.HA 6 72 34 W0172036340
3.7 HL.UN.0172.0370h7.8XD.135.IK.HA 6 72 34 W0172037340
3.8 HL.UN.0172.0380h7.8XD.135.IK.HA 6 81 43 W0172038340
3.9 HL.UN.0172.0390h7.8XD.135.IK.HA 6 81 43 W0172039340
4.0 HL.UN.0172.0400h7.8XD.135.IK.HA 6 81 43 W0172040340
4.1 HL.UN.0172.0410h7.8XD.135.IK.HA 6 81 43 W0172041340
4.2 HL.UN.0172.0420h7.8XD.135.IK.HA 6 81 43 W0172042340
4.3 HL.UN.0172.0430h7.8XD.135.IK.HA 6 81 43 W0172043340
4.4 HL.UN.0172.0440h7.8XD.135.IK.HA 6 81 43 W0172044340
4.5 HL.UN.0172.0450h7.8XD.135.IK.HA 6 81 43 W0172045340
4.6 HL.UN.0172.0460h7.8XD.135.IK.HA 6 81 43 W0172046340
4.7 HL.UN.0172.0470h7.8XD.135.IK.HA 6 81 43 W0172047340
4.8 HL.UN.0172.0480h7.8XD.135.IK.HA 6 95 57 W0172048340
4.9 HL.UN.0172.0490h7.8XD.135.IK.HA 6 95 57 W0172049340
5.0 HL.UN.0172.0500h7.8XD.135.IK.HA 6 95 57 W0172050340
5.1 HL.UN.0172.0510h7.8XD.135.IK.HA 6 95 57 W0172051340
5.2 HL.UN.0172.0520h7.8XD.135.IK.HA 6 95 57 W0172052340
5.3 HL.UN.0172.0530h7.8XD.135.IK.HA 6 95 57 W0172053340
5.4 HL.UN.0172.0540h7.8XD.135.IK.HA 6 95 57 W0172054340
5.5 HL.UN.0172.0550h7.8XD.135.IK.HA 6 95 57 W0172055340
5.6 HL.UN.0172.0560h7.8XD.135.IK.HA 6 95 57 W0172056340
5.7 HL.UN.0172.0570h7.8XD.135.IK.HA 6 95 57 W0172057340
5.8 HL.UN.0172.0580h7.8XD.135.IK.HA 6 95 57 W0172058340
5.9 HL.UN.0172.0590h7.8XD.135.IK.HA 6 95 57 W0172059340
6.0 HL.UN.0172.0600h7.8XD.135.IK.HA 6 95 57 W0172060340
6.1 HL.UN.0172.0610h7.8XD.135.IK.HA 8 114 76 W0172061340
6.2 HL.UN.0172.0620h7.8XD.135.IK.HA 8 114 76 W0172062340
6.3 HL.UN.0172.0630h7.8XD.135.IK.HA 8 114 76 W0172063340
6.4 HL.UN.0172.0640h7.8XD.135.IK.HA 8 114 76 W0172064340
6.5 HL.UN.0172.0650h7.8XD.135.IK.HA 8 114 76 W0172065340
6.6 HL.UN.0172.0660h7.8XD.135.IK.HA 8 114 76 W0172066340
6.7 HL.UN.0172.0670h7.8XD.135.IK.HA 8 114 76 W0172067340
6.8 HL.UN.0172.0680h7.8XD.135.IK.HA 8 114 76 W0172068340
6.9 HL.UN.0172.0690h7.8XD.135.IK.HA 8 114 76 W0172069340
7.0 HL.UN.0172.0700h7.8XD.135.IK.HA 8 114 76 W0172070340
7.1 HL.UN.0172.0710h7.8XD.135.IK.HA 8 114 76 W0172071340
7.2 HL.UN.0172.0720h7.8XD.135.IK.HA 8 114 76 W0172072340
7.3 HL.UN.0172.0730h7.8XD.135.IK.HA 8 114 76 W0172073340 Solid carbide tools / Drilling
7.4 HL.UN.0172.0740h7.8XD.135.IK.HA 8 114 76 W0172074340
7.5 HL.UN.0172.0750h7.8XD.135.IK.HA 8 114 76 W0172075340
7.6 HL.UN.0172.0760h7.8XD.135.IK.HA 8 114 76 W0172076340
7.7 HL.UN.0172.0770h7.8XD.135.IK.HA 8 114 76 W0172077340
