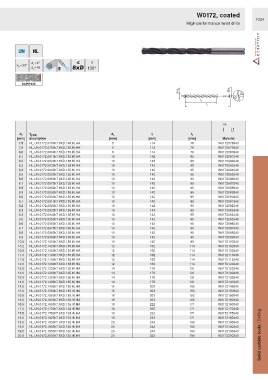

Page 1321 - Ceratizit Catalog

W0172, coated
F324
High-performance twist drills

σ
135°

SCPP435
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HL.UN.0172.0780h7.8XD.135.IK.HA 8 114 76 W0172078340
7.9 HL.UN.0172.0790h7.8XD.135.IK.HA 8 114 76 W0172079340
8.0 HL.UN.0172.0800h7.8XD.135.IK.HA 8 114 76 W0172080340
8.1 HL.UN.0172.0810h7.8XD.135.IK.HA 10 142 95 W0172081340
8.2 HL.UN.0172.0820h7.8XD.135.IK.HA 10 142 95 W0172082340
8.3 HL.UN.0172.0830h7.8XD.135.IK.HA 10 142 95 W0172083340
8.4 HL.UN.0172.0840h7.8XD.135.IK.HA 10 142 95 W0172084340
8.5 HL.UN.0172.0850h7.8XD.135.IK.HA 10 142 95 W0172085340
8.6 HL.UN.0172.0860h7.8XD.135.IK.HA 10 142 95 W0172086340
8.7 HL.UN.0172.0870h7.8XD.135.IK.HA 10 142 95 W0172087340
8.8 HL.UN.0172.0880h7.8XD.135.IK.HA 10 142 95 W0172088340
8.9 HL.UN.0172.0890h7.8XD.135.IK.HA 10 142 95 W0172089340
9.0 HL.UN.0172.0900h7.8XD.135.IK.HA 10 142 95 W0172090340
9.1 HL.UN.0172.0910h7.8XD.135.IK.HA 10 142 95 W0172091340
9.2 HL.UN.0172.0920h7.8XD.135.IK.HA 10 142 95 W0172092340
9.3 HL.UN.0172.0930h7.8XD.135.IK.HA 10 142 95 W0172093340
9.4 HL.UN.0172.0940h7.8XD.135.IK.HA 10 142 95 W0172094340
9.5 HL.UN.0172.0950h7.8XD.135.IK.HA 10 142 95 W0172095340
9.6 HL.UN.0172.0960h7.8XD.135.IK.HA 10 142 95 W0172096340
9.7 HL.UN.0172.0970h7.8XD.135.IK.HA 10 142 95 W0172097340
9.8 HL.UN.0172.0980h7.8XD.135.IK.HA 10 142 95 W0172098340
9.9 HL.UN.0172.0990h7.8XD.135.IK.HA 10 142 95 W0172099340
10.0 HL.UN.0172.1000h7.8XD.135.IK.HA 10 142 95 W0172100340
10.2 HL.UN.0172.1020h7.8XD.135.IK.HA 12 162 114 W0172102340
10.5 HL.UN.0172.1050h7.8XD.135.IK.HA 12 162 114 W0172105340
11.0 HL.UN.0172.1100h7.8XD.135.IK.HA 12 162 114 W0172110340
11.5 HL.UN.0172.1150h7.8XD.135.IK.HA 12 162 114 W0172115340
12.0 HL.UN.0172.1200h7.8XD.135.IK.HA 12 162 114 W0172120340
12.5 HL.UN.0172.1250h7.8XD.135.IK.HA 14 178 131 W0172125340
13.0 HL.UN.0172.1300h7.8XD.135.IK.HA 14 178 131 W0172130340
13.5 HL.UN.0172.1350h7.8XD.135.IK.HA 14 178 131 W0172135340
14.0 HL.UN.0172.1400h7.8XD.135.IK.HA 14 178 131 W0172140340
14.5 HL.UN.0172.1450h7.8XD.135.IK.HA 16 203 152 W0172145340
15.0 HL.UN.0172.1500h7.8XD.135.IK.HA 16 203 152 W0172150340
15.5 HL.UN.0172.1550h7.8XD.135.IK.HA 16 203 152 W0172155340
16.0 HL.UN.0172.1600h7.8XD.135.IK.HA 16 203 152 W0172160340
16.5 HL.UN.0172.1650h7.8XD.135.IK.HA 18 222 171 W0172165340
17.0 HL.UN.0172.1700h7.8XD.135.IK.HA 18 222 171 W0172170340
Solid carbide tools / Drilling
17.5 HL.UN.0172.1750h7.8XD.135.IK.HA 18 222 171 W0172175340
18.0 HL.UN.0172.1800h7.8XD.135.IK.HA 18 222 171 W0172180340
18.5 HL.UN.0172.1850h7.8XD.135.IK.HA 20 243 190 W0172185340
19.0 HL.UN.0172.1900h7.8XD.135.IK.HA 20 243 190 W0172190340
19.5 HL.UN.0172.1950h7.8XD.135.IK.HA 20 243 190 W0172195340
20.0 HL.UN.0172.2000h7.8XD.135.IK.HA 20 243 190 W0172200340
