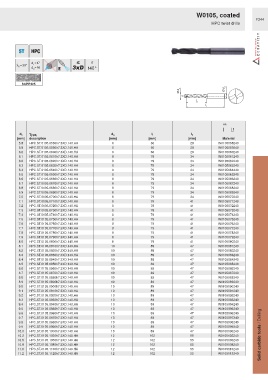

Page 1341 - Ceratizit Catalog

W0105, coated
F344
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
5.8 HPC.ST.0105.0580h7.3XD.140.HA 6 66 28 W0105058240
5.9 HPC.ST.0105.0590h7.3XD.140.HA 6 66 28 W0105059240
6.0 HPC.ST.0105.0600h7.3XD.140.HA 6 66 28 W0105060240
6.1 HPC.ST.0105.0610h7.3XD.140.HA 8 79 34 W0105061240
6.2 HPC.ST.0105.0620h7.3XD.140.HA 8 79 34 W0105062240
6.3 HPC.ST.0105.0630h7.3XD.140.HA 8 79 34 W0105063240
6.4 HPC.ST.0105.0640h7.3XD.140.HA 8 79 34 W0105064240
6.5 HPC.ST.0105.0650h7.3XD.140.HA 8 79 34 W0105065240
6.6 HPC.ST.0105.0660h7.3XD.140.HA 8 79 34 W0105066240
6.7 HPC.ST.0105.0670h7.3XD.140.HA 8 79 34 W0105067240
6.8 HPC.ST.0105.0680h7.3XD.140.HA 8 79 34 W0105068240
6.9 HPC.ST.0105.0690h7.3XD.140.HA 8 79 34 W0105069240
7.0 HPC.ST.0105.0700h7.3XD.140.HA 8 79 34 W0105070240
7.1 HPC.ST.0105.0710h7.3XD.140.HA 8 79 41 W0105071240
7.2 HPC.ST.0105.0720h7.3XD.140.HA 8 79 41 W0105072240
7.3 HPC.ST.0105.0730h7.3XD.140.HA 8 79 41 W0105073240
7.4 HPC.ST.0105.0740h7.3XD.140.HA 8 79 41 W0105074240
7.5 HPC.ST.0105.0750h7.3XD.140.HA 8 79 41 W0105075240
7.6 HPC.ST.0105.0760h7.3XD.140.HA 8 79 41 W0105076240
7.7 HPC.ST.0105.0770h7.3XD.140.HA 8 79 41 W0105077240
7.8 HPC.ST.0105.0780h7.3XD.140.HA 8 79 41 W0105078240
7.9 HPC.ST.0105.0790h7.3XD.140.HA 8 79 41 W0105079240
8.0 HPC.ST.0105.0800h7.3XD.140.HA 8 79 41 W0105080240
8.1 HPC.ST.0105.0810h7.3XD.140.HA 10 89 47 W0105081240
8.2 HPC.ST.0105.0820h7.3XD.140.HA 10 89 47 W0105082240
8.3 HPC.ST.0105.0830h7.3XD.140.HA 10 89 47 W0105083240
8.4 HPC.ST.0105.0840h7.3XD.140.HA 10 89 47 W0105084240
8.5 HPC.ST.0105.0850h7.3XD.140.HA 10 89 47 W0105085240
8.6 HPC.ST.0105.0860h7.3XD.140.HA 10 89 47 W0105086240
8.7 HPC.ST.0105.0870h7.3XD.140.HA 10 89 47 W0105087240
8.8 HPC.ST.0105.0880h7.3XD.140.HA 10 89 47 W0105088240
8.9 HPC.ST.0105.0890h7.3XD.140.HA 10 89 47 W0105089240
9.0 HPC.ST.0105.0900h7.3XD.140.HA 10 89 47 W0105090240
9.1 HPC.ST.0105.0910h7.3XD.140.HA 10 89 47 W0105091240
9.2 HPC.ST.0105.0920h7.3XD.140.HA 10 89 47 W0105092240
9.3 HPC.ST.0105.0930h7.3XD.140.HA 10 89 47 W0105093240
9.4 HPC.ST.0105.0940h7.3XD.140.HA 10 89 47 W0105094240
9.5 HPC.ST.0105.0950h7.3XD.140.HA 10 89 47 W0105095240
9.6 HPC.ST.0105.0960h7.3XD.140.HA 10 89 47 W0105096240
9.7 HPC.ST.0105.0970h7.3XD.140.HA 10 89 47 W0105097240
9.8 HPC.ST.0105.0980h7.3XD.140.HA 10 89 47 W0105098240
9.9 HPC.ST.0105.0990h7.3XD.140.HA 10 89 47 W0105099240
10.0 HPC.ST.0105.1000h7.3XD.140.HA 10 89 47 W0105100240
10.2 HPC.ST.0105.1020h7.3XD.140.HA 12 102 55 W0105102240 Solid carbide tools / Drilling
10.5 HPC.ST.0105.1050h7.3XD.140.HA 12 102 55 W0105105240
10.8 HPC.ST.0105.1080h7.3XD.140.HA 12 102 55 W0105108240
11.0 HPC.ST.0105.1100h7.3XD.140.HA 12 102 55 W0105110240
11.2 HPC.ST.0105.1120h7.3XD.140.HA 12 102 55 W0105112240
