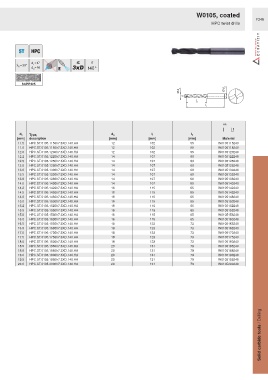

Page 1343 - Ceratizit Catalog

W0105, coated
F346
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
11.5 HPC.ST.0105.1150h7.3XD.140.HA 12 102 55 W0105115240
11.8 HPC.ST.0105.1180h7.3XD.140.HA 12 102 55 W0105118240
12.0 HPC.ST.0105.1200h7.3XD.140.HA 12 102 55 W0105120240
12.2 HPC.ST.0105.1220h7.3XD.140.HA 14 107 60 W0105122240
12.5 HPC.ST.0105.1250h7.3XD.140.HA 14 107 60 W0105125240
12.8 HPC.ST.0105.1280h7.3XD.140.HA 14 107 60 W0105128240
13.0 HPC.ST.0105.1300h7.3XD.140.HA 14 107 60 W0105130240
13.5 HPC.ST.0105.1350h7.3XD.140.HA 14 107 60 W0105135240
13.8 HPC.ST.0105.1380h7.3XD.140.HA 14 107 60 W0105138240
14.0 HPC.ST.0105.1400h7.3XD.140.HA 14 107 60 W0105140240
14.2 HPC.ST.0105.1420h7.3XD.140.HA 16 115 65 W0105142240
14.5 HPC.ST.0105.1450h7.3XD.140.HA 16 115 65 W0105145240
14.8 HPC.ST.0105.1480h7.3XD.140.HA 16 115 65 W0105148240
15.0 HPC.ST.0105.1500h7.3XD.140.HA 16 115 65 W0105150240
15.2 HPC.ST.0105.1520h7.3XD.140.HA 16 115 65 W0105152240
15.5 HPC.ST.0105.1550h7.3XD.140.HA 16 115 65 W0105155240
15.8 HPC.ST.0105.1580h7.3XD.140.HA 16 115 65 W0105158240
16.0 HPC.ST.0105.1600h7.3XD.140.HA 16 115 65 W0105160240
16.5 HPC.ST.0105.1650h7.3XD.140.HA 18 123 73 W0105165240
16.8 HPC.ST.0105.1680h7.3XD.140.HA 18 123 73 W0105168240
17.0 HPC.ST.0105.1700h7.3XD.140.HA 18 123 73 W0105170240
17.5 HPC.ST.0105.1750h7.3XD.140.HA 18 123 73 W0105175240
18.0 HPC.ST.0105.1800h7.3XD.140.HA 18 123 73 W0105180240
18.5 HPC.ST.0105.1850h7.3XD.140.HA 20 131 79 W0105185240
18.8 HPC.ST.0105.1880h7.3XD.140.HA 20 131 79 W0105188240
19.0 HPC.ST.0105.1900h7.3XD.140.HA 20 131 79 W0105190240
19.5 HPC.ST.0105.1950h7.3XD.140.HA 20 131 79 W0105195240
20.0 HPC.ST.0105.2000h7.3XD.140.HA 20 131 79 W0105200240

Solid carbide tools / Drilling
