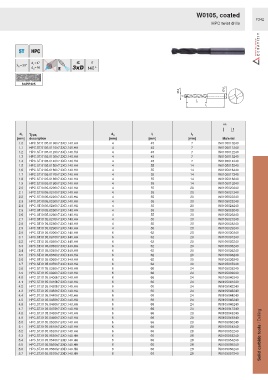

Page 1339 - Ceratizit Catalog

W0105, coated
F342
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
1.0 HPC.ST.0105.0100h7.3XD.140.HA 4 45 7 W0105010240
1.1 HPC.ST.0105.0110h7.3XD.140.HA 4 45 7 W0105011240
1.2 HPC.ST.0105.0120h7.3XD.140.HA 4 45 7 W0105012240
1.3 HPC.ST.0105.0130h7.3XD.140.HA 4 45 7 W0105013240
1.4 HPC.ST.0105.0140h7.3XD.140.HA 4 45 7 W0105014240
1.5 HPC.ST.0105.0150h7.3XD.140.HA 4 55 14 W0105015240
1.6 HPC.ST.0105.0160h7.3XD.140.HA 4 55 14 W0105016240
1.7 HPC.ST.0105.0170h7.3XD.140.HA 4 55 14 W0105017240
1.8 HPC.ST.0105.0180h7.3XD.140.HA 4 55 14 W0105018240
1.9 HPC.ST.0105.0190h7.3XD.140.HA 4 55 14 W0105019240
2.0 HPC.ST.0105.0200h7.3XD.140.HA 4 55 20 W0105020240
2.1 HPC.ST.0105.0210h7.3XD.140.HA 4 55 20 W0105021240
2.2 HPC.ST.0105.0220h7.3XD.140.HA 4 55 20 W0105022240
2.3 HPC.ST.0105.0230h7.3XD.140.HA 4 55 20 W0105023240
2.4 HPC.ST.0105.0240h7.3XD.140.HA 4 55 20 W0105024240
2.5 HPC.ST.0105.0250h7.3XD.140.HA 4 55 20 W0105025240
2.6 HPC.ST.0105.0260h7.3XD.140.HA 4 55 20 W0105026240
2.7 HPC.ST.0105.0270h7.3XD.140.HA 4 55 20 W0105027240
2.8 HPC.ST.0105.0280h7.3XD.140.HA 4 55 20 W0105028240
2.9 HPC.ST.0105.0290h7.3XD.140.HA 4 55 20 W0105029240
3.0 HPC.ST.0105.0300h7.3XD.140.HA 6 62 20 W0105030240
3.1 HPC.ST.0105.0310h7.3XD.140.HA 6 62 20 W0105031240
3.2 HPC.ST.0105.0320h7.3XD.140.HA 6 62 20 W0105032240
3.3 HPC.ST.0105.0330h7.3XD.140.HA 6 62 20 W0105033240
3.4 HPC.ST.0105.0340h7.3XD.140.HA 6 62 20 W0105034240
3.5 HPC.ST.0105.0350h7.3XD.140.HA 6 62 20 W0105035240
3.6 HPC.ST.0105.0360h7.3XD.140.HA 6 62 20 W0105036240
3.7 HPC.ST.0105.0370h7.3XD.140.HA 6 62 20 W0105037240
3.8 HPC.ST.0105.0380h7.3XD.140.HA 6 66 24 W0105038240
3.9 HPC.ST.0105.0390h7.3XD.140.HA 6 66 24 W0105039240
4.0 HPC.ST.0105.0400h7.3XD.140.HA 6 66 24 W0105040240
4.1 HPC.ST.0105.0410h7.3XD.140.HA 6 66 24 W0105041240
4.2 HPC.ST.0105.0420h7.3XD.140.HA 6 66 24 W0105042240
4.3 HPC.ST.0105.0430h7.3XD.140.HA 6 66 24 W0105043240
4.4 HPC.ST.0105.0440h7.3XD.140.HA 6 66 24 W0105044240
4.5 HPC.ST.0105.0450h7.3XD.140.HA 6 66 24 W0105045240
4.6 HPC.ST.0105.0460h7.3XD.140.HA 6 66 24 W0105046240
4.7 HPC.ST.0105.0470h7.3XD.140.HA 6 66 24 W0105047240
4.8 HPC.ST.0105.0480h7.3XD.140.HA 6 66 28 W0105048240
4.9 HPC.ST.0105.0490h7.3XD.140.HA 6 66 28 W0105049240
5.0 HPC.ST.0105.0500h7.3XD.140.HA 6 66 28 W0105050240
5.1 HPC.ST.0105.0510h7.3XD.140.HA 6 66 28 W0105051240
5.2 HPC.ST.0105.0520h7.3XD.140.HA 6 66 28 W0105052240
5.3 HPC.ST.0105.0530h7.3XD.140.HA 6 66 28 W0105053240 Solid carbide tools / Drilling
5.4 HPC.ST.0105.0540h7.3XD.140.HA 6 66 28 W0105054240
5.5 HPC.ST.0105.0550h7.3XD.140.HA 6 66 28 W0105055240
5.6 HPC.ST.0105.0560h7.3XD.140.HA 6 66 28 W0105056240
5.7 HPC.ST.0105.0570h7.3XD.140.HA 6 66 28 W0105057240
