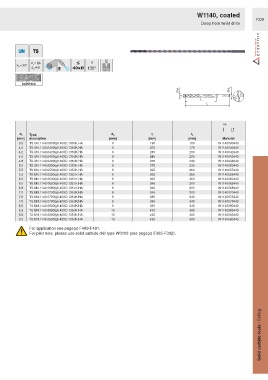

Page 1335 - Ceratizit Catalog

W1140, coated
F338
Deep hole twist drills

σ
135°
W0108

SCPP420
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 TS.UN.1140.0300fg6.40XD.135.IK.HA 6 195 150 W1140030440
4.0 TS.UN.1140.0400fg6.40XD.135.IK.HA 6 220 175 W1140040440
4.2 TS.UN.1140.0420fg6.40XD.135.IK.HA 6 245 200 W1140042440
4.5 TS.UN.1140.0450fg6.40XD.135.IK.HA 6 245 200 W1140045440
4.8 TS.UN.1140.0480fg6.40XD.135.IK.HA 6 275 230 W1140048440
5.0 TS.UN.1140.0500fg6.40XD.135.IK.HA 6 275 230 W1140050440
5.5 TS.UN.1140.0550fg6.40XD.135.IK.HA 6 305 260 W1140055440
5.8 TS.UN.1140.0580fg6.40XD.135.IK.HA 6 305 260 W1140058440
6.0 TS.UN.1140.0600fg6.40XD.135.IK.HA 6 305 260 W1140060440
6.5 TS.UN.1140.0650fg6.40XD.135.IK.HA 8 345 300 W1140065440
6.8 TS.UN.1140.0680fg6.40XD.135.IK.HA 8 345 300 W1140068440
7.0 TS.UN.1140.0700fg6.40XD.135.IK.HA 8 345 300 W1140070440
7.5 TS.UN.1140.0750fg6.40XD.135.IK.HA 8 385 340 W1140075440
7.8 TS.UN.1140.0780fg6.40XD.135.IK.HA 8 385 340 W1140078440
8.0 TS.UN.1140.0800fg6.40XD.135.IK.HA 8 385 340 W1140080440
8.5 TS.UN.1140.0850fg6.40XD.135.IK.HA 10 430 380 W1140085440
8.8 TS.UN.1140.0880fg6.40XD.135.IK.HA 10 430 380 W1140088440
9.0 TS.UN.1140.0900fg6.40XD.135.IK.HA 10 430 380 W1140090440

For application see page(s) F489-F491.

For pilot hole, please use solid carbide drill type W0108 (see page(s) F385-F392).
