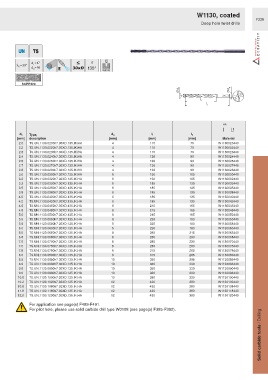

W1130, coated
F336
Deep hole twist drills

σ
135°
W0108

SCPP420
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
2.0 TS.UN.1130.0200h7.30XD.135.IK.HA 4 115 70 W1130020440
2.2 TS.UN.1130.0220h7.30XD.135.IK.HA 4 115 70 W1130022440
2.3 TS.UN.1130.0230h7.30XD.135.IK.HA 4 115 70 W1130023440
2.4 TS.UN.1130.0240h7.30XD.135.IK.HA 4 138 90 W1130024440
2.5 TS.UN.1130.0250h7.30XD.135.IK.HA 4 138 90 W1130025440
2.7 TS.UN.1130.0270h7.30XD.135.IK.HA 4 138 90 W1130027440
2.8 TS.UN.1130.0280h7.30XD.135.IK.HA 4 138 90 W1130028440
3.0 TS.UN.1130.0300h7.30XD.135.IK.HA 6 150 105 W1130030440
3.2 TS.UN.1130.0320h7.30XD.135.IK.HA 6 150 105 W1130032440
3.3 TS.UN.1130.0330h7.30XD.135.IK.HA 6 185 135 W1130033440
3.5 TS.UN.1130.0350h7.30XD.135.IK.HA 6 185 135 W1130035440
3.8 TS.UN.1130.0380h7.30XD.135.IK.HA 6 185 135 W1130038440
4.0 TS.UN.1130.0400h7.30XD.135.IK.HA 6 185 135 W1130040440
4.2 TS.UN.1130.0420h7.30XD.135.IK.HA 6 185 135 W1130042440
4.5 TS.UN.1130.0450h7.30XD.135.IK.HA 6 215 165 W1130045440
4.8 TS.UN.1130.0480h7.30XD.135.IK.HA 6 215 165 W1130048440
5.0 TS.UN.1130.0500h7.30XD.135.IK.HA 6 215 165 W1130050440
5.5 TS.UN.1130.0550h7.30XD.135.IK.HA 6 230 180 W1130055440
5.8 TS.UN.1130.0580h7.30XD.135.IK.HA 6 230 180 W1130058440
6.0 TS.UN.1130.0600h7.30XD.135.IK.HA 6 230 180 W1130060440
6.5 TS.UN.1130.0650h7.30XD.135.IK.HA 8 280 215 W1130065440
6.8 TS.UN.1130.0680h7.30XD.135.IK.HA 8 280 230 W1130068440
7.0 TS.UN.1130.0700h7.30XD.135.IK.HA 8 280 230 W1130070440
7.5 TS.UN.1130.0750h7.30XD.135.IK.HA 8 280 230 W1130075440
7.8 TS.UN.1130.0780h7.30XD.135.IK.HA 8 315 265 W1130078440
8.0 TS.UN.1130.0800h7.30XD.135.IK.HA 8 315 265 W1130080440
8.5 TS.UN.1130.0850h7.30XD.135.IK.HA 10 350 295 W1130085440
8.8 TS.UN.1130.0880h7.30XD.135.IK.HA 10 380 330 W1130088440
9.0 TS.UN.1130.0900h7.30XD.135.IK.HA 10 380 330 W1130090440
9.8 TS.UN.1130.0980h7.30XD.135.IK.HA 10 380 330 W1130098440
10.0 TS.UN.1130.1000h7.30XD.135.IK.HA 10 380 330 W1130100440
10.2 TS.UN.1130.1020h7.30XD.135.IK.HA 12 430 380 W1130102440
10.8 TS.UN.1130.1080h7.30XD.135.IK.HA 12 430 380 W1130108440
11.8 TS.UN.1130.1180h7.30XD.135.IK.HA 12 430 380 W1130118440
12.0 TS.UN.1130.1200h7.30XD.135.IK.HA 12 430 380 W1130120440
For application see page(s) F489-F491.

For pilot hole, please use solid carbide drill type W0108 (see page(s) F385-F392).
