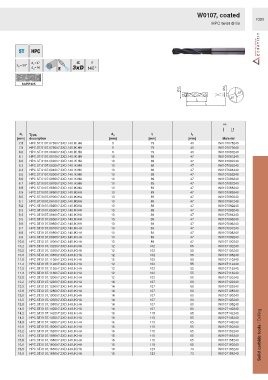

Page 1347 - Ceratizit Catalog

W0107, coated
F350
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HPC.ST.0107.0780h7.3XD.140.IK.HA 8 79 41 W0107078240
7.9 HPC.ST.0107.0790h7.3XD.140.IK.HA 8 79 41 W0107079240
8.0 HPC.ST.0107.0800h7.3XD.140.IK.HA 8 79 41 W0107080240
8.1 HPC.ST.0107.0810h7.3XD.140.IK.HA 10 89 47 W0107081240
8.2 HPC.ST.0107.0820h7.3XD.140.IK.HA 10 89 47 W0107082240
8.3 HPC.ST.0107.0830h7.3XD.140.IK.HA 10 89 47 W0107083240
8.4 HPC.ST.0107.0840h7.3XD.140.IK.HA 10 89 47 W0107084240
8.5 HPC.ST.0107.0850h7.3XD.140.IK.HA 10 89 47 W0107085240
8.6 HPC.ST.0107.0860h7.3XD.140.IK.HA 10 89 47 W0107086240
8.7 HPC.ST.0107.0870h7.3XD.140.IK.HA 10 89 47 W0107087240
8.8 HPC.ST.0107.0880h7.3XD.140.IK.HA 10 89 47 W0107088240
8.9 HPC.ST.0107.0890h7.3XD.140.IK.HA 10 89 47 W0107089240
9.0 HPC.ST.0107.0900h7.3XD.140.IK.HA 10 89 47 W0107090240
9.1 HPC.ST.0107.0910h7.3XD.140.IK.HA 10 89 47 W0107091240
9.2 HPC.ST.0107.0920h7.3XD.140.IK.HA 10 89 47 W0107092240
9.3 HPC.ST.0107.0930h7.3XD.140.IK.HA 10 89 47 W0107093240
9.4 HPC.ST.0107.0940h7.3XD.140.IK.HA 10 89 47 W0107094240
9.5 HPC.ST.0107.0950h7.3XD.140.IK.HA 10 89 47 W0107095240
9.6 HPC.ST.0107.0960h7.3XD.140.IK.HA 10 89 47 W0107096240
9.7 HPC.ST.0107.0970h7.3XD.140.IK.HA 10 89 47 W0107097240
9.8 HPC.ST.0107.0980h7.3XD.140.IK.HA 10 89 47 W0107098240
9.9 HPC.ST.0107.0990h7.3XD.140.IK.HA 10 89 47 W0107099240
10.0 HPC.ST.0107.1000h7.3XD.140.IK.HA 10 89 47 W0107100240
10.2 HPC.ST.0107.1020h7.3XD.140.IK.HA 12 102 55 W0107102240
10.5 HPC.ST.0107.1050h7.3XD.140.IK.HA 12 102 55 W0107105240
10.8 HPC.ST.0107.1080h7.3XD.140.IK.HA 12 102 55 W0107108240
11.0 HPC.ST.0107.1100h7.3XD.140.IK.HA 12 102 55 W0107110240
11.2 HPC.ST.0107.1120h7.3XD.140.IK.HA 12 102 55 W0107112240
11.5 HPC.ST.0107.1150h7.3XD.140.IK.HA 12 102 55 W0107115240
11.8 HPC.ST.0107.1180h7.3XD.140.IK.HA 12 102 55 W0107118240
12.0 HPC.ST.0107.1200h7.3XD.140.IK.HA 12 102 55 W0107120240
12.2 HPC.ST.0107.1220h7.3XD.140.IK.HA 14 107 60 W0107122240
12.5 HPC.ST.0107.1250h7.3XD.140.IK.HA 14 107 60 W0107125240
12.8 HPC.ST.0107.1280h7.3XD.140.IK.HA 14 107 60 W0107128240
13.0 HPC.ST.0107.1300h7.3XD.140.IK.HA 14 107 60 W0107130240
13.5 HPC.ST.0107.1350h7.3XD.140.IK.HA 14 107 60 W0107135240
13.8 HPC.ST.0107.1380h7.3XD.140.IK.HA 14 107 60 W0107138240
14.0 HPC.ST.0107.1400h7.3XD.140.IK.HA 14 107 60 W0107140240
14.2 HPC.ST.0107.1420h7.3XD.140.IK.HA 16 115 65 W0107142240
14.5 HPC.ST.0107.1450h7.3XD.140.IK.HA 16 115 65 W0107145240
14.8 HPC.ST.0107.1480h7.3XD.140.IK.HA 16 115 65 W0107148240
15.0 HPC.ST.0107.1500h7.3XD.140.IK.HA 16 115 65 W0107150240
15.2 HPC.ST.0107.1520h7.3XD.140.IK.HA 16 115 65 W0107152240
15.5 HPC.ST.0107.1550h7.3XD.140.IK.HA 16 115 65 W0107155240 Solid carbide tools / Drilling
15.8 HPC.ST.0107.1580h7.3XD.140.IK.HA 16 115 65 W0107158240
16.0 HPC.ST.0107.1600h7.3XD.140.IK.HA 16 115 65 W0107160240
16.5 HPC.ST.0107.1650h7.3XD.140.IK.HA 18 123 73 W0107165240
16.8 HPC.ST.0107.1680h7.3XD.140.IK.HA 18 123 73 W0107168240
