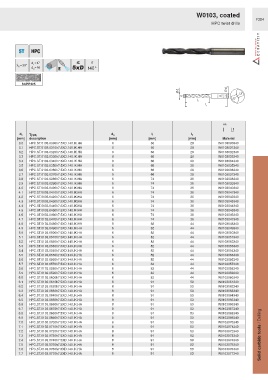

Page 1351 - Ceratizit Catalog

W0103, coated
F354
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.ST.0103.0300h7.5XD.140.IK.HA 6 66 28 W0103030340
3.1 HPC.ST.0103.0310h7.5XD.140.IK.HA 6 66 28 W0103031340
3.2 HPC.ST.0103.0320h7.5XD.140.IK.HA 6 66 28 W0103032340
3.3 HPC.ST.0103.0330h7.5XD.140.IK.HA 6 66 28 W0103033340
3.4 HPC.ST.0103.0340h7.5XD.140.IK.HA 6 66 28 W0103034340
3.5 HPC.ST.0103.0350h7.5XD.140.IK.HA 6 66 28 W0103035340
3.6 HPC.ST.0103.0360h7.5XD.140.IK.HA 6 66 28 W0103036340
3.7 HPC.ST.0103.0370h7.5XD.140.IK.HA 6 66 28 W0103037340
3.8 HPC.ST.0103.0380h7.5XD.140.IK.HA 6 74 36 W0103038340
3.9 HPC.ST.0103.0390h7.5XD.140.IK.HA 6 74 36 W0103039340
4.0 HPC.ST.0103.0400h7.5XD.140.IK.HA 6 74 36 W0103040340
4.1 HPC.ST.0103.0410h7.5XD.140.IK.HA 6 74 36 W0103041340
4.2 HPC.ST.0103.0420h7.5XD.140.IK.HA 6 74 36 W0103042340
4.3 HPC.ST.0103.0430h7.5XD.140.IK.HA 6 74 36 W0103043340
4.4 HPC.ST.0103.0440h7.5XD.140.IK.HA 6 74 36 W0103044340
4.5 HPC.ST.0103.0450h7.5XD.140.IK.HA 6 74 36 W0103045340
4.6 HPC.ST.0103.0460h7.5XD.140.IK.HA 6 74 36 W0103046340
4.7 HPC.ST.0103.0470h7.5XD.140.IK.HA 6 74 36 W0103047340
4.8 HPC.ST.0103.0480h7.5XD.140.IK.HA 6 82 44 W0103048340
4.9 HPC.ST.0103.0490h7.5XD.140.IK.HA 6 82 44 W0103049340
5.0 HPC.ST.0103.0500h7.5XD.140.IK.HA 6 82 44 W0103050340
5.1 HPC.ST.0103.0510h7.5XD.140.IK.HA 6 82 44 W0103051340
5.2 HPC.ST.0103.0520h7.5XD.140.IK.HA 6 82 44 W0103052340
5.3 HPC.ST.0103.0530h7.5XD.140.IK.HA 6 82 44 W0103053340
5.4 HPC.ST.0103.0540h7.5XD.140.IK.HA 6 82 44 W0103054340
5.5 HPC.ST.0103.0550h7.5XD.140.IK.HA 6 82 44 W0103055340
5.6 HPC.ST.0103.0560h7.5XD.140.IK.HA 6 82 44 W0103056340
5.7 HPC.ST.0103.0570h7.5XD.140.IK.HA 6 82 44 W0103057340
5.8 HPC.ST.0103.0580h7.5XD.140.IK.HA 6 82 44 W0103058340
5.9 HPC.ST.0103.0590h7.5XD.140.IK.HA 6 82 44 W0103059340
6.0 HPC.ST.0103.0600h7.5XD.140.IK.HA 6 82 44 W0103060340
6.1 HPC.ST.0103.0610h7.5XD.140.IK.HA 8 91 53 W0103061340
6.2 HPC.ST.0103.0620h7.5XD.140.IK.HA 8 91 53 W0103062340
6.3 HPC.ST.0103.0630h7.5XD.140.IK.HA 8 91 53 W0103063340
6.4 HPC.ST.0103.0640h7.5XD.140.IK.HA 8 91 53 W0103064340
6.5 HPC.ST.0103.0650h7.5XD.140.IK.HA 8 91 53 W0103065340
6.6 HPC.ST.0103.0660h7.5XD.140.IK.HA 8 91 53 W0103066340
6.7 HPC.ST.0103.0670h7.5XD.140.IK.HA 8 91 53 W0103067340
6.8 HPC.ST.0103.0680h7.5XD.140.IK.HA 8 91 53 W0103068340
6.9 HPC.ST.0103.0690h7.5XD.140.IK.HA 8 91 53 W0103069340
7.0 HPC.ST.0103.0700h7.5XD.140.IK.HA 8 91 53 W0103070340
7.1 HPC.ST.0103.0710h7.5XD.140.IK.HA 8 91 53 W0103071340
7.2 HPC.ST.0103.0720h7.5XD.140.IK.HA 8 91 53 W0103072340
7.3 HPC.ST.0103.0730h7.5XD.140.IK.HA 8 91 53 W0103073340 Solid carbide tools / Drilling
7.4 HPC.ST.0103.0740h7.5XD.140.IK.HA 8 91 53 W0103074340
7.5 HPC.ST.0103.0750h7.5XD.140.IK.HA 8 91 53 W0103075340
7.6 HPC.ST.0103.0760h7.5XD.140.IK.HA 8 91 53 W0103076340
7.7 HPC.ST.0103.0770h7.5XD.140.IK.HA 8 91 53 W0103077340
