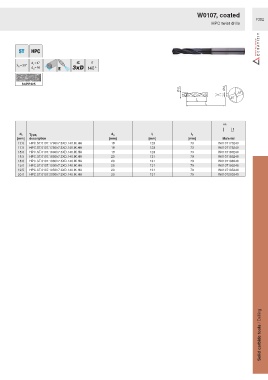

Page 1349 - Ceratizit Catalog

W0107, coated
F352
HPC twist drills

σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
17.0 HPC.ST.0107.1700h7.3XD.140.IK.HA 18 123 73 W0107170240
17.5 HPC.ST.0107.1750h7.3XD.140.IK.HA 18 123 73 W0107175240
18.0 HPC.ST.0107.1800h7.3XD.140.IK.HA 18 123 73 W0107180240
18.5 HPC.ST.0107.1850h7.3XD.140.IK.HA 20 131 79 W0107185240
18.8 HPC.ST.0107.1880h7.3XD.140.IK.HA 20 131 79 W0107188240
19.0 HPC.ST.0107.1900h7.3XD.140.IK.HA 20 131 79 W0107190240
19.5 HPC.ST.0107.1950h7.3XD.140.IK.HA 20 131 79 W0107195240
20.0 HPC.ST.0107.2000h7.3XD.140.IK.HA 20 131 79 W0107200240

Solid carbide tools / Drilling
