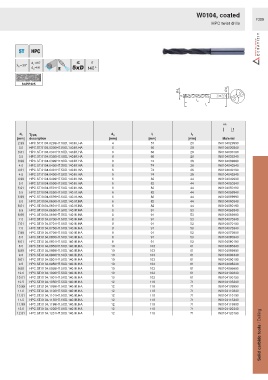

Page 1355 - Ceratizit Catalog

W0104, coated
F358
HPC twist drills

H σ
140°

SCPP425
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
2.99 HPC.ST.0104.0299H7.5XD.140.IK.HA 4 57 21 W0104029990
3.0 HPC.ST.0104.0300H7.5XD.140.IK.HA 6 66 28 W0104030340
3.01 HPC.ST.0104.0301H7.5XD.140.IK.HA 6 66 28 W0104030190
3.5 HPC.ST.0104.0350H7.5XD.140.IK.HA 6 66 28 W0104035340
3.99 HPC.ST.0104.0399H7.5XD.140.IK.HA 6 74 36 W0104039990
4.0 HPC.ST.0104.0400H7.5XD.140.IK.HA 6 74 36 W0104040340
4.01 HPC.ST.0104.0401H7.5XD.140.IK.HA 6 74 36 W0104040190
4.5 HPC.ST.0104.0450H7.5XD.140.IK.HA 6 74 36 W0104045340
4.99 HPC.ST.0104.0499H7.5XD.140.IK.HA 6 82 44 W0104049990
5.0 HPC.ST.0104.0500H7.5XD.140.IK.HA 6 82 44 W0104050340
5.01 HPC.ST.0104.0501H7.5XD.140.IK.HA 6 82 44 W0104050190
5.5 HPC.ST.0104.0550H7.5XD.140.IK.HA 6 82 44 W0104055340
5.99 HPC.ST.0104.0599H7.5XD.140.IK.HA 6 82 44 W0104059990
6.0 HPC.ST.0104.0600H7.5XD.140.IK.HA 6 82 44 W0104060340
6.01 HPC.ST.0104.0601H7.5XD.140.IK.HA 6 82 44 W0104060190
6.5 HPC.ST.0104.0650H7.5XD.140.IK.HA 8 91 53 W0104065340
6.99 HPC.ST.0104.0699H7.5XD.140.IK.HA 8 91 53 W0104069990
7.0 HPC.ST.0104.0700H7.5XD.140.IK.HA 8 91 53 W0104070340
7.01 HPC.ST.0104.0701H7.5XD.140.IK.HA 8 91 53 W0104070190
7.5 HPC.ST.0104.0750H7.5XD.140.IK.HA 8 91 53 W0104075340
7.99 HPC.ST.0104.0799H7.5XD.140.IK.HA 8 91 53 W0104079990
8.0 HPC.ST.0104.0800H7.5XD.140.IK.HA 8 91 53 W0104080340
8.01 HPC.ST.0104.0801H7.5XD.140.IK.HA 8 91 53 W0104080190
8.5 HPC.ST.0104.0850H7.5XD.140.IK.HA 10 103 61 W0104085340
8.99 HPC.ST.0104.0899H7.5XD.140.IK.HA 10 103 61 W0104089990
9.0 HPC.ST.0104.0900H7.5XD.140.IK.HA 10 103 61 W0104090340
9.01 HPC.ST.0104.0901H7.5XD.140.IK.HA 10 103 61 W0104090190
9.5 HPC.ST.0104.0950H7.5XD.140.IK.HA 10 103 61 W0104095340
9.99 HPC.ST.0104.0999H7.5XD.140.IK.HA 10 103 61 W0104099990
10.0 HPC.ST.0104.1000H7.5XD.140.IK.HA 10 103 61 W0104100340
10.01 HPC.ST.0104.1001H7.5XD.140.IK.HA 10 103 61 W0104100190
10.5 HPC.ST.0104.1050H7.5XD.140.IK.HA 12 118 71 W0104105340
10.99 HPC.ST.0104.1099H7.5XD.140.IK.HA 12 118 71 W0104109990
11.0 HPC.ST.0104.1100H7.5XD.140.IK.HA 12 118 71 W0104110340
11.01 HPC.ST.0104.1101H7.5XD.140.IK.HA 12 118 71 W0104110190
11.5 HPC.ST.0104.1150H7.5XD.140.IK.HA 12 118 71 W0104115340
11.99 HPC.ST.0104.1199H7.5XD.140.IK.HA 12 118 71 W0104119990
12.0 HPC.ST.0104.1200H7.5XD.140.IK.HA 12 118 71 W0104120340
Solid carbide tools / Drilling
12.01 HPC.ST.0104.1201H7.5XD.140.IK.HA 12 118 71 W0104120190
