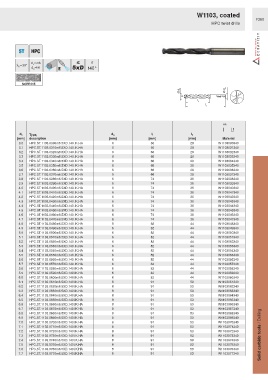

Page 1357 - Ceratizit Catalog

W1103, coated
F360
HPC twist drills

σ
140°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.ST.1103.0300m6.5XD.140.IK.HA 6 66 28 W1103030340
3.1 HPC.ST.1103.0310m6.5XD.140.IK.HA 6 66 28 W1103031340
3.2 HPC.ST.1103.0320m6.5XD.140.IK.HA 6 66 28 W1103032340
3.3 HPC.ST.1103.0330m6.5XD.140.IK.HA 6 66 28 W1103033340
3.4 HPC.ST.1103.0340m6.5XD.140.IK.HA 6 66 28 W1103034340
3.5 HPC.ST.1103.0350m6.5XD.140.IK.HA 6 66 28 W1103035340
3.6 HPC.ST.1103.0360m6.5XD.140.IK.HA 6 66 28 W1103036340
3.7 HPC.ST.1103.0370m6.5XD.140.IK.HA 6 66 28 W1103037340
3.8 HPC.ST.1103.0380m6.5XD.140.IK.HA 6 74 36 W1103038340
3.9 HPC.ST.1103.0390m6.5XD.140.IK.HA 6 74 36 W1103039340
4.0 HPC.ST.1103.0400m6.5XD.140.IK.HA 6 74 36 W1103040340
4.1 HPC.ST.1103.0410m6.5XD.140.IK.HA 6 74 36 W1103041340
4.2 HPC.ST.1103.0420m6.5XD.140.IK.HA 6 74 36 W1103042340
4.3 HPC.ST.1103.0430m6.5XD.140.IK.HA 6 74 36 W1103043340
4.4 HPC.ST.1103.0440m6.5XD.140.IK.HA 6 74 36 W1103044340
4.5 HPC.ST.1103.0450m6.5XD.140.IK.HA 6 74 36 W1103045340
4.6 HPC.ST.1103.0460m6.5XD.140.IK.HA 6 74 36 W1103046340
4.7 HPC.ST.1103.0470m6.5XD.140.IK.HA 6 74 36 W1103047340
4.8 HPC.ST.1103.0480m6.5XD.140.IK.HA 6 82 44 W1103048340
4.9 HPC.ST.1103.0490m6.5XD.140.IK.HA 6 82 44 W1103049340
5.0 HPC.ST.1103.0500m6.5XD.140.IK.HA 6 82 44 W1103050340
5.1 HPC.ST.1103.0510m6.5XD.140.IK.HA 6 82 44 W1103051340
5.2 HPC.ST.1103.0520m6.5XD.140.IK.HA 6 82 44 W1103052340
5.3 HPC.ST.1103.0530m6.5XD.140.IK.HA 6 82 44 W1103053340
5.4 HPC.ST.1103.0540m6.5XD.140.IK.HA 6 82 44 W1103054340
5.5 HPC.ST.1103.0550m6.5XD.140.IK.HA 6 82 44 W1103055340
5.6 HPC.ST.1103.0560m6.5XD.140.IK.HA 6 82 44 W1103056340
5.7 HPC.ST.1103.0570m6.5XD.140.IK.HA 6 82 44 W1103057340
5.8 HPC.ST.1103.0580m6.5XD.140.IK.HA 6 82 44 W1103058340
5.9 HPC.ST.1103.0590m6.5XD.140.IK.HA 6 82 44 W1103059340
6.0 HPC.ST.1103.0600m6.5XD.140.IK.HA 6 82 44 W1103060340
6.1 HPC.ST.1103.0610m6.5XD.140.IK.HA 8 91 53 W1103061340
6.2 HPC.ST.1103.0620m6.5XD.140.IK.HA 8 91 53 W1103062340
6.3 HPC.ST.1103.0630m6.5XD.140.IK.HA 8 91 53 W1103063340
6.4 HPC.ST.1103.0640m6.5XD.140.IK.HA 8 91 53 W1103064340
6.5 HPC.ST.1103.0650m6.5XD.140.IK.HA 8 91 53 W1103065340
6.6 HPC.ST.1103.0660m6.5XD.140.IK.HA 8 91 53 W1103066340
6.7 HPC.ST.1103.0670m6.5XD.140.IK.HA 8 91 53 W1103067340
6.8 HPC.ST.1103.0680m6.5XD.140.IK.HA 8 91 53 W1103068340
6.9 HPC.ST.1103.0690m6.5XD.140.IK.HA 8 91 53 W1103069340
7.0 HPC.ST.1103.0700m6.5XD.140.IK.HA 8 91 53 W1103070340
7.1 HPC.ST.1103.0710m6.5XD.140.IK.HA 8 91 53 W1103071340
7.2 HPC.ST.1103.0720m6.5XD.140.IK.HA 8 91 53 W1103072340
7.3 HPC.ST.1103.0730m6.5XD.140.IK.HA 8 91 53 W1103073340 Solid carbide tools / Drilling
7.4 HPC.ST.1103.0740m6.5XD.140.IK.HA 8 91 53 W1103074340
7.5 HPC.ST.1103.0750m6.5XD.140.IK.HA 8 91 53 W1103075340
7.6 HPC.ST.1103.0760m6.5XD.140.IK.HA 8 91 53 W1103076340
7.7 HPC.ST.1103.0770m6.5XD.140.IK.HA 8 91 53 W1103077340
