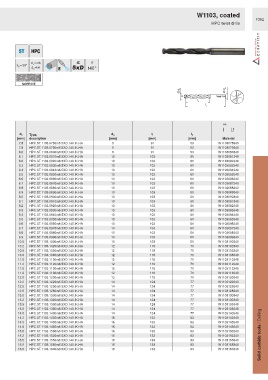

Page 1359 - Ceratizit Catalog

W1103, coated
F362
HPC twist drills

σ
140°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HPC.ST.1103.0780m6.5XD.140.IK.HA 8 91 53 W1103078340
7.9 HPC.ST.1103.0790m6.5XD.140.IK.HA 8 91 53 W1103079340
8.0 HPC.ST.1103.0800m6.5XD.140.IK.HA 8 91 53 W1103080340
8.1 HPC.ST.1103.0810m6.5XD.140.IK.HA 10 103 61 W1103081340
8.2 HPC.ST.1103.0820m6.5XD.140.IK.HA 10 103 61 W1103082340
8.3 HPC.ST.1103.0830m6.5XD.140.IK.HA 10 103 61 W1103083340
8.4 HPC.ST.1103.0840m6.5XD.140.IK.HA 10 103 61 W1103084340
8.5 HPC.ST.1103.0850m6.5XD.140.IK.HA 10 103 61 W1103085340
8.6 HPC.ST.1103.0860m6.5XD.140.IK.HA 10 103 61 W1103086340
8.7 HPC.ST.1103.0870m6.5XD.140.IK.HA 10 103 61 W1103087340
8.8 HPC.ST.1103.0880m6.5XD.140.IK.HA 10 103 61 W1103088340
8.9 HPC.ST.1103.0890m6.5XD.140.IK.HA 10 103 61 W1103089340
9.0 HPC.ST.1103.0900m6.5XD.140.IK.HA 10 103 61 W1103090340
9.1 HPC.ST.1103.0910m6.5XD.140.IK.HA 10 103 61 W1103091340
9.2 HPC.ST.1103.0920m6.5XD.140.IK.HA 10 103 61 W1103092340
9.3 HPC.ST.1103.0930m6.5XD.140.IK.HA 10 103 61 W1103093340
9.4 HPC.ST.1103.0940m6.5XD.140.IK.HA 10 103 61 W1103094340
9.5 HPC.ST.1103.0950m6.5XD.140.IK.HA 10 103 61 W1103095340
9.6 HPC.ST.1103.0960m6.5XD.140.IK.HA 10 103 61 W1103096340
9.7 HPC.ST.1103.0970m6.5XD.140.IK.HA 10 103 61 W1103097340
9.8 HPC.ST.1103.0980m6.5XD.140.IK.HA 10 103 61 W1103098340
9.9 HPC.ST.1103.0990m6.5XD.140.IK.HA 10 103 61 W1103099340
10.0 HPC.ST.1103.1000m6.5XD.140.IK.HA 10 103 61 W1103100340
10.2 HPC.ST.1103.1020m6.5XD.140.IK.HA 12 118 71 W1103102340
10.5 HPC.ST.1103.1050m6.5XD.140.IK.HA 12 118 71 W1103105340
10.8 HPC.ST.1103.1080m6.5XD.140.IK.HA 12 118 71 W1103108340
11.0 HPC.ST.1103.1100m6.5XD.140.IK.HA 12 118 71 W1103110340
11.2 HPC.ST.1103.1120m6.5XD.140.IK.HA 12 118 71 W1103112340
11.5 HPC.ST.1103.1150m6.5XD.140.IK.HA 12 118 71 W1103115340
11.8 HPC.ST.1103.1180m6.5XD.140.IK.HA 12 118 71 W1103118340
12.0 HPC.ST.1103.1200m6.5XD.140.IK.HA 12 118 71 W1103120340
12.2 HPC.ST.1103.1220m6.5XD.140.IK.HA 14 124 77 W1103122340
12.5 HPC.ST.1103.1250m6.5XD.140.IK.HA 14 124 77 W1103125340
12.8 HPC.ST.1103.1280m6.5XD.140.IK.HA 14 124 77 W1103128340
13.0 HPC.ST.1103.1300m6.5XD.140.IK.HA 14 124 77 W1103130340
13.2 HPC.ST.1103.1320m6.5XD.140.IK.HA 14 124 77 W1103132340
13.5 HPC.ST.1103.1350m6.5XD.140.IK.HA 14 124 77 W1103135340
13.8 HPC.ST.1103.1380m6.5XD.140.IK.HA 14 124 77 W1103138340
14.0 HPC.ST.1103.1400m6.5XD.140.IK.HA 14 124 77 W1103140340
14.2 HPC.ST.1103.1420m6.5XD.140.IK.HA 16 133 83 W1103142340
14.5 HPC.ST.1103.1450m6.5XD.140.IK.HA 16 133 83 W1103145340
14.8 HPC.ST.1103.1480m6.5XD.140.IK.HA 16 133 83 W1103148340
15.0 HPC.ST.1103.1500m6.5XD.140.IK.HA 16 133 83 W1103150340
15.2 HPC.ST.1103.1520m6.5XD.140.IK.HA 16 133 83 W1103152340 Solid carbide tools / Drilling
15.5 HPC.ST.1103.1550m6.5XD.140.IK.HA 16 133 83 W1103155340
15.8 HPC.ST.1103.1580m6.5XD.140.IK.HA 16 133 83 W1103158340
16.0 HPC.ST.1103.1600m6.5XD.140.IK.HA 16 133 83 W1103160340
