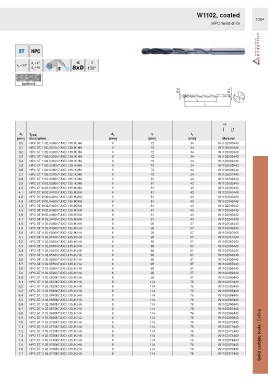

Page 1361 - Ceratizit Catalog

W1102, coated
F364
HPC twist drills

σ
135°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.ST.1102.0300h7.8XD.135.IK.HA 6 72 34 W1102030440
3.1 HPC.ST.1102.0310h7.8XD.135.IK.HA 6 72 34 W1102031440
3.2 HPC.ST.1102.0320h7.8XD.135.IK.HA 6 72 34 W1102032440
3.3 HPC.ST.1102.0330h7.8XD.135.IK.HA 6 72 34 W1102033440
3.4 HPC.ST.1102.0340h7.8XD.135.IK.HA 6 72 34 W1102034440
3.5 HPC.ST.1102.0350h7.8XD.135.IK.HA 6 72 34 W1102035440
3.6 HPC.ST.1102.0360h7.8XD.135.IK.HA 6 72 34 W1102036440
3.7 HPC.ST.1102.0370h7.8XD.135.IK.HA 6 72 34 W1102037440
3.8 HPC.ST.1102.0380h7.8XD.135.IK.HA 6 81 43 W1102038440
3.9 HPC.ST.1102.0390h7.8XD.135.IK.HA 6 81 43 W1102039440
4.0 HPC.ST.1102.0400h7.8XD.135.IK.HA 6 81 43 W1102040440
4.1 HPC.ST.1102.0410h7.8XD.135.IK.HA 6 81 43 W1102041440
4.2 HPC.ST.1102.0420h7.8XD.135.IK.HA 6 81 43 W1102042440
4.3 HPC.ST.1102.0430h7.8XD.135.IK.HA 6 81 43 W1102043440
4.4 HPC.ST.1102.0440h7.8XD.135.IK.HA 6 81 43 W1102044440
4.5 HPC.ST.1102.0450h7.8XD.135.IK.HA 6 81 43 W1102045440
4.6 HPC.ST.1102.0460h7.8XD.135.IK.HA 6 81 43 W1102046440
4.7 HPC.ST.1102.0470h7.8XD.135.IK.HA 6 81 43 W1102047440
4.8 HPC.ST.1102.0480h7.8XD.135.IK.HA 6 95 57 W1102048440
4.9 HPC.ST.1102.0490h7.8XD.135.IK.HA 6 95 57 W1102049440
5.0 HPC.ST.1102.0500h7.8XD.135.IK.HA 6 95 57 W1102050440
5.1 HPC.ST.1102.0510h7.8XD.135.IK.HA 6 95 57 W1102051440
5.2 HPC.ST.1102.0520h7.8XD.135.IK.HA 6 95 57 W1102052440
5.3 HPC.ST.1102.0530h7.8XD.135.IK.HA 6 95 57 W1102053440
5.4 HPC.ST.1102.0540h7.8XD.135.IK.HA 6 95 57 W1102054440
5.5 HPC.ST.1102.0550h7.8XD.135.IK.HA 6 95 57 W1102055440
5.6 HPC.ST.1102.0560h7.8XD.135.IK.HA 6 95 57 W1102056440
5.7 HPC.ST.1102.0570h7.8XD.135.IK.HA 6 95 57 W1102057440
5.8 HPC.ST.1102.0580h7.8XD.135.IK.HA 6 95 57 W1102058440
5.9 HPC.ST.1102.0590h7.8XD.135.IK.HA 6 95 57 W1102059440
6.0 HPC.ST.1102.0600h7.8XD.135.IK.HA 6 95 57 W1102060440
6.1 HPC.ST.1102.0610h7.8XD.135.IK.HA 8 114 76 W1102061440
6.2 HPC.ST.1102.0620h7.8XD.135.IK.HA 8 114 76 W1102062440
6.3 HPC.ST.1102.0630h7.8XD.135.IK.HA 8 114 76 W1102063440
6.4 HPC.ST.1102.0640h7.8XD.135.IK.HA 8 114 76 W1102064440
6.5 HPC.ST.1102.0650h7.8XD.135.IK.HA 8 114 76 W1102065440
6.6 HPC.ST.1102.0660h7.8XD.135.IK.HA 8 114 76 W1102066440
6.7 HPC.ST.1102.0670h7.8XD.135.IK.HA 8 114 76 W1102067440
6.8 HPC.ST.1102.0680h7.8XD.135.IK.HA 8 114 76 W1102068440
6.9 HPC.ST.1102.0690h7.8XD.135.IK.HA 8 114 76 W1102069440
7.0 HPC.ST.1102.0700h7.8XD.135.IK.HA 8 114 76 W1102070440
7.1 HPC.ST.1102.0710h7.8XD.135.IK.HA 8 114 76 W1102071440
7.2 HPC.ST.1102.0720h7.8XD.135.IK.HA 8 114 76 W1102072440
7.3 HPC.ST.1102.0730h7.8XD.135.IK.HA 8 114 76 W1102073440 Solid carbide tools / Drilling
7.4 HPC.ST.1102.0740h7.8XD.135.IK.HA 8 114 76 W1102074440
7.5 HPC.ST.1102.0750h7.8XD.135.IK.HA 8 114 76 W1102075440
7.6 HPC.ST.1102.0760h7.8XD.135.IK.HA 8 114 76 W1102076440
7.7 HPC.ST.1102.0770h7.8XD.135.IK.HA 8 114 76 W1102077440
