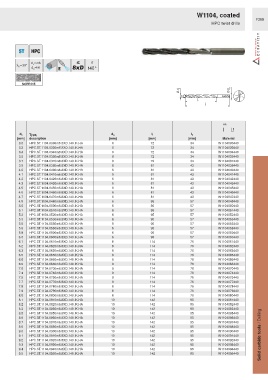

Page 1365 - Ceratizit Catalog

W1104, coated
F368
HPC twist drills

σ
140°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.ST.1104.0300m6.8XD.140.IK.HA 6 72 34 W1104030440
3.3 HPC.ST.1104.0330m6.8XD.140.IK.HA 6 72 34 W1104033440
3.4 HPC.ST.1104.0340m6.8XD.140.IK.HA 6 72 34 W1104034440
3.5 HPC.ST.1104.0350m6.8XD.140.IK.HA 6 72 34 W1104035440
3.7 HPC.ST.1104.0370m6.8XD.140.IK.HA 6 72 34 W1104037440
3.8 HPC.ST.1104.0380m6.8XD.140.IK.HA 6 81 43 W1104038440
4.0 HPC.ST.1104.0400m6.8XD.140.IK.HA 6 81 43 W1104040440
4.1 HPC.ST.1104.0410m6.8XD.140.IK.HA 6 81 43 W1104041440
4.2 HPC.ST.1104.0420m6.8XD.140.IK.HA 6 81 43 W1104042440
4.3 HPC.ST.1104.0430m6.8XD.140.IK.HA 6 81 43 W1104043440
4.5 HPC.ST.1104.0450m6.8XD.140.IK.HA 6 81 43 W1104045440
4.6 HPC.ST.1104.0460m6.8XD.140.IK.HA 6 81 43 W1104046440
4.7 HPC.ST.1104.0470m6.8XD.140.IK.HA 6 81 43 W1104047440
4.8 HPC.ST.1104.0480m6.8XD.140.IK.HA 6 95 57 W1104048440
5.0 HPC.ST.1104.0500m6.8XD.140.IK.HA 6 95 57 W1104050440
5.1 HPC.ST.1104.0510m6.8XD.140.IK.HA 6 95 57 W1104051440
5.2 HPC.ST.1104.0520m6.8XD.140.IK.HA 6 95 57 W1104052440
5.3 HPC.ST.1104.0530m6.8XD.140.IK.HA 6 95 57 W1104053440
5.5 HPC.ST.1104.0550m6.8XD.140.IK.HA 6 95 57 W1104055440
5.8 HPC.ST.1104.0580m6.8XD.140.IK.HA 6 95 57 W1104058440
5.9 HPC.ST.1104.0590m6.8XD.140.IK.HA 6 95 57 W1104059440
6.0 HPC.ST.1104.0600m6.8XD.140.IK.HA 6 95 57 W1104060440
6.1 HPC.ST.1104.0610m6.8XD.140.IK.HA 8 114 76 W1104061440
6.2 HPC.ST.1104.0620m6.8XD.140.IK.HA 8 114 76 W1104062440
6.3 HPC.ST.1104.0630m6.8XD.140.IK.HA 8 114 76 W1104063440
6.5 HPC.ST.1104.0650m6.8XD.140.IK.HA 8 114 76 W1104065440
6.6 HPC.ST.1104.0660m6.8XD.140.IK.HA 8 114 76 W1104066440
6.8 HPC.ST.1104.0680m6.8XD.140.IK.HA 8 114 76 W1104068440
7.0 HPC.ST.1104.0700m6.8XD.140.IK.HA 8 114 76 W1104070440
7.4 HPC.ST.1104.0740m6.8XD.140.IK.HA 8 114 76 W1104074440
7.5 HPC.ST.1104.0750m6.8XD.140.IK.HA 8 114 76 W1104075440
7.7 HPC.ST.1104.0770m6.8XD.140.IK.HA 8 114 76 W1104077440
7.8 HPC.ST.1104.0780m6.8XD.140.IK.HA 8 114 76 W1104078440
7.9 HPC.ST.1104.0790m6.8XD.140.IK.HA 8 114 76 W1104079440
8.0 HPC.ST.1104.0800m6.8XD.140.IK.HA 8 114 76 W1104080440
8.1 HPC.ST.1104.0810m6.8XD.140.IK.HA 10 142 95 W1104081440
8.2 HPC.ST.1104.0820m6.8XD.140.IK.HA 10 142 95 W1104082440
8.3 HPC.ST.1104.0830m6.8XD.140.IK.HA 10 142 95 W1104083440
8.5 HPC.ST.1104.0850m6.8XD.140.IK.HA 10 142 95 W1104085440
8.6 HPC.ST.1104.0860m6.8XD.140.IK.HA 10 142 95 W1104086440
8.7 HPC.ST.1104.0870m6.8XD.140.IK.HA 10 142 95 W1104087440
8.8 HPC.ST.1104.0880m6.8XD.140.IK.HA 10 142 95 W1104088440
9.0 HPC.ST.1104.0900m6.8XD.140.IK.HA 10 142 95 W1104090440
9.1 HPC.ST.1104.0910m6.8XD.140.IK.HA 10 142 95 W1104091440 Solid carbide tools / Drilling
9.2 HPC.ST.1104.0920m6.8XD.140.IK.HA 10 142 95 W1104092440
9.3 HPC.ST.1104.0930m6.8XD.140.IK.HA 10 142 95 W1104093440
9.4 HPC.ST.1104.0940m6.8XD.140.IK.HA 10 142 95 W1104094440
9.5 HPC.ST.1104.0950m6.8XD.140.IK.HA 10 142 95 W1104095440
