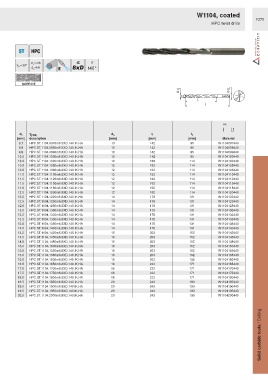

Page 1367 - Ceratizit Catalog

W1104, coated
F370
HPC twist drills

σ
140°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
9.7 HPC.ST.1104.0970m6.8XD.140.IK.HA 10 142 95 W1104097440
9.8 HPC.ST.1104.0980m6.8XD.140.IK.HA 10 142 95 W1104098440
9.9 HPC.ST.1104.0990m6.8XD.140.IK.HA 10 142 95 W1104099440
10.0 HPC.ST.1104.1000m6.8XD.140.IK.HA 10 142 95 W1104100440
10.2 HPC.ST.1104.1020m6.8XD.140.IK.HA 12 162 114 W1104102440
10.5 HPC.ST.1104.1050m6.8XD.140.IK.HA 12 162 114 W1104105440
10.8 HPC.ST.1104.1080m6.8XD.140.IK.HA 12 162 114 W1104108440
11.0 HPC.ST.1104.1100m6.8XD.140.IK.HA 12 162 114 W1104110440
11.2 HPC.ST.1104.1120m6.8XD.140.IK.HA 12 162 114 W1104112440
11.5 HPC.ST.1104.1150m6.8XD.140.IK.HA 12 162 114 W1104115440
11.8 HPC.ST.1104.1180m6.8XD.140.IK.HA 12 162 114 W1104118440
12.0 HPC.ST.1104.1200m6.8XD.140.IK.HA 12 162 114 W1104120440
12.2 HPC.ST.1104.1220m6.8XD.140.IK.HA 14 178 131 W1104122440
12.5 HPC.ST.1104.1250m6.8XD.140.IK.HA 14 178 131 W1104125440
12.8 HPC.ST.1104.1280m6.8XD.140.IK.HA 14 178 131 W1104128440
13.0 HPC.ST.1104.1300m6.8XD.140.IK.HA 14 178 131 W1104130440
13.2 HPC.ST.1104.1320m6.8XD.140.IK.HA 14 178 131 W1104132440
13.5 HPC.ST.1104.1350m6.8XD.140.IK.HA 14 178 131 W1104135440
13.8 HPC.ST.1104.1380m6.8XD.140.IK.HA 14 178 131 W1104138440
14.0 HPC.ST.1104.1400m6.8XD.140.IK.HA 14 178 131 W1104140440
14.2 HPC.ST.1104.1420m6.8XD.140.IK.HA 16 203 152 W1104142440
14.5 HPC.ST.1104.1450m6.8XD.140.IK.HA 16 203 152 W1104145440
14.8 HPC.ST.1104.1480m6.8XD.140.IK.HA 16 203 152 W1104148440
15.0 HPC.ST.1104.1500m6.8XD.140.IK.HA 16 203 152 W1104150440
15.5 HPC.ST.1104.1550m6.8XD.140.IK.HA 16 203 152 W1104155440
15.8 HPC.ST.1104.1580m6.8XD.140.IK.HA 16 203 152 W1104158440
16.0 HPC.ST.1104.1600m6.8XD.140.IK.HA 16 203 152 W1104160440
16.5 HPC.ST.1104.1650m6.8XD.140.IK.HA 18 222 171 W1104165440
17.0 HPC.ST.1104.1700m6.8XD.140.IK.HA 18 222 171 W1104170440
17.5 HPC.ST.1104.1750m6.8XD.140.IK.HA 18 222 171 W1104175440
18.0 HPC.ST.1104.1800m6.8XD.140.IK.HA 18 222 171 W1104180440
18.5 HPC.ST.1104.1850m6.8XD.140.IK.HA 20 243 190 W1104185440
19.0 HPC.ST.1104.1900m6.8XD.140.IK.HA 20 243 190 W1104190440
19.5 HPC.ST.1104.1950m6.8XD.140.IK.HA 20 243 190 W1104195440
20.0 HPC.ST.1104.2000m6.8XD.140.IK.HA 20 243 190 W1104200440

Solid carbide tools / Drilling
