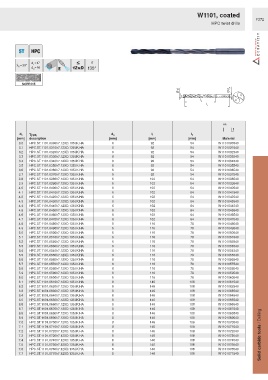

Page 1369 - Ceratizit Catalog

W1101, coated
F372
HPC twist drills

σ
135°

SCPP415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HPC.ST.1101.0300h7.12XD.135.IK.HA 6 92 54 W1101030540
3.1 HPC.ST.1101.0310h7.12XD.135.IK.HA 6 92 54 W1101031540
3.2 HPC.ST.1101.0320h7.12XD.135.IK.HA 6 92 54 W1101032540
3.3 HPC.ST.1101.0330h7.12XD.135.IK.HA 6 92 54 W1101033540
3.4 HPC.ST.1101.0340h7.12XD.135.IK.HA 6 92 54 W1101034540
3.5 HPC.ST.1101.0350h7.12XD.135.IK.HA 6 92 54 W1101035540
3.6 HPC.ST.1101.0360h7.12XD.135.IK.HA 6 92 54 W1101036540
3.7 HPC.ST.1101.0370h7.12XD.135.IK.HA 6 92 54 W1101037540
3.8 HPC.ST.1101.0380h7.12XD.135.IK.HA 6 102 64 W1101038540
3.9 HPC.ST.1101.0390h7.12XD.135.IK.HA 6 102 64 W1101039540
4.0 HPC.ST.1101.0400h7.12XD.135.IK.HA 6 102 64 W1101040540
4.1 HPC.ST.1101.0410h7.12XD.135.IK.HA 6 102 64 W1101041540
4.2 HPC.ST.1101.0420h7.12XD.135.IK.HA 6 102 64 W1101042540
4.3 HPC.ST.1101.0430h7.12XD.135.IK.HA 6 102 64 W1101043540
4.4 HPC.ST.1101.0440h7.12XD.135.IK.HA 6 102 64 W1101044540
4.5 HPC.ST.1101.0450h7.12XD.135.IK.HA 6 102 64 W1101045540
4.6 HPC.ST.1101.0460h7.12XD.135.IK.HA 6 102 64 W1101046540
4.7 HPC.ST.1101.0470h7.12XD.135.IK.HA 6 102 64 W1101047540
4.8 HPC.ST.1101.0480h7.12XD.135.IK.HA 6 116 78 W1101048540
4.9 HPC.ST.1101.0490h7.12XD.135.IK.HA 6 116 78 W1101049540
5.0 HPC.ST.1101.0500h7.12XD.135.IK.HA 6 116 78 W1101050540
5.1 HPC.ST.1101.0510h7.12XD.135.IK.HA 6 116 78 W1101051540
5.2 HPC.ST.1101.0520h7.12XD.135.IK.HA 6 116 78 W1101052540
5.3 HPC.ST.1101.0530h7.12XD.135.IK.HA 6 116 78 W1101053540
5.4 HPC.ST.1101.0540h7.12XD.135.IK.HA 6 116 78 W1101054540
5.5 HPC.ST.1101.0550h7.12XD.135.IK.HA 6 116 78 W1101055540
5.6 HPC.ST.1101.0560h7.12XD.135.IK.HA 6 116 78 W1101056540
5.7 HPC.ST.1101.0570h7.12XD.135.IK.HA 6 116 78 W1101057540
5.8 HPC.ST.1101.0580h7.12XD.135.IK.HA 6 116 78 W1101058540
5.9 HPC.ST.1101.0590h7.12XD.135.IK.HA 6 116 78 W1101059540
6.0 HPC.ST.1101.0600h7.12XD.135.IK.HA 6 116 78 W1101060540
6.1 HPC.ST.1101.0610h7.12XD.135.IK.HA 8 146 108 W1101061540
6.2 HPC.ST.1101.0620h7.12XD.135.IK.HA 8 146 108 W1101062540
6.3 HPC.ST.1101.0630h7.12XD.135.IK.HA 8 146 108 W1101063540
6.4 HPC.ST.1101.0640h7.12XD.135.IK.HA 8 146 108 W1101064540
6.5 HPC.ST.1101.0650h7.12XD.135.IK.HA 8 146 108 W1101065540
6.6 HPC.ST.1101.0660h7.12XD.135.IK.HA 8 146 108 W1101066540
6.7 HPC.ST.1101.0670h7.12XD.135.IK.HA 8 146 108 W1101067540
6.8 HPC.ST.1101.0680h7.12XD.135.IK.HA 8 146 108 W1101068540
6.9 HPC.ST.1101.0690h7.12XD.135.IK.HA 8 146 108 W1101069540
7.0 HPC.ST.1101.0700h7.12XD.135.IK.HA 8 146 108 W1101070540
7.1 HPC.ST.1101.0710h7.12XD.135.IK.HA 8 146 108 W1101071540
7.2 HPC.ST.1101.0720h7.12XD.135.IK.HA 8 146 108 W1101072540
7.3 HPC.ST.1101.0730h7.12XD.135.IK.HA 8 146 108 W1101073540 Solid carbide tools / Drilling
7.4 HPC.ST.1101.0740h7.12XD.135.IK.HA 8 146 108 W1101074540
7.5 HPC.ST.1101.0750h7.12XD.135.IK.HA 8 146 108 W1101075540
7.6 HPC.ST.1101.0760h7.12XD.135.IK.HA 8 146 108 W1101076540
7.7 HPC.ST.1101.0770h7.12XD.135.IK.HA 8 146 108 W1101077540
