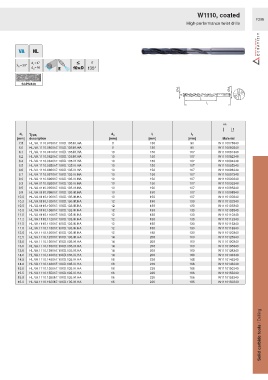

Page 1393 - Ceratizit Catalog

W1110, coated
F396
High-performance twist drills

σ
135°

SCPM430
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HL.VA.1110.0780h7.10XD.135.IK.HA 8 130 91 W1110078340
8.0 HL.VA.1110.0800h7.10XD.135.IK.HA 8 130 91 W1110080340
8.1 HL.VA.1110.0810h7.10XD.135.IK.HA 10 150 107 W1110081340
8.2 HL.VA.1110.0820h7.10XD.135.IK.HA 10 150 107 W1110082340
8.4 HL.VA.1110.0840h7.10XD.135.IK.HA 10 150 107 W1110084340
8.5 HL.VA.1110.0850h7.10XD.135.IK.HA 10 150 107 W1110085340
8.6 HL.VA.1110.0860h7.10XD.135.IK.HA 10 150 107 W1110086340
8.7 HL.VA.1110.0870h7.10XD.135.IK.HA 10 150 107 W1110087340
9.0 HL.VA.1110.0900h7.10XD.135.IK.HA 10 150 107 W1110090340
9.3 HL.VA.1110.0930h7.10XD.135.IK.HA 10 150 107 W1110093340
9.5 HL.VA.1110.0950h7.10XD.135.IK.HA 10 150 107 W1110095340
9.8 HL.VA.1110.0980h7.10XD.135.IK.HA 10 150 107 W1110098340
10.0 HL.VA.1110.1000h7.10XD.135.IK.HA 10 150 107 W1110100340
10.2 HL.VA.1110.1020h7.10XD.135.IK.HA 12 180 130 W1110102340
10.5 HL.VA.1110.1050h7.10XD.135.IK.HA 12 180 130 W1110105340
10.8 HL.VA.1110.1080h7.10XD.135.IK.HA 12 180 130 W1110108340
11.0 HL.VA.1110.1100h7.10XD.135.IK.HA 12 180 130 W1110110340
11.2 HL.VA.1110.1120h7.10XD.135.IK.HA 12 180 130 W1110112340
11.5 HL.VA.1110.1150h7.10XD.135.IK.HA 12 180 130 W1110115340
11.8 HL.VA.1110.1180h7.10XD.135.IK.HA 12 180 130 W1110118340
12.0 HL.VA.1110.1200h7.10XD.135.IK.HA 12 180 130 W1110120340
12.5 HL.VA.1110.1250h7.10XD.135.IK.HA 14 208 160 W1110125340
13.0 HL.VA.1110.1300h7.10XD.135.IK.HA 14 208 160 W1110130340
13.5 HL.VA.1110.1350h7.10XD.135.IK.HA 14 208 160 W1110135340
13.8 HL.VA.1110.1380h7.10XD.135.IK.HA 14 208 160 W1110138340
14.0 HL.VA.1110.1400h7.10XD.135.IK.HA 14 208 160 W1110140340
14.5 HL.VA.1110.1450h7.10XD.135.IK.HA 16 236 186 W1110145340
14.8 HL.VA.1110.1480h7.10XD.135.IK.HA 16 236 186 W1110148340
15.0 HL.VA.1110.1500h7.10XD.135.IK.HA 16 236 186 W1110150340
15.5 HL.VA.1110.1550h7.10XD.135.IK.HA 16 236 186 W1110155340
15.8 HL.VA.1110.1580h7.10XD.135.IK.HA 16 236 186 W1110158340
16.0 HL.VA.1110.1600h7.10XD.135.IK.HA 16 236 186 W1110160340

Solid carbide tools / Drilling
