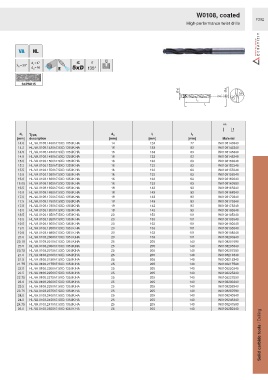

Page 1389 - Ceratizit Catalog

W0108, coated
F392
High-performance twist drills

σ
135°

SCPM415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
14.0 HL.VA.0108.1400h7.5XD.135.IK.HA 14 124 77 W0108140340
14.2 HL.VA.0108.1420h7.5XD.135.IK.HA 16 133 83 W0108142340
14.5 HL.VA.0108.1450h7.5XD.135.IK.HA 16 133 83 W0108145340
14.8 HL.VA.0108.1480h7.5XD.135.IK.HA 16 133 83 W0108148340
15.0 HL.VA.0108.1500h7.5XD.135.IK.HA 16 133 83 W0108150340
15.2 HL.VA.0108.1520h7.5XD.135.IK.HA 16 133 83 W0108152340
15.5 HL.VA.0108.1550h7.5XD.135.IK.HA 16 133 83 W0108155340
15.8 HL.VA.0108.1580h7.5XD.135.IK.HA 16 133 83 W0108158340
16.0 HL.VA.0108.1600h7.5XD.135.IK.HA 16 133 83 W0108160340
16.05 HL.VA.0108.1605h7.5XD.135.IK.HA 16 133 83 W0108160590
16.5 HL.VA.0108.1650h7.5XD.135.IK.HA 18 143 93 W0108165340
16.8 HL.VA.0108.1680h7.5XD.135.IK.HA 18 143 93 W0108168340
17.0 HL.VA.0108.1700h7.5XD.135.IK.HA 18 143 93 W0108170340
17.5 HL.VA.0108.1750h7.5XD.135.IK.HA 18 143 93 W0108175340
17.8 HL.VA.0108.1780h7.5XD.135.IK.HA 18 143 93 W0108178340
18.0 HL.VA.0108.1800h7.5XD.135.IK.HA 18 143 93 W0108180340
18.5 HL.VA.0108.1850h7.5XD.135.IK.HA 20 153 101 W0108185340
18.8 HL.VA.0108.1880h7.5XD.135.IK.HA 20 153 101 W0108188340
19.0 HL.VA.0108.1900h7.5XD.135.IK.HA 20 153 101 W0108190340
19.5 HL.VA.0108.1950h7.5XD.135.IK.HA 20 153 101 W0108195340
19.8 HL.VA.0108.1980h7.5XD.135.IK.HA 20 153 101 W0108198340
20.0 HL.VA.0108.2000h7.5XD.135.IK.HA 20 153 101 W0108200340
20.15 HL.VA.0108.2015h7.5XD.135.IK.HA 25 205 140 W0108201590
20.5 HL.VA.0108.2050h7.5XD.135.IK.HA 25 205 140 W0108205340
20.75 HL.VA.0108.2075h7.5XD.135.IK.HA 25 205 140 W0108207590
21.0 HL.VA.0108.2100h7.5XD.135.IK.HA 25 205 140 W0108210340
21.5 HL.VA.0108.2150h7.5XD.135.IK.HA 25 205 140 W0108215340
21.75 HL.VA.0108.2175h7.5XD.135.IK.HA 25 205 140 W0108217590
22.0 HL.VA.0108.2200h7.5XD.135.IK.HA 25 205 140 W0108220340
22.5 HL.VA.0108.2250h7.5XD.135.IK.HA 25 205 140 W0108225340
22.75 HL.VA.0108.2275h7.5XD.135.IK.HA 25 205 140 W0108227590
23.0 HL.VA.0108.2300h7.5XD.135.IK.HA 25 205 140 W0108230340
23.5 HL.VA.0108.2350h7.5XD.135.IK.HA 25 205 140 W0108235340
23.75 HL.VA.0108.2375h7.5XD.135.IK.HA 25 205 140 W0108237590
24.0 HL.VA.0108.2400h7.5XD.135.IK.HA 25 205 140 W0108240340
24.5 HL.VA.0108.2450h7.5XD.135.IK.HA 25 205 140 W0108245340
24.75 HL.VA.0108.2475h7.5XD.135.IK.HA 25 205 140 W0108247590
25.0 HL.VA.0108.2500h7.5XD.135.IK.HA 25 205 140 W0108250340
Solid carbide tools / Drilling
