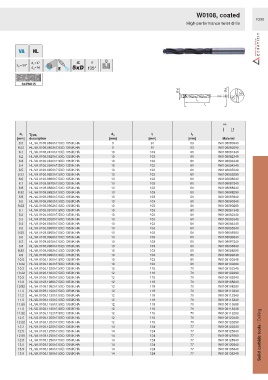

Page 1387 - Ceratizit Catalog

W0108, coated
F390
High-performance twist drills

σ
135°

SCPM415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
8.0 HL.VA.0108.0800h7.5XD.135.IK.HA 8 91 53 W0108080340
8.02 HL.VA.0108.0802h7.5XD.135.IK.HA 8 91 53 W0108080290
8.1 HL.VA.0108.0810h7.5XD.135.IK.HA 10 103 61 W0108081340
8.2 HL.VA.0108.0820h7.5XD.135.IK.HA 10 103 61 W0108082340
8.3 HL.VA.0108.0830h7.5XD.135.IK.HA 10 103 61 W0108083340
8.4 HL.VA.0108.0840h7.5XD.135.IK.HA 10 103 61 W0108084340
8.5 HL.VA.0108.0850h7.5XD.135.IK.HA 10 103 61 W0108085340
8.52 HL.VA.0108.0852h7.5XD.135.IK.HA 10 103 61 W0108085290
8.6 HL.VA.0108.0860h7.5XD.135.IK.HA 10 103 61 W0108086340
8.7 HL.VA.0108.0870h7.5XD.135.IK.HA 10 103 61 W0108087340
8.8 HL.VA.0108.0880h7.5XD.135.IK.HA 10 103 61 W0108088340
8.82 HL.VA.0108.0882h7.5XD.135.IK.HA 10 103 61 W0108088290
8.9 HL.VA.0108.0890h7.5XD.135.IK.HA 10 103 61 W0108089340
9.0 HL.VA.0108.0900h7.5XD.135.IK.HA 10 103 61 W0108090340
9.02 HL.VA.0108.0902h7.5XD.135.IK.HA 10 103 61 W0108090290
9.1 HL.VA.0108.0910h7.5XD.135.IK.HA 10 103 61 W0108091340
9.2 HL.VA.0108.0920h7.5XD.135.IK.HA 10 103 61 W0108092340
9.3 HL.VA.0108.0930h7.5XD.135.IK.HA 10 103 61 W0108093340
9.4 HL.VA.0108.0940h7.5XD.135.IK.HA 10 103 61 W0108094340
9.5 HL.VA.0108.0950h7.5XD.135.IK.HA 10 103 61 W0108095340
9.55 HL.VA.0108.0955h7.5XD.135.IK.HA 10 103 61 W0108095590
9.6 HL.VA.0108.0960h7.5XD.135.IK.HA 10 103 61 W0108096340
9.7 HL.VA.0108.0970h7.5XD.135.IK.HA 10 103 61 W0108097340
9.8 HL.VA.0108.0980h7.5XD.135.IK.HA 10 103 61 W0108098340
9.82 HL.VA.0108.0982h7.5XD.135.IK.HA 10 103 61 W0108098290
9.9 HL.VA.0108.0990h7.5XD.135.IK.HA 10 103 61 W0108099340
10.0 HL.VA.0108.1000h7.5XD.135.IK.HA 10 103 61 W0108100340
10.02 HL.VA.0108.1002h7.5XD.135.IK.HA 10 103 61 W0108100290
10.2 HL.VA.0108.1020h7.5XD.135.IK.HA 12 118 71 W0108102340
10.22 HL.VA.0108.1022h7.5XD.135.IK.HA 12 118 71 W0108102290
10.5 HL.VA.0108.1050h7.5XD.135.IK.HA 12 118 71 W0108105340
10.8 HL.VA.0108.1080h7.5XD.135.IK.HA 12 118 71 W0108108340
10.82 HL.VA.0108.1082h7.5XD.135.IK.HA 12 118 71 W0108108290
11.0 HL.VA.0108.1100h7.5XD.135.IK.HA 12 118 71 W0108110340
11.2 HL.VA.0108.1120h7.5XD.135.IK.HA 12 118 71 W0108112340
11.5 HL.VA.0108.1150h7.5XD.135.IK.HA 12 118 71 W0108115340
11.55 HL.VA.0108.1155h7.5XD.135.IK.HA 12 118 71 W0108115590
11.8 HL.VA.0108.1180h7.5XD.135.IK.HA 12 118 71 W0108118340
11.82 HL.VA.0108.1182h7.5XD.135.IK.HA 12 118 71 W0108118290
12.0 HL.VA.0108.1200h7.5XD.135.IK.HA 12 118 71 W0108120340
12.02 HL.VA.0108.1202h7.5XD.135.IK.HA 12 118 71 W0108120290
12.2 HL.VA.0108.1220h7.5XD.135.IK.HA 14 124 77 W0108122340
12.5 HL.VA.0108.1250h7.5XD.135.IK.HA 14 124 77 W0108125340
12.55 HL.VA.0108.1255h7.5XD.135.IK.HA 14 124 77 W0108125590 Solid carbide tools / Drilling
12.8 HL.VA.0108.1280h7.5XD.135.IK.HA 14 124 77 W0108128340
13.0 HL.VA.0108.1300h7.5XD.135.IK.HA 14 124 77 W0108130340
13.5 HL.VA.0108.1350h7.5XD.135.IK.HA 14 124 77 W0108135340
13.8 HL.VA.0108.1380h7.5XD.135.IK.HA 14 124 77 W0108138340
