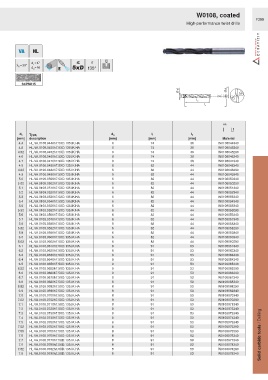

Page 1385 - Ceratizit Catalog

W0108, coated
F388
High-performance twist drills

σ
135°

SCPM415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
4.4 HL.VA.0108.0440h7.5XD.135.IK.HA 6 74 36 W0108044340
4.5 HL.VA.0108.0450h7.5XD.135.IK.HA 6 74 36 W0108045340
4.52 HL.VA.0108.0452h7.5XD.135.IK.HA 6 74 36 W0108045290
4.6 HL.VA.0108.0460h7.5XD.135.IK.HA 6 74 36 W0108046340
4.7 HL.VA.0108.0470h7.5XD.135.IK.HA 6 74 36 W0108047340
4.8 HL.VA.0108.0480h7.5XD.135.IK.HA 6 82 44 W0108048340
4.82 HL.VA.0108.0482h7.5XD.135.IK.HA 6 82 44 W0108048290
4.9 HL.VA.0108.0490h7.5XD.135.IK.HA 6 82 44 W0108049340
5.0 HL.VA.0108.0500h7.5XD.135.IK.HA 6 82 44 W0108050340
5.02 HL.VA.0108.0502h7.5XD.135.IK.HA 6 82 44 W0108050290
5.1 HL.VA.0108.0510h7.5XD.135.IK.HA 6 82 44 W0108051340
5.2 HL.VA.0108.0520h7.5XD.135.IK.HA 6 82 44 W0108052340
5.3 HL.VA.0108.0530h7.5XD.135.IK.HA 6 82 44 W0108053340
5.4 HL.VA.0108.0540h7.5XD.135.IK.HA 6 82 44 W0108054340
5.5 HL.VA.0108.0550h7.5XD.135.IK.HA 6 82 44 W0108055340
5.52 HL.VA.0108.0552h7.5XD.135.IK.HA 6 82 44 W0108055290
5.6 HL.VA.0108.0560h7.5XD.135.IK.HA 6 82 44 W0108056340
5.7 HL.VA.0108.0570h7.5XD.135.IK.HA 6 82 44 W0108057340
5.8 HL.VA.0108.0580h7.5XD.135.IK.HA 6 82 44 W0108058340
5.82 HL.VA.0108.0582h7.5XD.135.IK.HA 6 82 44 W0108058290
5.9 HL.VA.0108.0590h7.5XD.135.IK.HA 6 82 44 W0108059340
6.0 HL.VA.0108.0600h7.5XD.135.IK.HA 6 82 44 W0108060340
6.02 HL.VA.0108.0602h7.5XD.135.IK.HA 6 82 44 W0108060290
6.1 HL.VA.0108.0610h7.5XD.135.IK.HA 8 91 53 W0108061340
6.2 HL.VA.0108.0620h7.5XD.135.IK.HA 8 91 53 W0108062340
6.3 HL.VA.0108.0630h7.5XD.135.IK.HA 8 91 53 W0108063340
6.4 HL.VA.0108.0640h7.5XD.135.IK.HA 8 91 53 W0108064340
6.5 HL.VA.0108.0650h7.5XD.135.IK.HA 8 91 53 W0108065340
6.52 HL.VA.0108.0652h7.5XD.135.IK.HA 8 91 53 W0108065290
6.6 HL.VA.0108.0660h7.5XD.135.IK.HA 8 91 53 W0108066340
6.7 HL.VA.0108.0670h7.5XD.135.IK.HA 8 91 53 W0108067340
6.8 HL.VA.0108.0680h7.5XD.135.IK.HA 8 91 53 W0108068340
6.82 HL.VA.0108.0682h7.5XD.135.IK.HA 8 91 53 W0108068290
6.9 HL.VA.0108.0690h7.5XD.135.IK.HA 8 91 53 W0108069340
7.0 HL.VA.0108.0700h7.5XD.135.IK.HA 8 91 53 W0108070340
7.02 HL.VA.0108.0702h7.5XD.135.IK.HA 8 91 53 W0108070290
7.1 HL.VA.0108.0710h7.5XD.135.IK.HA 8 91 53 W0108071340
7.2 HL.VA.0108.0720h7.5XD.135.IK.HA 8 91 53 W0108072340
7.3 HL.VA.0108.0730h7.5XD.135.IK.HA 8 91 53 W0108073340
7.4 HL.VA.0108.0740h7.5XD.135.IK.HA 8 91 53 W0108074340
7.5 HL.VA.0108.0750h7.5XD.135.IK.HA 8 91 53 W0108075340
7.52 HL.VA.0108.0752h7.5XD.135.IK.HA 8 91 53 W0108075290
7.55 HL.VA.0108.0755h7.5XD.135.IK.HA 8 91 53 W0108075590
7.6 HL.VA.0108.0760h7.5XD.135.IK.HA 8 91 53 W0108076340 Solid carbide tools / Drilling
7.7 HL.VA.0108.0770h7.5XD.135.IK.HA 8 91 53 W0108077340
7.8 HL.VA.0108.0780h7.5XD.135.IK.HA 8 91 53 W0108078340
7.82 HL.VA.0108.0782h7.5XD.135.IK.HA 8 91 53 W0108078290
7.9 HL.VA.0108.0790h7.5XD.135.IK.HA 8 91 53 W0108079340
