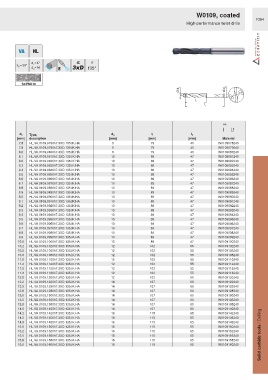

Page 1381 - Ceratizit Catalog

W0109, coated
F384
High-performance twist drills

σ
135°

SCPM410
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
7.8 HL.VA.0109.0780h7.3XD.135.IK.HA 8 79 41 W0109078240
7.9 HL.VA.0109.0790h7.3XD.135.IK.HA 8 79 41 W0109079240
8.0 HL.VA.0109.0800h7.3XD.135.IK.HA 8 79 41 W0109080240
8.1 HL.VA.0109.0810h7.3XD.135.IK.HA 10 89 47 W0109081240
8.2 HL.VA.0109.0820h7.3XD.135.IK.HA 10 89 47 W0109082240
8.3 HL.VA.0109.0830h7.3XD.135.IK.HA 10 89 47 W0109083240
8.4 HL.VA.0109.0840h7.3XD.135.IK.HA 10 89 47 W0109084240
8.5 HL.VA.0109.0850h7.3XD.135.IK.HA 10 89 47 W0109085240
8.6 HL.VA.0109.0860h7.3XD.135.IK.HA 10 89 47 W0109086240
8.7 HL.VA.0109.0870h7.3XD.135.IK.HA 10 89 47 W0109087240
8.8 HL.VA.0109.0880h7.3XD.135.IK.HA 10 89 47 W0109088240
8.9 HL.VA.0109.0890h7.3XD.135.IK.HA 10 89 47 W0109089240
9.0 HL.VA.0109.0900h7.3XD.135.IK.HA 10 89 47 W0109090240
9.1 HL.VA.0109.0910h7.3XD.135.IK.HA 10 89 47 W0109091240
9.2 HL.VA.0109.0920h7.3XD.135.IK.HA 10 89 47 W0109092240
9.3 HL.VA.0109.0930h7.3XD.135.IK.HA 10 89 47 W0109093240
9.4 HL.VA.0109.0940h7.3XD.135.IK.HA 10 89 47 W0109094240
9.5 HL.VA.0109.0950h7.3XD.135.IK.HA 10 89 47 W0109095240
9.6 HL.VA.0109.0960h7.3XD.135.IK.HA 10 89 47 W0109096240
9.7 HL.VA.0109.0970h7.3XD.135.IK.HA 10 89 47 W0109097240
9.8 HL.VA.0109.0980h7.3XD.135.IK.HA 10 89 47 W0109098240
9.9 HL.VA.0109.0990h7.3XD.135.IK.HA 10 89 47 W0109099240
10.0 HL.VA.0109.1000h7.3XD.135.IK.HA 10 89 47 W0109100240
10.2 HL.VA.0109.1020h7.3XD.135.IK.HA 12 102 55 W0109102240
10.5 HL.VA.0109.1050h7.3XD.135.IK.HA 12 102 55 W0109105240
10.8 HL.VA.0109.1080h7.3XD.135.IK.HA 12 102 55 W0109108240
11.0 HL.VA.0109.1100h7.3XD.135.IK.HA 12 102 55 W0109110240
11.2 HL.VA.0109.1120h7.3XD.135.IK.HA 12 102 55 W0109112240
11.5 HL.VA.0109.1150h7.3XD.135.IK.HA 12 102 55 W0109115240
11.8 HL.VA.0109.1180h7.3XD.135.IK.HA 12 102 55 W0109118240
12.0 HL.VA.0109.1200h7.3XD.135.IK.HA 12 102 55 W0109120240
12.2 HL.VA.0109.1220h7.3XD.135.IK.HA 14 107 60 W0109122240
12.5 HL.VA.0109.1250h7.3XD.135.IK.HA 14 107 60 W0109125240
12.8 HL.VA.0109.1280h7.3XD.135.IK.HA 14 107 60 W0109128240
13.0 HL.VA.0109.1300h7.3XD.135.IK.HA 14 107 60 W0109130240
13.5 HL.VA.0109.1350h7.3XD.135.IK.HA 14 107 60 W0109135240
13.8 HL.VA.0109.1380h7.3XD.135.IK.HA 14 107 60 W0109138240
14.0 HL.VA.0109.1400h7.3XD.135.IK.HA 14 107 60 W0109140240
Solid carbide tools / Drilling
14.2 HL.VA.0109.1420h7.3XD.135.IK.HA 16 115 65 W0109142240
14.5 HL.VA.0109.1450h7.3XD.135.IK.HA 16 115 65 W0109145240
14.8 HL.VA.0109.1480h7.3XD.135.IK.HA 16 115 65 W0109148240
15.0 HL.VA.0109.1500h7.3XD.135.IK.HA 16 115 65 W0109150240
15.2 HL.VA.0109.1520h7.3XD.135.IK.HA 16 115 65 W0109152240
15.5 HL.VA.0109.1550h7.3XD.135.IK.HA 16 115 65 W0109155240
15.8 HL.VA.0109.1580h7.3XD.135.IK.HA 16 115 65 W0109158240
16.0 HL.VA.0109.1600h7.3XD.135.IK.HA 16 115 65 W0109160240
