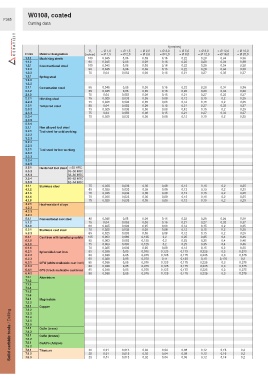

P. 1382

W0108, coated
   F385
             Cutting data





                                                                            f [mm/rev]
                                              = Ø 1,0   > Ø 1,5   > Ø 2,0   > Ø 3,0   > Ø 5,0   > Ø 8,0   > Ø 12,0   > Ø 16,0
                                        V c
            Index  Material designation  [m/min]  = Ø 1,5  = Ø 2,0  = Ø 3,0  = Ø 5,0  = Ø 8,0  = Ø 12,0  = Ø 16,0  = Ø 20,0
            1.1.1  Machining steels     100   0,045     0,06    0,09     0,16     0,22    0,28     0,34     0,38
            1.1.2                       90    0,045     0,06    0,09     0,16     0,22    0,28     0,34     0,38
            1.2.1  Constructional steel  100  0,045     0,06    0,09     0,16     0,22    0,28     0,34     0,38
            1.2.2                       90    0,045     0,06    0,09     0,16     0,22    0,28     0,34     0,38
            1.2.3                       75     0,04    0,053    0,08     0,15     0,21    0,27     0,32     0,37
            1.3.1  Spring steel
            1.3.2
            1.3.3
            2.1.1  Cementation steel    95     0,045    0,06    0,09     0,16     0,22    0,28     0,34     0,38
            2.1.2                       85     0,045    0,06    0,09     0,16     0,22    0,28     0,34     0,38
            2.1.3                       75     0,04    0,053    0,08     0,15     0,21    0,27     0,32     0,37
            2.2.1  Nitriding steel      75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            2.2.2                       75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            2.3.1  Tempered steel       85     0,04    0,053    0,08     0,15     0,21    0,27     0,32     0,37
            2.3.2                       75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            2.3.3                       75     0,04    0,053    0,08     0,15     0,21    0,27     0,32     0,37
            2.3.4                       75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            2.3.5
            2.3.6
            3.1.1  Non alloyed tool steel
            3.2.1  Tool steel for cold working
            3.2.2
            3.2.3
            3.2.4
            3.2.5
            3.3.1  Tool steel for hot working
            3.3.2
            3.3.3
            3.3.4
            3.3.5
            3.5.1  Hardened tool steel < 55 HRC
            3.5.2              55–58 HRC
            3.5.3              58–60 HRC
            3.5.4              60–62 HRC
            3.5.5              62–64 HRC
            4.1.1  Stainless steel      75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            4.1.2                       65     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            4.1.3                       70     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            4.1.4                       70     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            4.1.5                       75     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            4.2.1  Heat-resistant alloys
            4.2.2
            4.2.3
            4.2.4
            5.1.1  Conventional cast steel  80  0,045   0,06    0,09     0,16     0,22    0,28     0,34     0,38
            5.1.2                       75     0,04    0,053    0,08     0,15     0,21    0,27     0,32     0,37
            5.1.3                       60    0,025    0,033    0,05     0,08     0,12    0,15     0,2      0,25
            5.2.1  Stainless cast steel  70   0,025    0,033    0,05     0,08     0,12    0,15     0,2      0,25
            5.2.2                       65    0,025    0,033    0,05     0,08     0,12    0,15     0,2      0,25
            6.1.1  Cast iron with lamellar graphite  105  0,063  0,083  0,125  0,2  0,25  0,35     0,4      0,46
            6.1.2                       85    0,063    0,083    0,125    0,2      0,25    0,35     0,4      0,46
            6.1.3                       75    0,063    0,083    0,125    0,2      0,25    0,35     0,4      0,46
            6.1.4                       70     0,025   0,033    0,05     0,08     0,12    0,15     0,2      0,25
            6.2.1  Spheroidal cast iron   85   0,038    0,05    0,075    0,125   0,175    0,225    0,3     0,375
            6.2.2                       80     0,038    0,05    0,075    0,125   0,175    0,225    0,3     0,375
            6.2.3                       60     0,038    0,05    0,075    0,11    0,125    0,15     0,175    0,2
            6.3.1  GTW (white malleable cast iron)  85  0,038  0,05  0,075  0,125  0,175  0,225    0,3     0,375
            6.3.2                       80     0,038    0,05    0,075    0,125   0,175    0,225    0,3     0,375
            6.4.1  GTS (black malleable cast iron)  85  0,038  0,05  0,075  0,125  0,175  0,225    0,3     0,375
            6.4.2                       80     0,038    0,05    0,075    0,125   0,175    0,225    0,3     0,375
            7.1.1  Aluminium
            7.1.2
            7.1.3
            7.1.4
            7.1.5
            7.1.6
            7.2.1  Magnesium
            7.2.2
            7.3.1  Copper
            7.3.2
      Solid carbide tools / Drilling  7.3.5  CuZn (brass)  30  0,01  0,013  0,02  0,04  0,08  0,12  0,16    0,2
            7.3.3
            7.3.4
















            7.3.6




            7.4.1











            7.4.2

            7.5.1








                   CuSn (bronze)

            7.5.2









            7.6.1






                   CuAlFe (Ampco)

            7.6.2







            7.8.1
                   Titanium
                                                                                                            0,2
                                                                         0,04
                                                                0,02
                                                                                  0,08
                                                       0,013
                                               0,01
                                                                                          0,12
                                        25
            7.8.2
                                                                                                   0,16
                                                                                                            0,2
                                                                                  0,08
                                                       0,013
                                                                         0,04
                                                                0,02
                                                                                          0,12
                                                                                                   0,16
            7.8.3
                                               0,01
                                        25
