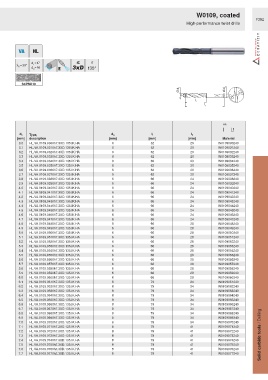

Page 1379 - Ceratizit Catalog

W0109, coated
F382
High-performance twist drills

σ
135°

SCPM410
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HL.VA.0109.0300h7.3XD.135.IK.HA 6 62 20 W0109030240
3.1 HL.VA.0109.0310h7.3XD.135.IK.HA 6 62 20 W0109031240
3.2 HL.VA.0109.0320h7.3XD.135.IK.HA 6 62 20 W0109032240
3.3 HL.VA.0109.0330h7.3XD.135.IK.HA 6 62 20 W0109033240
3.4 HL.VA.0109.0340h7.3XD.135.IK.HA 6 62 20 W0109034240
3.5 HL.VA.0109.0350h7.3XD.135.IK.HA 6 62 20 W0109035240
3.6 HL.VA.0109.0360h7.3XD.135.IK.HA 6 62 20 W0109036240
3.7 HL.VA.0109.0370h7.3XD.135.IK.HA 6 62 20 W0109037240
3.8 HL.VA.0109.0380h7.3XD.135.IK.HA 6 66 24 W0109038240
3.9 HL.VA.0109.0390h7.3XD.135.IK.HA 6 66 24 W0109039240
4.0 HL.VA.0109.0400h7.3XD.135.IK.HA 6 66 24 W0109040240
4.1 HL.VA.0109.0410h7.3XD.135.IK.HA 6 66 24 W0109041240
4.2 HL.VA.0109.0420h7.3XD.135.IK.HA 6 66 24 W0109042240
4.3 HL.VA.0109.0430h7.3XD.135.IK.HA 6 66 24 W0109043240
4.4 HL.VA.0109.0440h7.3XD.135.IK.HA 6 66 24 W0109044240
4.5 HL.VA.0109.0450h7.3XD.135.IK.HA 6 66 24 W0109045240
4.6 HL.VA.0109.0460h7.3XD.135.IK.HA 6 66 24 W0109046240
4.7 HL.VA.0109.0470h7.3XD.135.IK.HA 6 66 24 W0109047240
4.8 HL.VA.0109.0480h7.3XD.135.IK.HA 6 66 28 W0109048240
4.9 HL.VA.0109.0490h7.3XD.135.IK.HA 6 66 28 W0109049240
5.0 HL.VA.0109.0500h7.3XD.135.IK.HA 6 66 28 W0109050240
5.1 HL.VA.0109.0510h7.3XD.135.IK.HA 6 66 28 W0109051240
5.2 HL.VA.0109.0520h7.3XD.135.IK.HA 6 66 28 W0109052240
5.3 HL.VA.0109.0530h7.3XD.135.IK.HA 6 66 28 W0109053240
5.4 HL.VA.0109.0540h7.3XD.135.IK.HA 6 66 28 W0109054240
5.5 HL.VA.0109.0550h7.3XD.135.IK.HA 6 66 28 W0109055240
5.6 HL.VA.0109.0560h7.3XD.135.IK.HA 6 66 28 W0109056240
5.7 HL.VA.0109.0570h7.3XD.135.IK.HA 6 66 28 W0109057240
5.8 HL.VA.0109.0580h7.3XD.135.IK.HA 6 66 28 W0109058240
5.9 HL.VA.0109.0590h7.3XD.135.IK.HA 6 66 28 W0109059240
6.0 HL.VA.0109.0600h7.3XD.135.IK.HA 6 66 28 W0109060240
6.1 HL.VA.0109.0610h7.3XD.135.IK.HA 8 79 34 W0109061240
6.2 HL.VA.0109.0620h7.3XD.135.IK.HA 8 79 34 W0109062240
6.3 HL.VA.0109.0630h7.3XD.135.IK.HA 8 79 34 W0109063240
6.4 HL.VA.0109.0640h7.3XD.135.IK.HA 8 79 34 W0109064240
6.5 HL.VA.0109.0650h7.3XD.135.IK.HA 8 79 34 W0109065240
6.6 HL.VA.0109.0660h7.3XD.135.IK.HA 8 79 34 W0109066240
6.7 HL.VA.0109.0670h7.3XD.135.IK.HA 8 79 34 W0109067240
6.8 HL.VA.0109.0680h7.3XD.135.IK.HA 8 79 34 W0109068240
6.9 HL.VA.0109.0690h7.3XD.135.IK.HA 8 79 34 W0109069240
7.0 HL.VA.0109.0700h7.3XD.135.IK.HA 8 79 34 W0109070240
7.1 HL.VA.0109.0710h7.3XD.135.IK.HA 8 79 41 W0109071240
7.2 HL.VA.0109.0720h7.3XD.135.IK.HA 8 79 41 W0109072240
7.3 HL.VA.0109.0730h7.3XD.135.IK.HA 8 79 41 W0109073240 Solid carbide tools / Drilling
7.4 HL.VA.0109.0740h7.3XD.135.IK.HA 8 79 41 W0109074240
7.5 HL.VA.0109.0750h7.3XD.135.IK.HA 8 79 41 W0109075240
7.6 HL.VA.0109.0760h7.3XD.135.IK.HA 8 79 41 W0109076240
7.7 HL.VA.0109.0770h7.3XD.135.IK.HA 8 79 41 W0109077240
