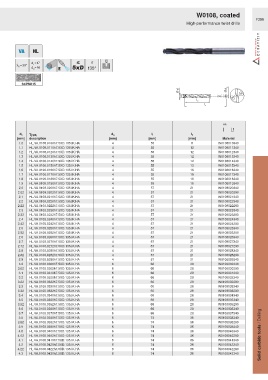

Page 1383 - Ceratizit Catalog

W0108, coated
F386
High-performance twist drills

σ
135°

SCPM415
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
1.0 HL.VA.0108.0100h7.5XD.135.IK.HA 4 55 8 W0108010340
1.1 HL.VA.0108.0110h7.5XD.135.IK.HA 4 55 12 W0108011340
1.2 HL.VA.0108.0120h7.5XD.135.IK.HA 4 55 12 W0108012340
1.3 HL.VA.0108.0130h7.5XD.135.IK.HA 4 55 12 W0108013340
1.4 HL.VA.0108.0140h7.5XD.135.IK.HA 4 55 12 W0108014340
1.5 HL.VA.0108.0150h7.5XD.135.IK.HA 4 55 12 W0108015340
1.6 HL.VA.0108.0160h7.5XD.135.IK.HA 4 55 16 W0108016340
1.7 HL.VA.0108.0170h7.5XD.135.IK.HA 4 55 16 W0108017340
1.8 HL.VA.0108.0180h7.5XD.135.IK.HA 4 55 16 W0108018340
1.9 HL.VA.0108.0190h7.5XD.135.IK.HA 4 55 16 W0108019340
2.0 HL.VA.0108.0200h7.5XD.135.IK.HA 4 57 21 W0108020340
2.02 HL.VA.0108.0202h7.5XD.135.IK.HA 4 57 21 W0108020290
2.1 HL.VA.0108.0210h7.5XD.135.IK.HA 4 57 21 W0108021340
2.2 HL.VA.0108.0220h7.5XD.135.IK.HA 4 57 21 W0108022340
2.22 HL.VA.0108.0222h7.5XD.135.IK.HA 4 57 21 W0108022290
2.3 HL.VA.0108.0230h7.5XD.135.IK.HA 4 57 21 W0108023340
2.32 HL.VA.0108.0232h7.5XD.135.IK.HA 4 57 21 W0108023290
2.4 HL.VA.0108.0240h7.5XD.135.IK.HA 4 57 21 W0108024340
2.42 HL.VA.0108.0242h7.5XD.135.IK.HA 4 57 21 W0108024290
2.5 HL.VA.0108.0250h7.5XD.135.IK.HA 4 57 21 W0108025340
2.52 HL.VA.0108.0252h7.5XD.135.IK.HA 4 57 21 W0108025290
2.6 HL.VA.0108.0260h7.5XD.135.IK.HA 4 57 21 W0108026340
2.7 HL.VA.0108.0270h7.5XD.135.IK.HA 4 57 21 W0108027340
2.72 HL.VA.0108.0272h7.5XD.135.IK.HA 4 57 21 W0108027290
2.8 HL.VA.0108.0280h7.5XD.135.IK.HA 4 57 21 W0108028340
2.82 HL.VA.0108.0282h7.5XD.135.IK.HA 4 57 21 W0108028290
2.9 HL.VA.0108.0290h7.5XD.135.IK.HA 4 57 21 W0108029340
3.0 HL.VA.0108.0300h7.5XD.135.IK.HA 6 66 28 W0108030340
3.02 HL.VA.0108.0302h7.5XD.135.IK.HA 6 66 28 W0108030290
3.1 HL.VA.0108.0310h7.5XD.135.IK.HA 6 66 28 W0108031340
3.2 HL.VA.0108.0320h7.5XD.135.IK.HA 6 66 28 W0108032340
3.22 HL.VA.0108.0322h7.5XD.135.IK.HA 6 66 28 W0108032290
3.3 HL.VA.0108.0330h7.5XD.135.IK.HA 6 66 28 W0108033340
3.32 HL.VA.0108.0332h7.5XD.135.IK.HA 6 66 28 W0108033290
3.4 HL.VA.0108.0340h7.5XD.135.IK.HA 6 66 28 W0108034340
3.5 HL.VA.0108.0350h7.5XD.135.IK.HA 6 66 28 W0108035340
3.52 HL.VA.0108.0352h7.5XD.135.IK.HA 6 66 28 W0108035290
3.6 HL.VA.0108.0360h7.5XD.135.IK.HA 6 66 28 W0108036340
3.7 HL.VA.0108.0370h7.5XD.135.IK.HA 6 66 28 W0108037340
3.8 HL.VA.0108.0380h7.5XD.135.IK.HA 6 74 36 W0108038340
3.82 HL.VA.0108.0382h7.5XD.135.IK.HA 6 74 36 W0108038290
3.9 HL.VA.0108.0390h7.5XD.135.IK.HA 6 74 36 W0108039340
4.0 HL.VA.0108.0400h7.5XD.135.IK.HA 6 74 36 W0108040340
4.02 HL.VA.0108.0402h7.5XD.135.IK.HA 6 74 36 W0108040290 Solid carbide tools / Drilling
4.1 HL.VA.0108.0410h7.5XD.135.IK.HA 6 74 36 W0108041340
4.2 HL.VA.0108.0420h7.5XD.135.IK.HA 6 74 36 W0108042340
4.22 HL.VA.0108.0422h7.5XD.135.IK.HA 6 74 36 W0108042290
4.3 HL.VA.0108.0430h7.5XD.135.IK.HA 6 74 36 W0108043340
