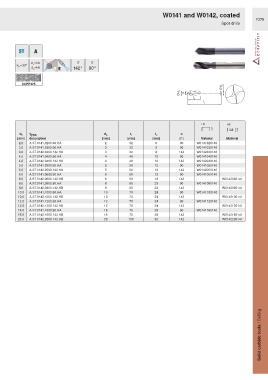

Page 1375 - Ceratizit Catalog

W0141 and W0142, coated
F378
Spot drills

σ σ
142° 90°

SCPP425
Ø d A
Ø d 1 σ
l
2
l
1

HA HB

d 1 Type, d A l 1 l 2 σ
[mm] description [mm] [mm] [mm] [°] Material Material
2.0 A.ST.0141.0200.90.HA 2 32 6 90 W0141020140
3.0 A.ST.0141.0300.90.HA 3 32 8 90 W0141030140
3.0 A.ST.0142.0300.142.HA 3 32 8 142 W0142030140
4.0 A.ST.0141.0400.90.HA 4 40 10 90 W0141040140
4.0 A.ST.0142.0400.142.HA 4 40 10 142 W0142040140
5.0 A.ST.0141.0500.90.HA 5 50 13 90 W0141050140
5.0 A.ST.0142.0500.142.HA 5 50 13 142 W0142050140
6.0 A.ST.0141.0600.90.HA 6 50 13 90 W0141060140
6.0 A.ST.0142.0600.142.HB 6 50 13 142 W0142060141
8.0 A.ST.0141.0800.90.HA 8 60 23 90 W0141080140
8.0 A.ST.0142.0800.142.HB 8 60 23 142 W0142080141
10.0 A.ST.0141.1000.90.HA 10 70 24 90 W0141100140
10.0 A.ST.0142.1000.142.HB 10 70 24 142 W0142100141
12.0 A.ST.0141.1200.90.HA 12 70 24 90 W0141120140
12.0 A.ST.0142.1200.142.HB 12 70 24 142 W0142120141
16.0 A.ST.0141.1600.90.HA 16 75 29 90 W0141160140
16.0 A.ST.0142.1600.142.HB 16 75 29 142 W0142160141
20.0 A.ST.0142.2000.142.HB 20 100 35 142 W0142200141

Solid carbide tools / Drilling
